Bendpak HD-9ST 9,000 Lbs Narrow Width 4-Post Lift

BendPak

SKU:
BP-5175860
Condition:
New
Availability:
Free Shipping is valid for commercial locations within the 48 Continental U.S. only. We will contact you if Tax and shipping surcharges apply.
Shipping:
Free Shipping
  • Bendpak Plastic Drip Trays Sets Of Two
  • Bendpak DP-30 18 Gallon Rolling Drain Pan
  • Bendpak Caster Kit Portable Wheel Kit For HD-7 & HD-9 Series
  • Bendpak RJ45W, 4,500 Lbs Rolling Bridge Jack
Total Price:
MSRP: $5,874.00
$4,895.00
(You save  $979.00 )
Adding to cart… The item has been added

jmc-shipping-button.pngBendPak HD-9ST 9,000-lb. Capacity Narrow Width 4 Post Lift

Some garages are just a bit too cozy for a standard-width four-post lift. The trick is to find a smaller-footprint lift that won’t sacrifice functionality. The HD-9ST is perfect for small garages and spaces that are already filled to near-capacity. Its narrow width is designed for spaces and service bays that need to fit more lift in less space.

A Slim, Safe and Certified Lift

Some garages are just a bit too cozy for a standard-width four-post lift. The trick is to find a smaller-footprint lift that won’t sacrifice functionality. The HD-9ST is perfect for small garages and spaces that are already filled to near-capacity. Its narrow width is designed for spaces and service bays that need to fit more lift in less space.

A slim lift is a smart choice for owners more compact vehicles. Because the HD-9ST features an open center, it doubles as both narrow parking lift and maintenance lift. This makes it the ideal four-post lift for wrenchers with a limited amount of space. In addition to the narrow design, the columns are only 88” high, so it’s low-profile too. The runways raise to a max height of 75”, so the HD-9ST fits easily in low ceilings yet doesn’t sacrifice lifting height. Ample clearance underneath ensures that full-grown men and women over 6-feet tall will have no problem performing oil changes, comfortably adjusting transmission jacks and removing and replacing exhaust systems. Other lifts may sacrifice lifting height as they reduce their overall widths to accommodate smaller vehicles, but not this one. This is one four-post lift that’s every bit as comfortable to use as its standard-width and super-wide sister models in the HD-9 series.

The HD-9ST may be smaller, but it’s not weaker than other designs, nor is it a hobby lift. In fact, this car lift is fully ALI certified. It’s used every day in professional shops around the world, and many motorists prefer it to the standard-length HD-9 simply because it leaves more room in their garage for tools and equipment.

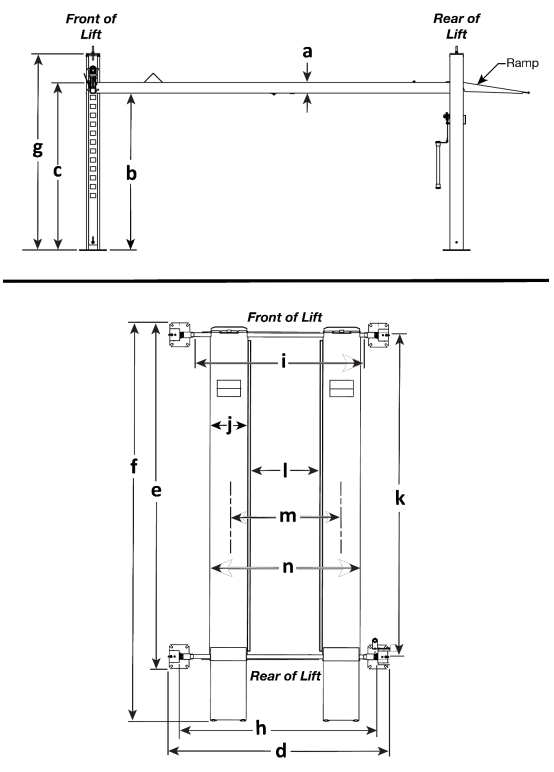

Bendpak HD-9SW Floorplan

Features

  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Two different ramp lengths to choose from
  • Narrow width for space efficiency
  • Freestanding design
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
  • ETL Approved

Specifications:

Capacity
Lifting Capacity*  9000 lbs. (4082 kg)
*Max Capacity / Front Axle  4500 lbs. (2041 kg)
*Max Capacity / Rear Axle  4500 lbs. (2041 kg)
*Max Capacity / Rear Axle  4500 lbs. (2041 kg)
A - Min. Runway Height:  4,5" (114 mm)
B - Max. Rise:  70" (1778 mm)
C - Max. Lifting Height:  74,5" (1892 mm)
Time to Full Rise:  45 seconds
Outside Dimensions
D - Overall Width:  100,25" (2546 mm)
E - Outside Length:  174" (4420 mm)
F - Overall Length:  200" (5080 mm)
G - Height of Columns:  88" (2235 mm)
Inside Dimensions
H - Width Between Columns:  89,75" (2280 mm)
I - Drive-Thru Clearance:  76,5" (1943 mm)
Runways
J - Runway Width:  19" (483 mm)
K - Length of Runways:  164" (4166 mm)
L - Width Between Runways:  37,5" (953 mm)
M - Runway Centerline:  56,5" (1435 mm)
N - Outside Edge of Runways:  75,5" (1918 mm)
Minimum Wheelbase
Rated Capacity:  115" (2921 mm)
75% Capacity:  100" (2540 mm)
50% Capacity:  85" (2159 mm)
25% Capacity:  70" (1778 mm)
Locking
Locking Positions:  12
Lock Spacing:  Every 4" (102 mm)
Power Unit
Motor:  220 VAC / 60 Hz / 1Ph
Noise:  45 dB
Shipping
Weight:  1,682 lbs. (762.9 kg)
Dimensions:
 166" x 22" x 42" (4,203 mm x 558
 mm x 1,066 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to function. It is solely the responsibility of the end-user to provide, install and maintain the air supply.


Downloads

Manual




**Bendpak charges taxes to California**
***It is the buyer's responsibility to unload the freight at their location.
