CEMB ER72TD Autoadaptive OPB LED Manual Clamping Wheel Balancer

Brand:
CEMB
SKU:
ER72TD
Condition:
New

Factory Shipped.

Total Price:
$14,928.41 $9,046.12
(You save $5,882.29)
Free Shipping
Free Shipping

Factory Shipped.

The CEMB Digital Wheel Balancer is made especially for busy tire shops. This new series has the latest technology in wheel balancing, “Spotter” lasers that actually pinpoints the exact location of stick-on wheel weights. This is done with little or no chance of operator error when entering dimensions (major cause of check spin errors).
Full Time Static on screen for a perfect balance. The automatic arm measures diameters up to 30″, automatic entry of the dimensions with width sonar 3D. It comes fully assembled.

Features

  • One Plane Balancing (OPB)
  • AutoAdaptive™ Mode
  • Automatic Approach
  • Automatic Gauge (3D)
  • Laser Spotter
  • Manual Locking
  • Width Sonar
  • Electromagnetic Brake



 AutoAdaptive Icon

One Plane Balancing   Spotter Icon
AutoAdaptive One Plane Balancing Laser Spotter
For Each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel. Enables to eliminate the static and dynamic unbalance by means of a single counterweight, indicating its exact application point on the inner side of the rim. The laser spotter pinpoints the exact position for stick-on weights application inside the rim.



 Manual Clamping Icon



 Automatic Approach Icon



Electric Brake

Manual Locking  Automatic Approach Electric Brake
Accurate wheel centering by means of a quick locknut Wheel automatically approaches within 15° of weight placement position. Wheel locking system that locks the wheel in the correct position by means of an electromagnetic brake.

Technical Specifications

 Power Supply  220V, 1ph
 Wheel Clamping Type  Manual / Pneumatic
 Max. Rim Diameter  30" (765 mm)
 Max. Rim Width  20" (510 mm)
 Max. Tire Diameter  42" (1067 mm)
 Max. Wheel Weight  165 lbs. (75 kg)
 Shipping Weight  300 lbs. (136 kg)

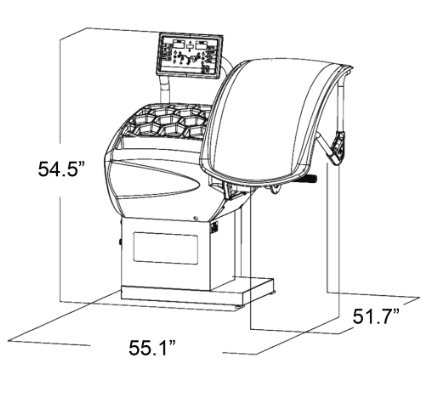

 Dimensions



Standard Parts and Accessories


Manual Locking Kit A1 A2 A3 A4 Rim width Gauge Weight Hammer
41FF83148   40FF88351 40FF43715  40FF43716  40FF61043   46FC77653 301400425



Optional Parts and Accessories

Pro Kit (PROKIT)

Pin Plate Adaptor 2-Piece Truck Cone Kit
Manual - 41FFA6478 Pneumatic - 41FFA5298 41FF86174



Pro Plus Kit (PROPLUS)

Pin Plate Adaptor 2-Piece Truck Cone Kit Pneumatic Wheel Lift Accessory Rack
Manual - 41FFA6478 Pneumatic - 41FFA5298 41FF86174 46FL85170 41FF03151





 Download

Sell Sheet

Catalog

Warranty Information

  1. By finalizing the purchase agreement, the user confirms that the goods are ordered for purposes related to their business or professional activity.
  2. The duration of the contractual warranty of CEMB products to protect against any construction or operating defects and material defects is 12 (twelve) months from the date of delivery, unless otherwise agreed.
  3. CEMB will replace or repair the products or items supplied, or will totally or partially refund the price, if, despite correct and diligent use by the customer, defects are found not attributable to the installation or incorrect use of the product, which must be asserted against CEMB no later than 12 (twelve) months from the delivery date. Any defects that emerge during use in the first 12 (twelve) months must be immediately notified to CEMB.
  4. The customer undertakes to provide all the evidence regarding the reality of the defects or anomalies found. Likewise, the customer must provide CEMB with all the means to proceed to the ascertainment of such defects and to be able to remedy them. To ensure this latter purpose, the customer will refrain from his own intervention or from any third party intervention.
  5. The disputed goods must be returned to CEMB within 2 (two) weeks from the notification and must be properly packaged, with shipment at customer’s care and in accordance with the special instructions that CEMB may have given at the time of supply or subsequently. The items, or components or parts of them returned must be accompanied by a note stating the description of the defect, as well as any other information indicated or requested by CEMB at the time of supply or subsequently.
  6. The warranty does not apply to replacements or repairs that result from normal wear and tear of the products, from deterioration or accidents caused by negligence, or for use of the products other than that for which the devices are intended. In the same way, the warranty does not apply in the event of inadequate intervention by the customer or user on the products delivered.
  7. The repair, modification or replacement of parts during the warranty period cannot have the effect of extending the warranty period of the products. All other actions and claims covered by the warranty are excluded, especially those aimed at repairing direct or indirect damage caused to people or other objects other than the products delivered, as well as reimbursement of any loss of earnings.
  8. CEMB reserves the right to perform a detailed expert analysis of the products returned under warranty to determine the causes of the defect and communicate them to the customer before proceeding with any replacements, repairs, or refund calculation.
  9. Should the customer request a search for the origin of a fault in CEMB’s goods, to be carried out at its premises, the applicable expenses (travel, etc.) will be charged to the customer after a detailed estimate accepted by the latter before operation, and all this without CEMB being obliged to produce results.
  10. All products or articles or parts thereof replaced by CEMB will become the exclusive property of CEMB. This warranty replaces any warranty or other provision established by law regarding the quality or suitability of the products for specific uses, except for those provisions which by law cannot be waived.
  11. The liability of CEMB for all possible causes is limited to a sum which, in the absence of a different stipulation of the agreement, is limited to the contractual amount of the supply that gives rise to the complaint. The customer agrees to waive any recourse by his/her insurance companies against CEMB and the insurance companies of that company.
