RGI VECTOR-T SEMI-DOWN DRAFT CORNER TOWER EXHAUST PREP STATION
 |
 |
 |

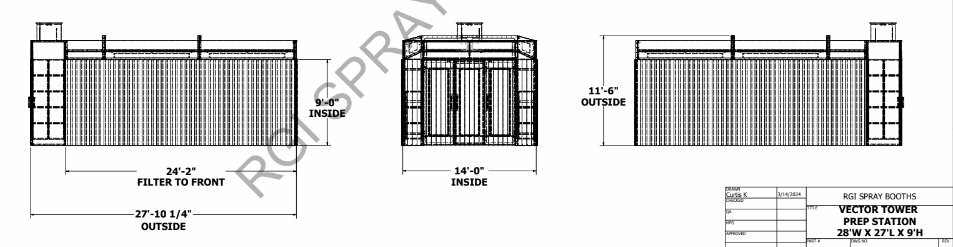

Specifications
- 24' Model
- Outside Dim. 14'4" Wide x 24'-4" Long x 11'-6" High
- Work Inside Dim. 14' Wide x 22’ 6”' Long x 9' High
- 27' Model
- Outside Dim. 14'4" Wide x 27'-4" Long x 11'-6" High
- Work Inside Dim. 14' Wide x 25’6”' Long x 9' High
- 30' Model
- Outside Dim. 14'4" Wide x 30'-4" Long x 11'-6" High
- Work Inside Dim. 14' Wide x 28’6’' Long x 9' High
General Specifications
Air Flow Description: Fresh air enters the booth through the top filters plenum of the cabin, and travels down the cabin evenly into the back wall-centered exhaust plenum providing a safe environment and a supreme air flow for a great paint job.
Construction: All of our single wall prep station are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Single Wall. Better air flow, lighting, and strength because of gabled roof design.
TOP-Designed to meet the requirements of EPA’s 6H Paint Rule (40CFR63 Subpart HHHHHH), RGI’ Prep station provides a controlled environment for sanding, priming and limited painting. When priming and painting, the amount of material sprayed shall not exceed one gallon in an eight-hour period.
The prep station is available in multiple length, width and height options to suit any shop layout. Structure can be freestanding, with structural steel supports, or suspended from your shop ceiling
Detail Spec Included
- 18 gauge prime quality galvanized Air-tight steel panels
- Auto bay curtain with hardware and tracking for prep area.
- 2-Dim: 27' long x 9' high side wall 1-Dim: 14' long x 9' high side wall
- Note: prep area are a must have from EPA rules 2011
- LED (Standard) 4’ Long, 4 tube LED T8 light fixtures 120v.
- (1) 30" Dia. Tube-axial fan with aluminum spark-proof blades belt drive exhaust fan
- (1) 3hp 3ph Belt-drive motor 208-230/460v. 60 hz
- (1) Mark Dwyer manometer kit defines air flow pressure
- (14) Exhaust filters w/ (14) exhaust filter grids
- (2) Intake filter pads 37” x 117” x 2” Ceiling Diffusion Media is a 1” thick, scrim backed
- (1) Hardware set for assembly; nuts & bolts, screws
Optional Product
- Powder coat ultra white inside and out of the spray booth. cover all wall panels, doors frame, floor channels and ceiling panels.
- Controls for spray booth, mag start for motor with on and off switch and reset. Interlock valve with door limit switches for on and off on spray cycle
- 30'' Ducting kit for spray booth exhaust system. (2) Plain duct, (1) Service door duct, (1) Flashing for roof and (1) damper cap
Downloads
All paint spray booths manufactured by RGI Mfg. Co. (RGI) are warranted by RGI, against defects in workmanship for materials under normal use for one year after the date of purchase from RGI. Any part which is determined by RGI to be defective in material or workmanship and is returned to RGI, shipping cost prepaid, will be, as the exclusive remedy, repaired or replaced at RGI’s option.
LIMITATIONS OF LIABILITY
Any liability of consequential and incidental damages is expressly disclaimed. RGI’s liability in all events is limited to, and shall not exceed, the replacement price of the part.
PRODUCT SUITABILITY
All states and localities have codes and regulations governing the construction, installation and/or use of paint spray booths, which may be interpreted differently from those in neighboring areas. While RGI attempts to assure that it’s spray booths comply with such codes, it cannot guarantee compliance, and cannot be responsible for how the spraybooth is installed or used. Before the purchase and use of a spray booth, please review the spray booth application, and national and local codes and regulations, and be sure that the product, installation and use comply with them.
FREIGHT LOSS OR DAMAGE POLICY
Unless otherwise specified, RGI accepts no responsibility for loss or damages to products shipped from RGI unless said products are shipped freight prepaid by RGI. Exception: If it is determined by RGI that loss or damage occurred as a result of negligence on the part of RGI, RGI will replace the lost or damaged articles. If such a determination is made by RGI, replacement of lost or damaged articles will occur only after receipt of a written request, from the purchaser.
