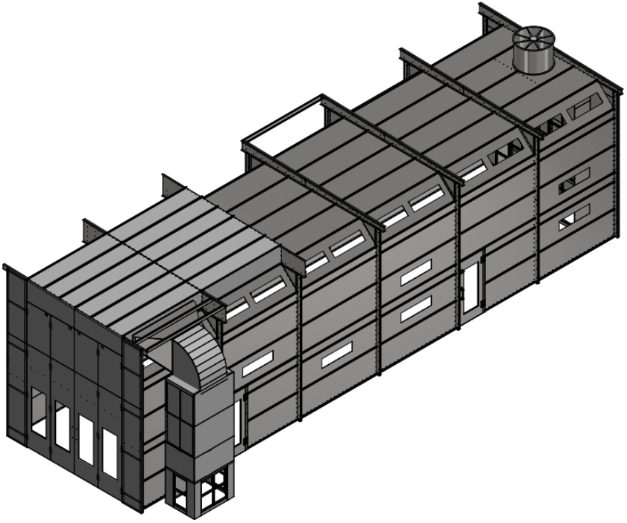

RGI VECTOR CARGO Truck Spray Booth
The Vector Cargo pulls clean air from the upper ceiling through a filter bank located on rear-center exhaust plenum.
CODE COMPLIANCE: RGI manufactures and designs paint booths to meet applicable industry codes and standards. Please be aware that local requirements may vary from national codes. RGI recommends consulting local authorities before purchasing paint booths.
- Reference NFPA 33 and Chapter 24 of the International Fire Code (IFC) for spray applications using flammable and combustible materials
- Reference NFPA 86 and Chapter 30 of the IFC for curing and drying applications
- Many components and product lines are ETL and ETL-C listed. The ETL or ETL-C mark is proof of compliance with North American safety standards, including UL, NFPA, OSHA and more
- A UL or CUL listing verifies that Underwriters Laboratories has tested RGI’ product and determined that it meets their stringent safety and performance requirements
 |
 |
 |
Specifications (increments every 5' available)
- 40' Model
- Outside Dim. 16'4" Wide x 40'-4" Long x 17'-6" High
- Work Inside Dim. 16' Wide x 38’ 6”' Long x 16' High
- 45' Model
- Outside Dim. 16'4" Wide x 45'-4" Long x 17'-6" High
- Work Inside Dim. 16' Wide x 43’ 6”' Long x 16' High
- 50' Model
- Outside Dim. 16'4" Wide x 50'-4" Long x 17'-6" High
- Work Inside Dim. 16' Wide x 48’ 6”' Long x 16' High
General Specifications

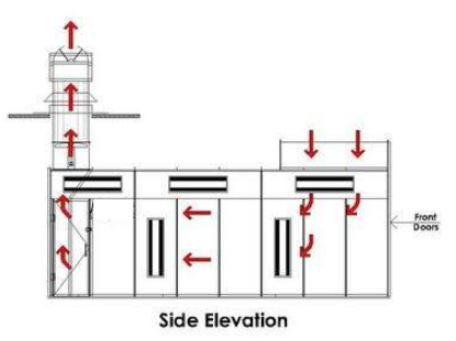

Air Flow Description: Fresh air enters the booth through the top filters plenum of the cabin, and travels down the cabin evenly into the back wall centered exhaust plenum providing a safe environment and a supreme air flow for a great paint job.
Construction: All of our single wall booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Single Wall. Better air flow, lighting, and strength because of gabled roof design
Top-Quality Hardware: RGI uses high-quality hardware — including heavy-duty latches, long-lasting brass bushings, durable hollow rubber seals and sturdy handles — to ensure ease of use and many years of reliable service. Hinges and latches stay secured and are fully adjustable for a perfect fit. Our weld-free designs prevent against weak points and corrosion, making for a sturdy, long-lasting booth
Detail Spec Included
- 18 gauge prime quality galvanized Air-tight steel panels
- (1) Set of DOUBLE WALL TRI-FOLD with observation windows, opening Dim. 12'x14'
- (1) Side access man door - Dim. 3'x7' with observation windows
- LED (standard) 8’ Long, 4 tube LED T8 light fixtures 120v.
- (1) 34" Dia. Tube-axial fan with aluminum spark-proof blades belt drive exhaust fan
- (1) 5hp 3ph Belt-drive motor 208-230/460v. 60 hz
- (1) Mark Dwyer manometer kit defines air flow pressure
- (24) Exhaust filters w/ (24) exhaust filter grids
- (6) Intake filter pads 20” x 20” x 2” Diffusion Media is a 1” thick, scrim backed
- (1) Hardware set for assembly; nuts & bolts, screws, door foam seal, door latches, door handles and flat rubber for bottom of entry doors for a tight seal. Single Wall
Optional Product:
- Powder coat ultra white inside and out of the spray booth. cover all wall panels, door frames, floor channels and ceiling panels.
- Controls for spray booth, mag start for the motor with on and off switch and reset. Interlock valve with door limit switches for on and off on spray cycle
- 30'' Ducting kit for spray booth exhaust system. (2) Plain duct, (1) Service door duct, (1) Flashing for roof and (1) damper cap
- 1 Phase Upgrade
- Fire Suppression System
- Heating for your Spray Booth
