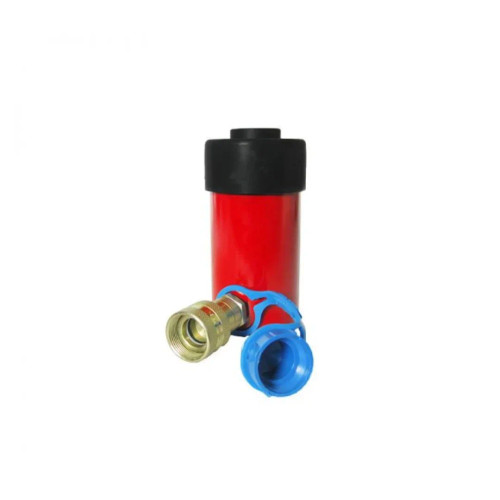

Zinko ZR-1512 15 Ton 12" Stroke Single Acting Cylinder
Features
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Specifications
| Capacity (Tons) | 15 |
|---|---|
| Stroke (in) | 12.00 |
| Oil Capacity (in³) | 37.77 |
| Cylinder Effective Area (in²) | 3.14 |
| Minimum Height (in) | 16.65 |
| Maximum Heights (in) | 28.65 |
| Outside Diameter (in) | 2.71 |
| Weight (lbs) | 28.000000 |
Download
Single Page FlyerLIMITED WARRANTY
ZINKO makes every effort to assure that its products meet high quality and durability standards and warrants to the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship as follows:
1 year limited warranty on all ZINKO products unless specified otherwise. Warranty does not apply to defects due directly to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities or to a lack of maintenance. ZINKO LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD SPECIFIED ABOVE FROM THE DATETHE PRODUCT WAS PURCHASED AT RETAIL. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES ORMERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOWLONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
In no event shall ZINKO be liable for incidental or consequential damages. The liability of ZINKO on any claim for loss or damage arising out of the sale, resale, or use of a jack or related service equipment shall in no event exceed the purchase price. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTALOR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
To take advantage of this warranty, the product or part must be return for examination, postage prepaid, to an Authorized Repair Station designated by our Ontario, California office. Proof of purchase date and explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, ZINKO will either repair or replace the product or refund the purchase price if we cannot readily and quickly provide a repair or replacement, if you are willing to accept such refund. ZINKO will return repaired product or replacement at ZINKO expense. If it is determined there is no defect, or that the defect resulted from cause not within the scope of ZINKO warranty, then the user must bear the cost of storing and returning the products. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. For service contact your local distributor.
* MODEL AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
