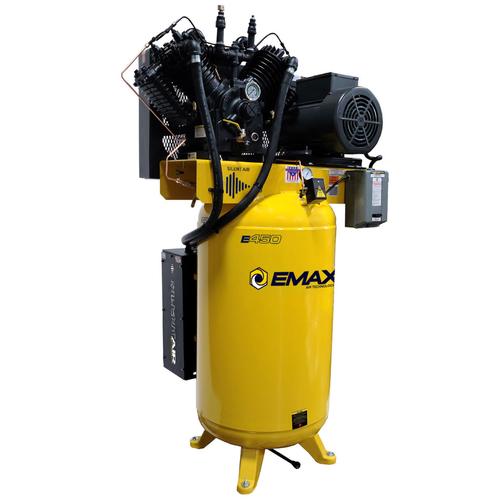

EMAX Premium 10 HP 1 PH 120 Gallon Vertical With Air Silencer-With Pressure Lube Pump
Silent Air Quiet Air Compressor
Engineered and manufactured in the U.S.A. The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%!
The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet. As a result, the piston intake noise is trapped and dissipated within the silencer structure. As a result, the piston intake noise is trapped and dissipated within the silencer structure. It also acts as a secondary filtration for cleaner air.
Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating.
Features
- Pumps are SUPER quiet in operation and built to last!.
- Solid cast iron crankcase.
- Precision balanced solid cast iron crankshaft.
- Timken-Style stainless steel roller bearings on the front and rear of the crankshaft.
- Removable 100% cast iron cylinders.
- Re-usable oil filter.
- Oil Pressure Gauge.
- Prewired magnetic starter.
- Built-in fan, head unloaders, inter-cooler and after-coolers.
- One of the lowest RPM compressor pumps on the market. That’s the Emax difference!.
- Not only do you get the big CFM output, but the lower RPM operation also reduces friction and heat buildup to extend pump life!.
- Raised pump platform design is a nice feature for keeping your oil cool within the pump.
- Low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%.
- Large 1-3/8” output shaft.
- High quality ball bearings on the front and rear of the motor shaft.
- Large starting and running capacitors.
- 15 Service Factor load. This means the motor can be pulled 15% over full load for more break horsepower.
- Dynamically balanced armature for low vibration levels.
- Automatic Belt Tensioner will allow you to adjust the tension and alignment of your belts with ease and in just minutes.
- Belt guards built right here in the USA with 13 G steel and premium grade expanded metal.
- For your safety, our belt guards are OSHA approved.
- Our air tanks are manufactured right here in the USA and are ASME code compliant in 50 states including California.
- Powder coated ASME tank 200PSI rating
- 100% brass check valves with Teflon Seating.
- 100% brass ASME safety valves.
- Automatic Tank Drain with Integrated Dual Timer will do maintenance for you automatically on the time intervals you set to ensure that the condensation is removed.
- “Continuous run” feature that maximizes performance and reduces wear on the internal components of your motor.
- For normal workloads in your shop, you can turn off the continuous run and the unit will go back to automatic start/stop operation.
- Taper lock style 2-groove pulleys (not single groove).
- We also use dual 2-groove, B-Style belts to drive our pumps.
Specifications
Motor | |
Voltage available | 230 Volt AC |
Motor RPM | 1750 |
Motor Phase | Single phase |
Magnetic Starter | Yes |
Amp Draw | 40 |
Recommended Breaker | 60 Amp |
Engine | |
HP | 10 |
Pump | |
Pump Model | APP4V1043TP |
Pump Material | Solid Cast Iron |
Pump Drive | Belt Drive |
Pump RPM | 800 |
Max PSI | 175 |
CFM @ 100 PSI | 38 |
Compressor Stage | Two Stage |
After Cooler | Yes |
Oil Type | Oil Lubricated |
Oil System | Full Pressure Lubrication |
Oil Sight Glass | Yes |
Pump Low Oil Shut-off | No |
Tank | |
Tank Size | 120 Gallon |
Tank Outlet | 1" |
Tank Drain | Timed Automatic |
Tank Orientation | Vertical |
Accessories | |
Pressure Gauge | Yes |
Air Dryer | No |
Air Filter | Yes |
Overview | |
Weight | 1020 LBS |
Dimensions LxWxH | 41" x 43" x 78" |
Power Type | Electric |
Shipping Length | 48" |
Shipping Width | 46" |
Shipping Height | 88" |
Shipping Weight | 1100 LBS |
UPC | 815002014739 |
Certifications | CSA, ASME,ETL |
