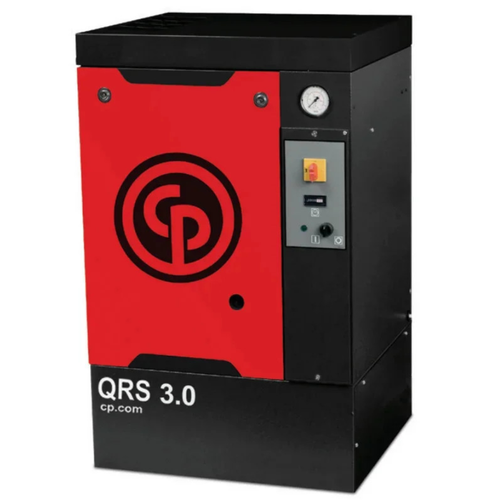

Chicago Pneumatic QRS 20 Base Mounted Screw Compressor
Oil-injected Screw Compressors
The QRS 20-30 is a rugged, rotary screw compressor that combines stealth with superior performance. Ideal for automotive and light industrial applications, the QRS is engineered and built to support the most demanding requirements.
QRS compressors run at a lower RPM's. This means it can run indefinitely, non-stop, 24 hours a day. Super quiet because the helical screws don't actually touch one another. A huge benefit of rotary screw compressors is that they can be mounted close to work spaces without requiring hearing protection.
The QRS 20-30M is managed by the ES4000 basic controller, an electronic control unit programmed for energy saving operation with intelligent shutdown. The ES4000 controller makes operation very simple with warning and service alarms
Features
- Low sound enclosure
- 100-175 psig models
- Wye-Delta, reduced voltage start
- ES3000 microprocessor controller
- Continuous operating capability
- Tri-voltage, TEFC Motor
- Space saving design, <12 sq. ft.
- NEMA 1 electrical protection
- Vibration isolated assembly
- Includes discharge coalescing filter (with dryer option only)
- Permanently aligned belt drive system
ES4000 Basic Controller Features
- Icon based display with pressure and temperature settings/readings
- Running and working hours
- Service warnings
- Element outlet temperature reading
- Automatic restart after voltage failure
Specifications
| Model | QRS-20 HP | QRS-25 HP | QRS-30 HP |
| Horsepower | 20 | 25 | 30 |
| acfm @ 100 psig | 85 | 105 | 124 |
| acfm @ 125 psig | 80 | 100 | 117 |
| acfm @ 150 psig | 71 | 90 | 104 |
| acfm @ 175 psig | 68 | 78 | 91 |
| Sound Level (dBA) | 69 | 72 | 74 |
For weight and dimensions check specs sheet, page 2.
