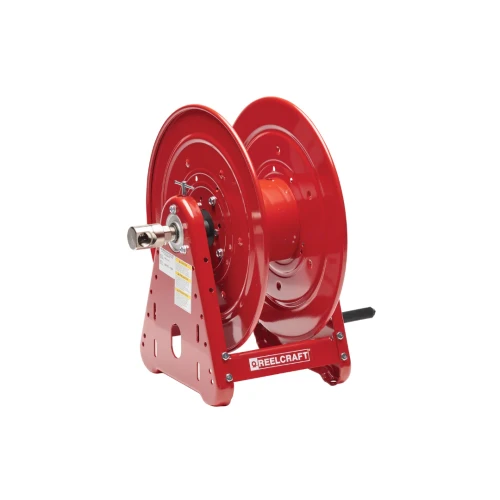

Reelcraft CA32106 M 1/2 in. x 100 ft. Premium Duty Hand Crank Hose Reel

Reelcraft

SKU:
CA32106 M
UPC:
00699567000365
Condition:
New
Availability:
Please conatct us at 800-562-4791 for pricing and availability.

Reelcraft CA32106 M 1/2 in. x 100 ft. Premium Duty Hand Crank Hose Reel

Reelcraft Series 30000 hose reels are designed for rugged, heavy-duty applications requiring long lengths of hose and large storage capacity. The all-bolted unitized construction with no welds to fatigue, full flow swivel, and heavy gauge steel frame, spool, and drum ensure the longest service life. The Series 30000 vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.

  • Hose replacement made easy – the gooseneck can easily be removed to simplify adding long lengths of hose to the reel.
  • Quality finish and corrosion resistant – Individually powder-coated components offer the maximum protection from premature corrosion.
  • Easy to add tension – The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.
  • Made in the USA

Reel Specifications and Dimensions

Weight 42 lbs
Series

30000

Hose I.D.

1/2"

Hose O.D.

0.85"

Hose Length

100'

Pressure

3000 psi

Inlet

1/2" NPT(F)

Reel Outlet

1/2" NPT(F)

Hose Included

No

Max Temperature

210 °F

UPC

699567000365


A 20.25"
B 17.75"
C 9"
D 9.75"
E 19.75"
F 6"


Fluid Path Materials

Internal Fluid Path Ductile Iron
Swivel Assembly Steel
Swivel Seal Aflas

Parts/Accessories

Pivot Base Inlet Hose Inlet Hose Swivel Assembly
600801 - 340° Pivot Base S17-260043 - 1/2 in. x 2 ft. Oil/Petroleum Fluid Hose S39-260043 - 1/2 in. x 5 ft. Oil/Petroleum Fluid Inlet Hose S602033 - Swivel Assembly
600801 - 340° Pivot Base S17-260043 - 1/2 in. x 2 ft. Oil/Petroleum Fluid Hose S39-260043 - 1/2 in. x 5 ft. Oil/Petroleum Fluid Inlet Hose S602033 - Swivel Assembly

CAD Drawings

Downloads

Catalog Page
Service Manual







Warranty Information

Limited Warranty

For 2 years (1 year for Series LD, LG, LH cord reels, and reel covers; 6 months for hose and light bulbs) from the date of shipment, products manufactured and/or sold by Reelcraft Industries, Inc. (“Reelcraft”) shall, when properly installed, maintained and operated in accordance with the recommendation of Reelcraft and the manual of instructions, be free of defects in material and workmanship at the time of shipment. In no event shall Reelcraft be obligated under this warranty or otherwise in any way whatsoever for normal wear and tear or for any product which, in Reelcraft’s sole and exclusive determination, has been subjected to accident, abuse, misapplication, improper repair or alteration, improper installation or maintenance, excessive operating conditions or for defects or failures resulting from purchaser’s specifications or designs, or otherwise caused by purchaser, including without limitation defects or failures resulting from purchaser’s manufacture, distribution, sale or promotion of its own products. A failure to use circuit breakers on electric motors, filter, lubricators on air motors, and flexible inlet connections on live hose reels will void the express warranty stated above in this paragraph. EXCEPT FOR THE EXPRESS WARRANTY STATED ABOVE IN THIS PARAGRAPH, REELCRAFT MAKES NO OTHER WARRANTIES, INCLUDING, WITHOUT LIMITATION, ANY EXPRESS OR IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER WARRANTIES, WHICH ARE HEREBY DISCLAIMED, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE.

Equipment, products, components and hoses not manufactured by Reelcraft are subject to the original manufacturer´s guarantee and warranties. Hoses carry a 6 month warranty as listed by the manufacturer. Reelcraft will assist in filing claims, but does not have any additional responsibility if original manufacturer denies warranty claim.

Product built to customer specifications and requirements or products incorporating variation from cataloged items are considered special and are not subject to cancellation or returnable for credit under any conditions.

Reelcraft reserves the right to modify or alter product, dimensions, design and construction to improve performance.

Please refer to Reelcraft’s Terms and Conditions of Sale

In the event of any conflict between this Warranty Information statement and the Terms and Conditions of Sale, the Terms and Conditions of Sale shall control.

Warranty Return Protocol

  1. Contact our customer service at 800-562-4791 and request the Return Goods Coordinator for the authorization number. Warranty claims will require the following information before a return authorization number can be issued:

    Product/model number
    Serial number
    Invoice number

    Additional information regarding a specific reason for return will be required in processing your request.
  2. If a replacement is required prior to Reelcraft receiving your return, the items being sent will be invoiced to your account until the warranty process is completed.
  3. Once given an RGA number all corresponding inquires, paperwork and boxes will require this number. Reelcraft reserves the right to refuse returns without an RGA number.
  4. Upon receipt of your warranty return and all the warranty conditions are met, a credit memo will be issued to your account and forwarded to you for your records. If there is a problem with your return a Customer Service representative will be in contact with you to discuss this further.
  5. If you desire, a warranty report is available to be forwarded or discussed with you regarding your specific return and our findings. Please contact our Return Goods Coordinator at 800-562-4791.
