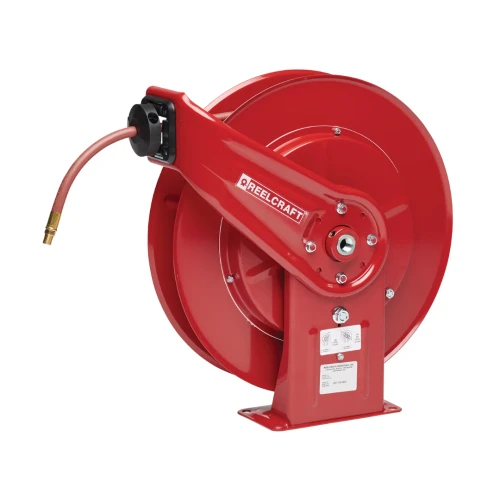

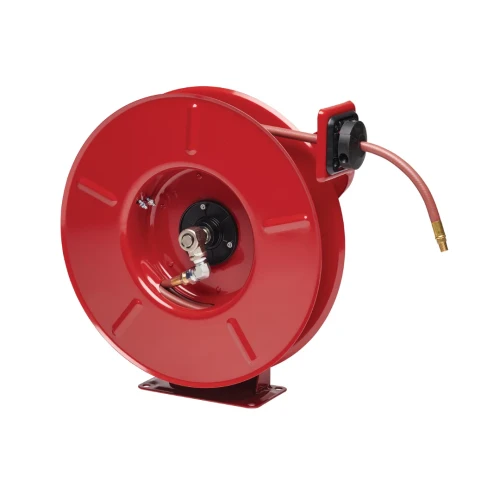

Reelcraft 5600 OLP 3/8 in. x 25 ft. Premium Duty Hose Reel

Reelcraft

SKU:
5600 OLP
UPC:
00699567000785
Condition:
New
Availability:
Please conatct us at 800-562-4791 for pricing and availability.

Reelcraft 5600 OLP 3/8 in. x 25 ft. Premium Duty Hose Reel

Series 5000 reels are durable and compact for a wide range of applications with critical space requirements.

  • Hose is plumbed into the base to eliminate the risk of undue stress on the swivel
  • The bent tube swivel design offers a smooth hose transition onto the spool
  • Swivel is nested inside the spool for protection from impact and the environment
  • The reliable speed latch allows for positive locking of the spool in two positions per rotation
  • All steel components are powder coated for maximum corrosion resistance
  • Robotically welded steel base offers maximum strength and consistent quality
  • Made in the USA

Reel Specifications and Dimensions

Weight 21 lbs
Series

5000

Hose I.D.

3/8"

Hose O.D.

0.600"

Hose Length

35'

Pressure

500 psi

Inlet

3/8" NPT(F)

Reel Outlet

1/4" NPT(F)

Hose Included

No

Max Temperature

210 °F

UPC

699567000785


A 14.375"
B 14.25"
C 9.75"
D 2.5"
E 6.125"
