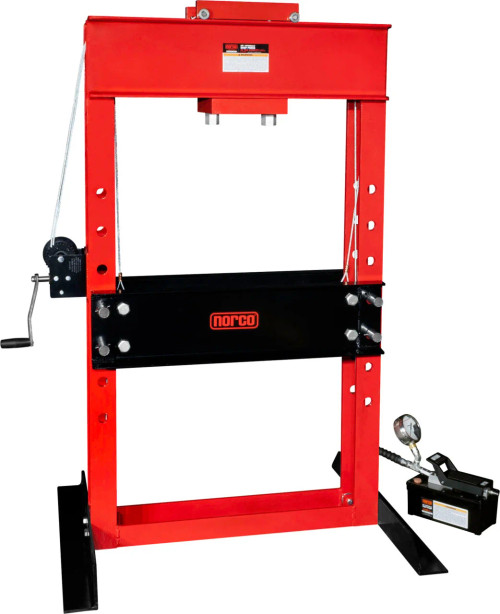

Norco 78058A 50 Ton Press with Electro/Hydraulic Pump - 6 1/4" Stroke
Intended Use
Heavy duty use in truck garages and industrial work shops. Equipped with model 910052A electro/hydraulic foot pump and model 910036A 10’ hose.
Features
- Welded frame, fully assembled, tested, and ready to put to work.
- Equipped with high speed electro/hydraulic foot pump.
- Safety overload system protects power unit.
- Hand operated winch raises and lowers press bed.
- Liquid filled gauge measures ram force in pounds and tons.
- Self-retracting ram is bearing mounted for lateral movement on head channel.
Specifications
| Dimension | |
| Ram Travel | 6.25" |
| Min. Throat Height | 7.5" |
| Max. Throat Height | 32.625" |
| Throat Width | 34.5" |
| Bed Height Adj. | 7 x 5" |
| Between Uprights | 5.625" |
| Between Bed Rails | 7.375" |
| Base Width | 50" |
| Base Depth | 40" |
| Overall Height | 72.75" |
| Shipping Weight | 814 lbs. |
Optional Accessories (Sold separately)
LIMITED LIFETIME WARRANTY
Norco Professional Lifting Equipment’s products and parts are warranted against defects in materials and workmanship for the life of the product or the part.
This warranty is expressly limited to persons who purchase Norco products or parts for the purpose of resale or use in the ordinary course of the buyer’s business.
This warranty does not cover any product or part that has been abused, misused, worn out, neglected, ground or otherwise altered, used for a purpose other than for which it was intended, or used in a manner inconsistent with any instructions regarding its use. In addition, this warranty does not cover any chains, batteries or electric motors, which are sold with Norco products. All electric motors are separately warranted by their manufacturer under the conditions stated in the separate warranty.
THIS WARRANTY IS EXCLUSIVE AND NORCO MAKES NO OTHER WARRANTY OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, WITH RESPECT TO THE SPECIFIED PRODUCTS OR PARTS MANUFACTURED AND/OR SOLD BY IT, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER. No agent, employee or representative of Norco, or any other person, has authority to bind Norco to any affirmation, representation or warranty concerning Norco products or parts except as set forth herein.
