Bendpak HDS-14LSXE 14,000-lb. Alignment Limo Extended Length Lift
The HDS-14LSXE alignment lift is designed for extended length vehicles, such as trucks and vans. The runways and overall length are extended by 30”. With runways now 229” in length, some very long vehicles can fit easily on this alignment lift. If your service bay demands these vehicle types, an extended length alignment lift from BendPak is absolutely necessary to perform long wheelbase alignments.
Features
- 14,000-lb. lifting capacity.
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
- Two runway lengths to choose.
- Heavy‐duty turn plates and integrated rear slip‐plates included.
- Multi‐position turn plate pockets.
- Automatic leveling system.
- Runways include rail‐kit for optional accessories.
- Electric/hydraulic power system.
- Single hydraulic cylinder mounted underneath runway.
- Internal “Anti-Sway” slider blocks in each column.
- Features oversize sheaves and heavy‐duty 1/2” aircraft cable.
- Rugged 1‐3/8” roller axles and oversize self‐lubricating cable sheaves.
- Multi‐position safety locks in each column with push‐button safety release.
- Optional 7,000 pound capacity bridge jacks available (Model RJ7W).

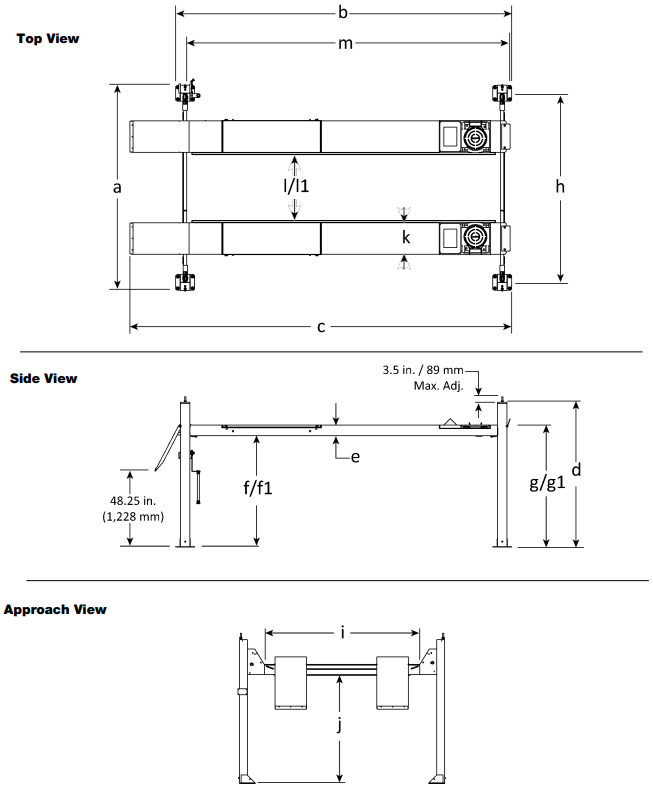

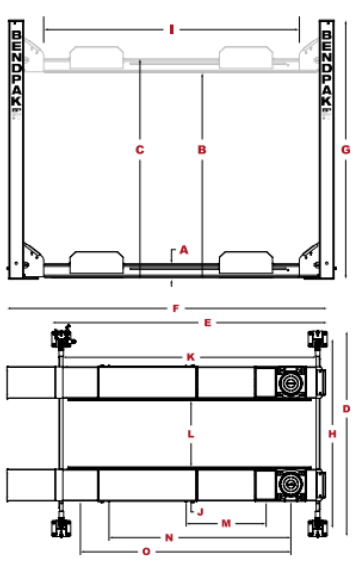

Specifications
| Model | HDS-14LSXE |
| Lifting capacity | 14,000 lbs. / 6,350 kg |
| Maximum capacity front axle | 7,000 lbs. / 3,175 kg |
| Maximum capacity rear axle | 7,000 lbs. / 3,175 kg |
| a Total width | 130 ±.125 in. / 3,304 ±3.2 mm |
| b Outside Posts length | 243 in./ 6,170 mm |
| c Total length (includes ramps) | 272 in. / 6,908 mm |
| d Post height | 92 in. / 2,338 mm |
| e Runway thickness | 6.75 in. / 171 mm |
| f Maximum rise | 70.75 in. / 1,799 mm |
| g Maximum lifting height | 77.5 in. / 1,970 mm |
| h Distance between Posts | 120 in. / 3,050 mm |
| i Runway width | 20 in. / 508 mm |
| j Width between Runways, (1) min | 37.5 in. / 953 mm |
| j Width between Runways, (1) max. | 44.75 in. / 1,137 mm |
| k Runway length | 229 in. / 19 ft. / 5,816 mm |
| l Min 4-wheel alignment (2) | 89 in. / 2,261 mm |
| m Max. 4-wheel alignment (2) | 156 in. / 3,962 mm |
| n Max. 2-wheel alignment (2) | 212 in. / 5,385 mm |
| Min. wheelbase @ rated capacity (3) | 165 in. / 4,191 mm |
| Min. wheelbase @ 75 capacity (3) | 140 in. / 3,556 mm |
| Min. wheelbase @ 50 capacity (3) | 115 in. / 2,921 mm |
| Min. wheelbase @ 25 capacity (3) | 95 in. / 2,413 mm |
| Locking positions | 15, spaced every 4 in. / 102 mm |
| Lifting time | 60 seconds |
| Motor (4) | 220 VAC, 60 Hz, 1 Ph |
1. May be limited if you are using Rolling Bridge Jacks.
2. Can vary depending on wheel size
3. The Lift’s rated capacity reduces as the vehicle’s wheelbase reduces. Reducing the Vehicle’s wheelbase brings the rear wheels closer to the center of the Runways, where there is less strength. For example, the maximum capacity of the Lift for a vehicle with a wheelbase of 100 in. is 50 percent (7,000 lbs.) of the Lift’s rated maximum capacity.
4. Special voltages available on request.
*Specifications subject to change without notice
