Bendpak HDS-14LSX Alignment Lift System 14,000 lbs.
The BendPak HDS-14LSX Alignment Lift is built for professional shops that need heavy lifting capacity, alignment precision, and daily durability in one serious four-post platform. With 14,000-lb. lifting capacity, extended runways, built-in front turn plates, and integrated rear slip plates, this alignment lift is made to handle demanding vehicles and high-volume service environments. This is the alignment lift for shops that service larger vehicles, low ground-clearance vehicles, light trucks, SUVs, and mixed customer fleets. The free-floating alignment system lets the wheels respond cleanly to adjustment, helping technicians work faster and with less resistance during suspension and alignment service.
Features
- 14,000 pound lifting capacity.
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
- Two runway lengths to choose.
- Heavy duty turn plates and integrated rear slip plates included.
- Multi-position turn plate pockets.
- Automatic leveling system.
- Multiple auto-leveling locking positions.
- Runways include rail kit for optional accessories.
- Electric / hydraulic power system.
- Single hydraulic cylinder mounted underneath runway.
- Fully enclosed lifting cables, safety locks, and sheaves.
- Internal "Anti-Sway" slider blocks in each column.
- Features oversize sheaves and heavy-duty 1/2” aircraft cable.
- Rugged 1-3/8" roller axles and oversize self-lubricating cable sheaves.
- Multi-position safety locks in each column with push button safety release.
- Runways adjust for different tread widths and feature non-skid surface.
- Optional 7,000 pound capacity bridge jacks available (Model RBJ7000).

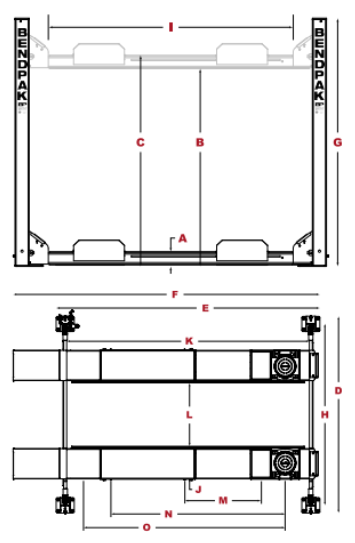

Specifications
| Lifting Capacity |
14000 lb
|
| A Min Runway Height |
7.5 in
|
| B Max Rise |
70.75 in
|
| C Max Lifting Height |
77.5 in
|
| D Width |
130 in
|
| E Outside Length |
213 in
|
| F Length |
242 in
|
| G Height |
92 in
|
| H Inside Columns |
120 in
|
| I Drive-Thru Clearance |
98 in
|
| J Runway Width |
20 in
|
| K Runway Length |
197.5 in
|
| M Min 4-Wheel Alignment |
89 in
|
| N Max 4-Wheel Alignment |
156 in
|
| O Max 2-Wheel Alignment |
182 in
|
| Rated Wheelbase Capacity |
140 in
|
| 75% Capacity |
120 in
|
| 50% Capacity |
100 in
|
| 25% Capacity |
80 in
|
| Locking Positions | 15 |
| Locking Spacing |
4 in
|
| Voltage |
208-230V / 60 Hz / 1-Phase
|
| Sound Level |
45 dB
|
| Shipping Dimensions |
25 x 209 x 33 in
|
| Shipping Weight |
3216 lb
|
| Shipping Method |
Flatbed
|
| Offload Requirement | Forklift |
*Specifications subject to change without notice.
Optional Accessories (*Sold separately)
 |
 |
 |
 |
|||
| WSA-100 | DP-30 | Rolling Jacks | Airline Kit |
