Bendpak HDS-14LSX Alignment Lift System 14,000 lbs.
The legendary, 14,000-lb. capacity HDS-14LSX alignment lift pulls double duty as both car lift and alignment system. We’ve integrated industrial-strength slip plates and turn plates right into the runways to maximize convenience. Even though the vehicle is completely secure, the wheels respond to your every adjustment with virtually no resistance. Imagine the raw lifting power of BendPak’s best combined with a free-floating, four-wheel alignment system. Your job just got easier. This model is available with optional drive-thru ramps, drip trays and rolling jacks.
Features
- 14,000 pound lifting capacity.
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
- Two runway lengths to choose.
- Heavy duty turn plates and integrated rear slip plates included.
- Multi-position turn plate pockets.
- Automatic leveling system.
- Multiple auto-leveling locking positions.
- Runways include rail kit for optional accessories.
- Electric / hydraulic power system.
- Single hydraulic cylinder mounted underneath runway.
- Fully enclosed lifting cables, safety locks, and sheaves.
- Internal "Anti-Sway" slider blocks in each column.
- Features oversize sheaves and heavy-duty 1/2” aircraft cable.
- Rugged 1-3/8" roller axles and oversize self-lubricating cable sheaves.
- Multi-position safety locks in each column with push button safety release.
- Runways adjust for different tread widths and feature non-skid surface.
- Optional 7,000 pound capacity bridge jacks available (Model RBJ7000).

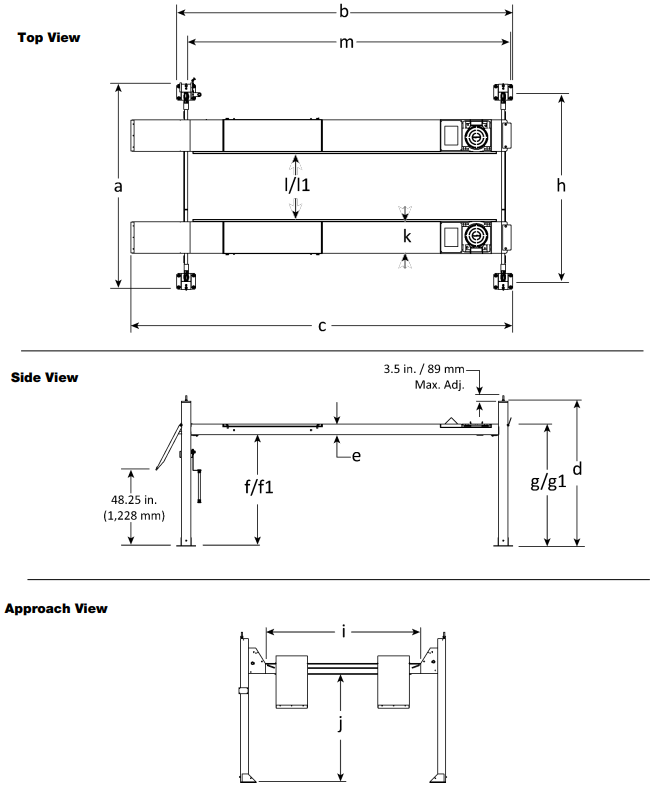

Specifications
| Model | HDS-14LSX | |
| Lifting capacity | 14,000 lbs. (6,350 kg) | |
| Maximum capacity front axle | 7,000 lbs. (3,175 kg) | |
| Maximum capacity rear axle | 7,000 lbs. (3,175 kg) | |
| A | Total width | 130.08 ±.125 in. (3,304 ±3.2 mm) |
| B | Outside Posts length | 213 in. (5,408 mm) |
| C | Total length with ramps | 242 in. (6,146 mm) |
| D | Post height | 92 in. (2,338 mm) |
| E | Runway thickness | 6.75 in. (171 mm) |
| F | Maximum rise | 6.75 in. (171 mm) |
| F1 | Maximum rise | 70.75 in. (1,799 mm) |
| G | Maximum lifting height | 77.5 in. (1,970 mm) |
| G1 | Max. Lifting Height (Top Lock) | 76 in. (1934 mm) |
| H | Distance between Posts | 120 in. (3,050 mm) |
| I | Drive-Thru (Width) | 98.25 in. (2,498 mm) |
| J | Drive-Thru (Top Lock) | 68.75 (1,747 mm) |
| K | Runway width | 20 in. (508 mm) |
| L | Width between Runways, min. | 34.5 in. (876 mm) |
| L1 | Width between Runways, max. | 41.5 in. (1,058 mm) |
| M | Runway length | 197.5 in. (5,016 mm) |
| Min 4-wheel alignment | 89 in. (2,261 mm) | |
| Max. 4-wheel alignment | 156 in. (3,962 mm) | |
| Max. 2-wheel alignment | 182 in. (4,623 mm) | |
| Min. wheelbase @ rated capacity | 140 in. (3,556 mm) | |
| Min. wheelbase @ 75% capacity | 120 in. (3,048 mm) | |
| Min. wheelbase @ 50% capacity | 100 in. (2,540 mm) | |
| Min. wheelbase @ 25% capacity | 80 in. (2,032 mm) | |
| Locking positions | 15, spaced every 4 in. (101 mm) | |
| Operating Pressure under Max. Load | 2,250 psi | |
| Lifting time | 60 seconds | |
| Regulated Air Pressure Required | 50 psi at 3 cfm minimum (Do not exceed 125 psi) | |
| Motor Power | 220 VAC / 60 Hz / 1 Ph |
*Specifications subject to change without notice.
