AMGO Hydraulics XL-9F 9000 Lbs Flush Mount Scissor Lift With Control Cabinet
The AMGO XL-9F Scissors Lift is the perfect choice for you. AMGO’s Full Rise XL-9F Flush Mount Scissors Lift works great for raising vehicles high enough to walk underneath, and can be flush mounted to the floor, maximizing limited bay space. The XL-9F is made stronger, more versatile, and easier to use and can lift 9,000lbs.
Features
• Features an electric/hydraulic power system.
• Dual synchronous cylinders are applied to assure the lifting level on both platforms.
• Platforms are designed to be extended. It can be adjusted for most of the cars.
• Mechanical locking system. The safety release is operated by air cylinders.
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.
Specifications
| Model | XL-9F |
| Lifting Capacity | 9,000 lbs (4,000 kg) |
| Lifting Time | 49 S |

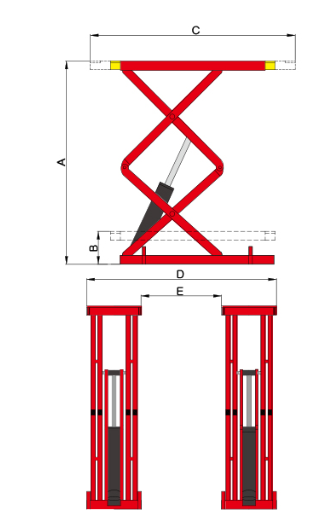

| A: Max. Lifting Height | 87 3/4″ (2230mm) |
| B: Minimum Height | 13 3/4″ (350mm) |
| C: Overall Length | 65 1/8″-80 7/8″ (1654-2054mm) |
| D: Overall Width | 74 3/4″ (1900mm) |
| E: Width Between Runways | 31 1/2″ (800mm) |
| Motor | 2.0HP,220V/60Hz,single phase |
| Gross Weight | 2,028 lbs (920 kg) |
Shipping Information
Downloads
Warranty information.
AMGO offers one of the best product warranties in the industry from the original factory commercial invoice date in the industry as follows:
1.Steel structure components(including Columns,Carriage,,Lifting Arms, Top Beam, Floor Cover,Platform,Cross Beam,Car Drive-in Ramp, Scissor,baseframe etc.) warranty for five years.
2.Hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.)warranty for two years.
3.Other parts(no including consumption parts such as rubber pad),electrical components, power unit warranty for one year.
Warranty procedure:
In order to start a warranty claim, you need fill out completely (including date of purchase) the warranty card attached below, and then send it to technical.support@amgohyd.com. If this information is not provided, the factory will not support the claim.
Click here to download the warranty card
