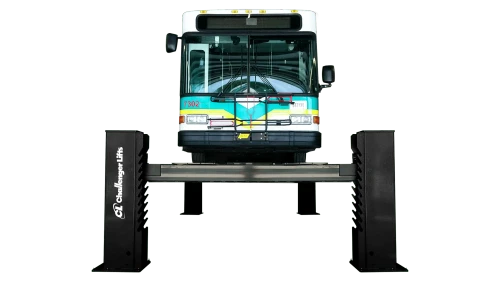

Challenger Lifts 44040E 40,000 Lbs Extended "Chain Driven" Four Post Car Lift
We designed our 40,000 lb. to 60,000 lb. lifts as an economic high capacity lifting solution in a traditional 4-post design. Diamond plated anti-skid runways and ramps provide for positive vehicle traction. The synchro-power system has dual heavy-duty lift cylinders as well as lever controls, which provide variable or synchronous power to the front and/or rear suspension of the lift, making it perfect for lifting large axle vehicles with heavier front or rear ends, including waste trucks and other construction trucks.
Features
- 30,000 lb. to 60,000 lb. capacity 4-post
- 310” to 430” max wheelbase
- 32” wide runways aid for drive-on confidence
- 10 lock positions provide maximum head room for working underneath vehicles (40K-60K)
- Single-point air actuated lock release allows technicians to disengage column locks simultaneously
- Diamond-plate approach ramps for positive vehicle traction
- Optional 15,000 lb. – 35,000 lb. rolling jacks provide complete optimization for your heavy-duty servicing needs
- Available with black columns only
Specifications
| Model Number | 44040E |
|---|---|
| Lifting Capacity | 40,000 lbs. |
| Max Wheelbase | 370” |
| Rise Height | 73” |
| Overall Length | 41' |
| Overall Width | 17’ 1.25” |
| Inside Columns | 144” |
| Between Columns | 350” |
| Height Overall | 92” |
| Height of Runways | 14” |
| Width of Runways | 32” |
| Width Between Runways | 36” - 58” |
| Width Between Runways with jacks | 43" - 53.5" |
| Motor / Voltage | 10HP, 230 - 460v Three Phase |
| Amps | 28 - 14 |
| Speed of Rise | 70 s |
| Colors Available | Black |
Additional Parts and Accessories *Sold Separately
| Part Number | Description |
| SAJ25 | Air/Hydraulic operated rolling jack, 25,000 lb. capacity, adj. width 45” - 55” |
| SAJ35 | Air/ Hydraulic operated rolling jack, 35,000 lb. capacity, adj. width 45” - 55” |
| 44RK40 | Fixed Ramp kit, 96” long for drive thru operation |
| 10267 | Oil drain pan kit, adj. width, 32 gallon |
Downloads
Other Models
| Model Number | 44030 | 44040 | 44040E | 44040X | 44050 | 44050E | 44050X | 44060 | 44060E | 44060X |
|---|---|---|---|---|---|---|---|---|---|---|
| Lifting Capacity | 30,000 lbs. | 40,000 lbs. | 40,000 lbs. | 40,000 lbs. | 50,000 lbs. | 50,000 lbs. | 50,000 lbs. | 60,000 lbs. | 60,000 lbs. | 60,000 lbs. |
| Max Wheelbase | 230" | 310” | 370” | 430” | 310” | 370” | 430” | 310” | 370” | 430” |
| Rise Height | 68" | 73” | 73” | 73” | 73” | 73” | 73” | 73” | 73” | 73” |
| Overall Length | 24' 7.5" | 36' | 41' | 46' | 36' | 41' | 46' | 36' | 41' | 46' |
| Overall Width | 12' 5.5" | 17’ 1.25” | 17’ 1.25” | 17’ 1.25” | 17’ 1.25” | 17’ 1.25” | 17’ 1.25” | 17’ 1.25” | 17’ 1.25” | 17’ 1.25” |
| Inside Columns | 132.5" | 144” | 144” | 144” | 144” | 144” | 144” | 144” | 144” | 144” |
| Between Columns | 233.75" | 290” | 350” | 410” | 290” | 350” | 410” | 290” | 350” | 410” |
| Height Overall | 92" | 92” | 92” | 92” | 92” | 92” | 92” | 92” | 92” | 92” |
| Height of Runways | 9" | 14” | 14” | 14” | 14” | 14” | 14” | 14” | 14” | 14” |
| Width of Runways | 24" | 32” | 32” | 32” | 32” | 32” | 32” | 32” | 32” | 32” |
| Width Between Runways | 54" - 75" | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” |
| Width Between Runways with jacks | NA | 43" - 53.5" | 43" - 53.5" | 43" - 53.5" | 43" - 53.5" | 43" - 53.5" | 43" - 53.5" | 43" - 53.5" | 43" - 53.5" | 43" - 53.5" |
| Motor / Voltage | 3HP, 208-230v Single Phase |
10HP, 230 - 460v Three Phase | 10HP, 230 - 460v Three Phase | 10HP, 230 - 460v Three Phase | 15HP, 230 - 460v Three Phase | 15HP, 230 - 460v Three Phase | 15HP, 230 - 460v Three Phase | 15HP, 230 - 460v Three Phase | 15HP, 230 - 460v Three Phase | 15HP, 230 - 460v Three Phase |
| Amps | 30 | 28 - 14 | 28 - 14 | 28 - 14 | 42 - 21 | 42 - 21 | 42 - 21 | 42 - 21 | 42 - 21 | 42 - 21 |
| Speed of Rise | 105 s | 70 s | 70 s | 70 s | 70 s | 70 s | 70 s | 70 s | 70 s | 70 s |
| Colors Available | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
Challenger Lifts Warranty Agreement
Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.
Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.
Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ challengerlifts.com/register.shtml
| Description | Model/Series | Labor | Functional Parts | Structural parts | Extended Warranty Available |
| CL10 | CL10 | 1 Year | 2 Years | 5 Years | Yes |
| 10K 2-Post, 9K 2-Post | LE10, SA10, CLFP9 | 1 Year | 1 Year | 5 Years | No |
| 12K, 15K, 18K 2-Post | CL12, 15000, 18000 | 1 Year | 2 Years | 5 Years | Yes |
| 8K Inground | EVW0820 | 1 Year | 2 Years | 2 years | No |
| 10K Ingrounds | EV1020 | 1 Year | 2 Years | 5 Years | Yes |
| 12K, 15K Ingrounds | EV1220, EV1520 | 1 Year | 1 Year | 5 Years | Yes |
| 14K 4-Post | 4P14 | 1 Year | 1 Year | 5 Years | No |
| 15K 4-Post | 4015 | 1 Year | 2 Years | 5 Years | No |
| 30K 4-Post Cable Drive | 4030 | 1 Year | 2 Years | 5 Years | No |
| 30K, 40K, 60K Chain Drive | 44030, 44040, 44060 | 1 Year | 1 Year | 1 Year | No |
| Rolling Jacks | RJ, SAJ | 1 Year | 1 Year | 1 Year | No |
| Mid and Short Rise | MR-6, SRM-10 | 1 Year | 1 Year | 1 Year | No |
| Scissors | SX14, DX77 | 1 Year | 1 Year | 1 Year | No |
| Mobiles | CLHM | 1 Year | 1 Year | 5 Years | No |
| Accessories | 90 days | No | |||
| Replacement Parts | 90 days | No |
Extended Warranty
An extended warranty is available for purchase for NEW CL/EV Series lifts. The Extended Warranty must be purchased within 30 days of lift invoice, and extends the Functional Parts coverage by an additional 3 years (5 Years total). Lift must be installed by and authorized Challenger installer. Extended warranty does not apply to accessories.
