Bendpak HDSO-14P 14,000 Lbs Open Front 4-Post Lift
The HDSO14P is a legendary 14,000-lb. capacity open-front four-post car lift that allows easy entry and exit beneath a vehicle. It is available with optional drive-thru ramps, drip trays and rolling jacks. The HDSO14P is an open-front four post lift that features clear entry upfront, providing easy vehicle access. A generous 14,000-lb. lifting capacity and extended runways allow you to service a wide variety of vehicles, ranging from small cars to full-size trucks.
Features
- 14,000-lb. lifting capacity.
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
- Huge cable sheaves reduce wear and tear.
- Extremely convenient open-front design for easy access.
- Extended runway length for servicing.
- Longer approach ramps for low ground clearance vehicles.
- Electric / hydraulic power system.
- Runways include rail-kit for optional accessories.
- Runways adjust for different tread widths.
- Automatic leveling system with multiple auto-leveling locking positions.
- Single hydraulic cylinder mounted underneath runway.
- Fully enclosed lifting cables, safety locks, and sheaves.
- Internal anti-sway slider blocks in each column.
- Pneumatic push-button safety release.
- Features heavy-duty 1/2" aircraft cable.
- Safety locks enclosed in columns minimize pinch points.
- Oversized sheave diameter reduces cable fatigue.
- Runways feature non-skid surface.
- Rugged, self-lubricating cable sheaves.
- Features 1-3/8” sheave axles.
- Multi-position safety locks in each column.
- Independent backup slack-cable safety latches.
- Includes fully adjustable lock stops for precise leveling.
- Integrated rolling bridge airline kit option available.
- Roll-back kit options available.
- Optional drive-thru ramps available.
- Optional drip trays available.
- Optional 7,000-lb. capacity rolling jacks available (Model RJ-7).

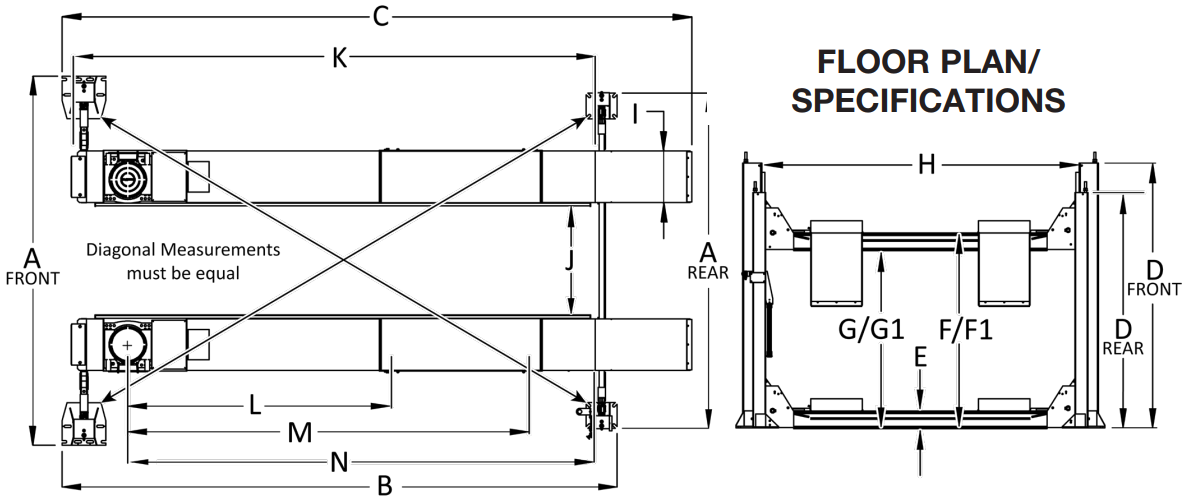

Specifications
| Model | HDSO-14P |
| Lifting Capacity | 14,000 lbs / 6350 kg |
| A - Overall Width / Front | 143.25 in. / 3638 mm |
| A - Overall Width / Rear | 130 in. / 3304 mm |
| B - Outside Length | 215.5 in. / 5472 mm |
| C - Overall Length | 244.5 in. / 6209 mm |
| D - Height of Columns / Front (*) | 103.25 in. / 2623 mm max. |
| D - Height of Columns / Rear(*) | 92 in. / 2338 mm max. |
| E - Min. Runway Height | 7.75 in. / 196 mm |
| F - Max. Rise | 77.5 in. / 1970 mm |
| G - Max Lifting Height | 70.75 in. / 1797 mm |
| H - Width Between Columns / Front | 123 in. / 3127 mm |
| H - Width Between Columns / Rear | 120 in. / 3050 mm |
| I - Runway Width | 20.5 in. / 520 mm |
| J - Width Between Runways(**) | 45 in. / 1146 mm |
| K - Length of Runways | 199 in. / 5054 mm |
| L - Min. 4- Wheel Alignment (***) | 72 in. / 1828 mm |
| M - Max 4 Wheel Alignment (***) | 135 in. / 3428 mm |
| N - Max 2 Wheel Alignment (***) | 174 in. / 4420 mm |
| Min. Wheelbase @ Rated Capacity | 140 in. / 3556 mm |
| Min. Wheelbase 75% Rated Capacity | 120 in. / 3048 mm |
| Min. Wheelbase 50% Rated Capacity | 100 in. / 2540 mm |
| Min. Wheelbase 75% Rated Capacity | 80 in. / 2032 mm |
| Locking Positions | 13 |
| Lock Spacing | Every 4” / 102 mm |
| Lifting Time | 60 Seconds |
| Standard Motor | 220 VAC / 60Hz 1 Ph. |
Emission sound pressure at Operator Position < 70 dB(A)* Safety Ladder Adjustment bolt may add up to 3.75 in. / 95 mm to overall column height.
** This dimension may be limited with the addition of rolling jacks.
*** For CE compliant countries see errata sheet included with control panel.
*The design, material and specifications are subject to change without notice.
Optional Accessories (*Sold separately)
 |  | |
| WSA-100 | Rolling Oil Drain Pan |
