jmc-shipping-button.pngBendpak HDS-40X 40,000-lb. Capacity Extended 4 Post Truck Lift

The HDS-40X is BendPak's heaviest-duty, extended-length truck lift. That makes it the most powerful offering in our arsenal. A rugged design with safety features unmatched in the industry, anyone working on massive commercial vehicles should consider this mighty machine.

40,000 lbs. take a lot of muscle to lift, and many vehicles of this caliber are longer than our standard-length series of four-post lifts can accommodate. If you want to be prepared for the longest and heaviest vehicles on the road, you need BendPak's most impressive offering—and this is undoubtedly it. With runways that measure in at a whopping 310”, the HDS-40X is the heaviest-duty extended-length car lift we make. Slap a bus on it and get to work, no sweat.

The power of this lift is no light matter. Military contractors, government entities on all levels and large commercial truck repair companies have all sought this lift out, knowing there's nothing they can throw at it that it can't handle. Far from being a hobby lift, this industrial-grade powerhouse is only going to fit in serious-minded commercial maintenance spaces. You'll need a big bay with high ceilings, and if you have that, the HDS-40X doubles as a parking lift and ultra-safe storage space.

Bendpak Leak Proof  Bendpak HDS-40X Floorplan

Bendpak Safe Balancing Bendpak Car Lift Guide Bendpak Top 10 Car Lift Buyer's Guide



Features

  • 40,000-lb. lifting capacity.
  • Supersized 12" diameter cable sheaves.
  • Galvanized lifting cables.
  • Extended length runways.
  • Grease nipples.
  • Single hydraulic under-runway cylinder.
  • Integrated flow restrictor.
  • Durable powder coat.
  • Spring-loaded safety locks.
  • Second lock system on constant guard.
  • Fully enclosed lifting cables.
  • Multiple adjustable height locking positions.
  • Maintenance-free electric hydraulic power system.
  • Conveniently positioned operator controls.
  • 12" x 12" base plates.
  • Non-skid runways.
  • Optional rolling jacks.

Specifications

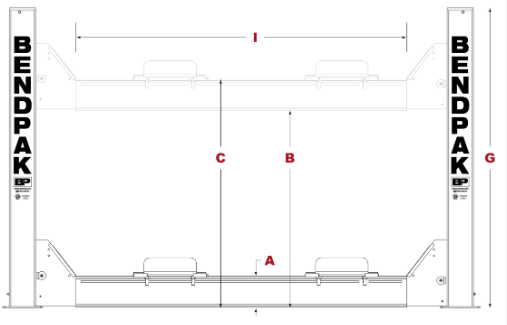

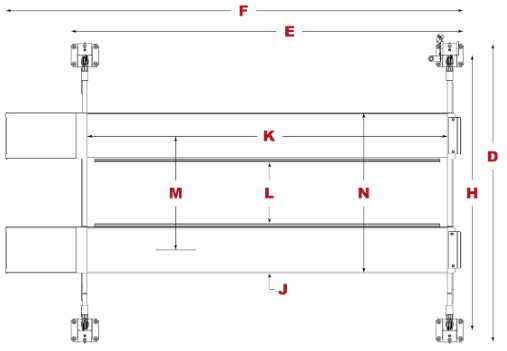

 MODEL  HDS-40X
 Lifting Capacity  40,000 lbs. / 18,144 Kg.
 Max Capacity / Front Axle  20,000 lbs. / 9,072 Kg.
 Max Capacity / Rear Axle  20,000 lbs. / 9,072 Kg.
 A -Overall Width  154” / 3899 mm
 B -Outside Length  317” / 8052 mm
 C -Overall Length  373-1/2” / 9489 mm
 D -Height of Columns  91-1/4” / 2318 mm
 E -Min. Runway Height  9-1/2” / 240 mm
 F -Max. Rise  60” / 1524 mm
 G -Max. Lifting Height  69-1/2” / 1764 mm
 H -Width Between Columns  133-1/2” / 3391 mm
 I -Runway Width  28” / 711 mm
 J -Width Between Runways MIN  36” / 914 mm
 J -Width Between Runways MAX  40-3/4” / 1035 mm
 K -Runway Centerline MIN  64” / 1625 mm
 K -Runway Centerline MAX  73-3/4” / 1873 mm
 L -Outside Edge of Runways MIN  92” / 2337 mm
 L -Outside Edge of Runways MAX  101-3/4” / 2585 mm
 M -Drive-Thru-Clearance  109” / 2769 mm
 N -Length of Runways  320-1/2” / 8141 mm
 Min. Wheelbase @ Rated Capacity  230” / 5842 mm
 Min. Wheelbase @ 75% Capacity  195” / 4953 mm
 Min. Wheelbase @ 50% Capacity  165” / 4191 mm
 Min. Wheelbase @ 25% Capacity  130” / 3302 mm
 Locking Positions  13
 Lock Spacing  Every 4” / 100 mm
 Lifting Time  75 Seconds
 Standard Motor   220 VAC / 60 Hz. 1Ph.



*The design, material, and specifications are subject to change without notice.
