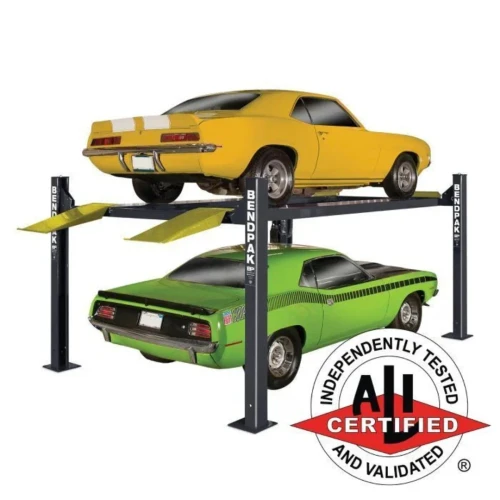

Bendpak HD-9XL 9,000 lbs Capacity Extra Wide, Standard Height, Long Runway Car
The HD-9XL is the ideal 9,000-lb. capacity four-post car lift for vehicles with longer wheelbases. In fact, the runways are about two feet longer than the runways on the standard HD9. This four-post lift variety is available with optional casters, dip-trays, jack platform and more.
The HD-9XL four-post lift offers ample drive-thru clearance and lift height, but it features extended runways to accommodate longer wheelbases. It may be the width of a typical parking space, but this lift truly gets the most out of your valuable floor space. Use it for storing cars, trucks, ATVs, snowmobiles, jet skis, golf carts and just about anything with four wheels. All you need is an 8-foot ceiling, and this car lift makes use of all that empty space you’re currently wasting. An optional caster kit allows you to roll the lift anywhere you need it. Put simply, this four-post lift provides a vehicle maintenance and parking solution that no other lift in its class can offer. The only way to hoist those longer vehicles is to invest in the BendPak HD-9XL.
A BendPak power unit never requires maintenance. The controls are easy to access for your convenience. Plus, lifting, lowering or stopping the vehicle is as easy as pressing a button.
This four-post lift features large, 10” x 12” base plates that can be bolted for extra stability or left unbolted for the caster kit. Either way, the larger surface area of the plates ensures everything you lift and lower will remain safe and stable at all times.
Features
- 9,000-lb. maximum lifting capacity.
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493.
- Wide drive-thru with standard lift height and long runways.
- Electric / hydraulic power system.
- Internal "Anti-Sway" slider blocks in each column.
- Features heavy-duty 3/8" aircraft cable.
- Multi-position safety locks in each column.
- Ramps feature non-skid surface.
- Runways include rail-kit for optional accessories.
- Single hydraulic cylinder underneath runway.
- Oversized self-lubricating cable rollers.
- Rugged 1.25" roller axles.
- Adjustable lock ladders.
- Push-button pneumatic safety release.
- Optional 4,500-lb. capacity jack available (Model RJ-45).
Specifications
| Model | HD-9XL |
| Lifting Capacity | 9,000 lbs. / 4,082 kg |
| Max capacity at Front Axle | 4,500 lbs. / 2,041 kg |
| Max capacity at Rear Axle | 4,500 lbs. / 2,041 kg |
| a Min. runway height | 4.75 in. / 121 mm |
| b Maximum rise | 70.25 in. / 1,782 mm |
| c Maximum lifting height | 75 in. / 1,903 mm |
| d Overall width ± .125 in. / 3 mm | 110.25 in. / 2,800 mm |
| e Outside length | 198 in. / 5,028 mm |
| f Overall length | 224.5 in. / 5,703 mm |
| g Height of post | 88 in. / 2,232 mm |
| h Distance between posts | 100.25 in. / 2,546 mm |
| i Drive-thru clearance | 86.65 in. / 2,200 mm |
| j Runway width | 19 in. / 482 mm |
| k Runway length | 182.25 in. / 4,629 mm |
| l Width between runways (inside utility rail inner edges) | 35 in. - 41.25 in. / 887 mm – 1,045 mm |
| m Runway centerline | 57 in. – 61 in. / 1,445 mm–1,603 mm |
| n Outside edge of runways | 75.75 in. – 82 in. / 1,927 mm – 2,085 mm |
| Max. Load Operating Pressure | 2,460 psi |
| Min. wheelbase @ rated cap. 1 | 135 in. / 3,429 mm |
| Min. wheelbase @ 75 capacity1 | 115 in. / 2,921 mm |
| Min. wheelbase @ 50 capacity1 | 95 in. / 2,413 mm |
| Min. wheelbase @ 25 capacity1 | 80 in. / 2,032 mm |
| Safety Lock positions | 14 spaced every 4 in. / 102 mm |
| Lifting time | 45 – 50 seconds |
| Motor | 220 VAC, 60 Hz, 1 Ph (special voltages available upon request) |
1. The Lift supports less weight than its rated capacity if the Vehicle’s wheelbase is shorter; this is because the wheels are closer to the middle of the Runways, where there is less support. For example, the maximum weight allowed on the Lift for a Vehicle with a wheelbase of 85 in. is 50 percent of the Lift’s rated capacity (or 4,500 lbs. when the rated capacity is 9,000 lbs.).
*Specifications subject to change without notice.
Optional Accessories (*Sold separately)
 |  |  |  | |||
| WSA-100 | Plastic Drip Trays | Rolling Jacks | Sliding Jack Platform |
