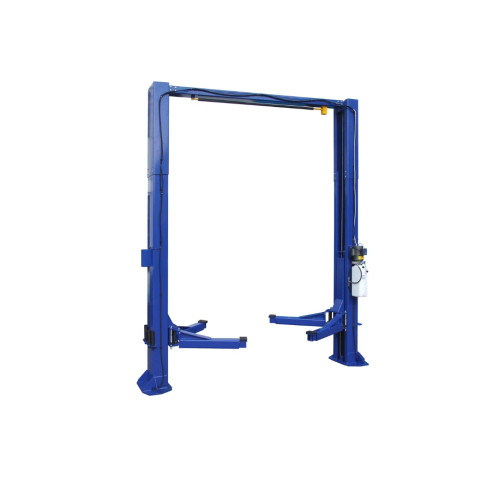

iDEAL TP12KSC-DX 12,000 lb Two Post Lift - ALI Certified
The New iDEAL TP12KSC-DX 12,000 lb. ALI Certified Heavy Duty Two Post Lift is a premium symmetric design clear floor vehicle lift with the latest design features, now including low profile swing arms, adjustable swivel pads & single point cable lock release. The symmetric arm configuration provides stable lifting, making it perfect for super duty & light duty trucks along with most passenger cars. The direct ‘push’ drive cylinders, hose & door guards and automatic arm restraints complete the package for a premium, high quality lift, all at a great value!
Features
- 12,000Lbs Capacity
- Ali Certified
- Symmetric Two Stage Arms
- Rubber Door Guards
- Direct Drive Push Cylinders
- Single Point Lock Release
- Spin Up Lift Pads 5" Pad Height
- Stackable Adapters Included
- External Hose Guards
- Duro Certified Power Unit
- Met, Ul, Csa Listed
Specifications
| Lift Model | TP12KSC-DX |
| Capacity | 12,000 lbs. |
| Height Overall | 168-1/2″ |
| Width Overall w/ Power Unit | 151-5/16″ |
| Max Lift Height | 75″ |
| Width Between Columns | 122″ |
| Min. Pad Height | 4-7/8″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37-5/8″ – 57″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,000 lbs |
| Ship Weight | 2,295 lbs |
| Power | 220V – 20 AMP – 1 PH |
Accessories (Sold separately)
Downloads:
12,000Lbs CapacityAli CertifiedSymmetric Two Stage ArmsRubber Door GuardsDirect Drive Push CylindersSingle Point Lock ReleaseSpin Up Lift Pads 5" Pad HeightStackable Adapters IncludedExternal Hose GuardsDuro Certified Power UnitMet, Ul, Csa Listed
TUXEDO DISTRIBUTORS LIMITED WARRANTY
Structural Warranty:
The following parts and structural components carry a five year warranty:
Columns, Arms, Uprights, Swivel Pins
Legs, Carriages, Overhead Beam
Tracks, Cross Rails, Top Rail Beam
Limited One-Year Warranty:
Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials orworkmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not beenoperated or maintained according to specifications.
Other Limitations:
This warranty does not cover:
1. Parts needed for normal maintenance
2. Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
3. Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter.
4. On-site labor
Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.
The customer is required to notify Tuxedo of any missing parts within 72 hours. Timely notification must be received to becovered under warranty.
Tuxedo will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.
Tuxedo reserves the right to make improvements and/or design changes to its lifts without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties,expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Tuxedo shall not be liable for loss of use, cost of cover, lost profits, inconvenience,lost time, commercial loss or other incidental or consequential damages.
This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.
Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state.
