BendPak 16AP-192 16,000 Lbs Clearfloor 2-Post Lift (High Rise)
The 16AP-192 two-post lift delivers exceptional direct-drive lifting performance. Equipped with cutting-edge technology, top-of-the-line materials, and a design that’s ahead of its time, the 16AP is what you’ll want when you’re working on vehicles weighing up to 16,000 lbs.
Features
- Durable powder coat finish.
- Expandable top beam accommodates wide or narrow drive-thru.
- configurations.
- Double-telescoping screw pads offer increased versatility.
- Padded overhead safety shutoff bar.
- Single-point safety release.
- Drop-end arms provide a lower pad height.
- Dual hydraulic direct-drive cylinders.
- Electric / hydraulic HVLP power system.
- Self-lubricating dura-glide UHMW polyethylene bearing system.
- Automatic arm restraints withstand over 2000-pounds of side force.
- Oversized cable sheave diameter reduces cable fatigue.
- ALI Certified.

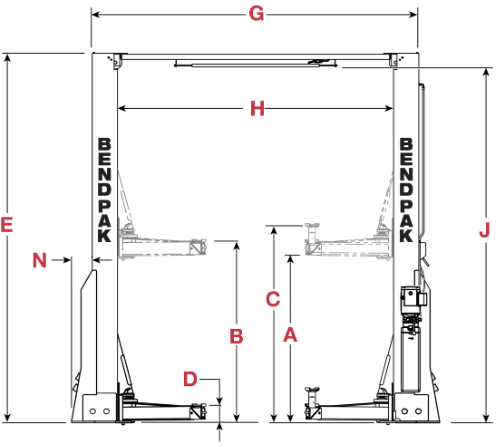

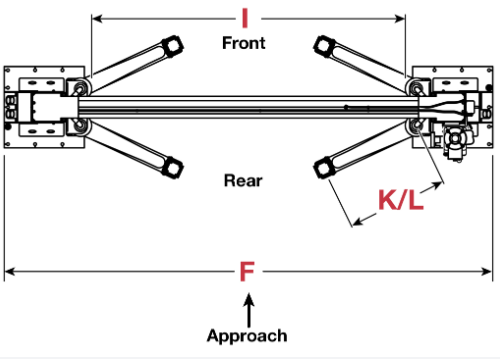

Specifications
| Lifting Capacity | 16000 lb |
| Max Capacity Per Arm | 4000 lb |
| A Rise | 75.75 in |
| B Rise + Pad | 78.5 |
| C Max Lifting Height with Pad | 82.5 in |
| D Min Lifting Height Pad | 7.75 in |
| Lifting Time | 45 seconds |
| E Height | 193.5 in |
| F Width | 139 in |
| G Outside Columns | 132.5 in |
| H Inside Columns | 120 in |
| I Drive- Thru Clearance | 103 in |
| J Floor to Overhead Swich | 186.5 |
| K Front Arm Reach Min | 36 in |
| K Front Arm Reach Max | 65 in |
| L Rear Arm Reach Min | 36 in |
| L Rear Arm Reach Max | 65 in |
| Horsepower | 5 HP |
| Voltage | 208-230V / 60Hz / 1-Phase |
| Sound Level | < 70 dB |
| Shipping Dimension | 31 x 187 x 38 in |
| Shipping Weight | 3588 lb |
| Shipping Method | Flatbed |
| Offload Requirement | Forklift |
*Specifications subject to change without notice
