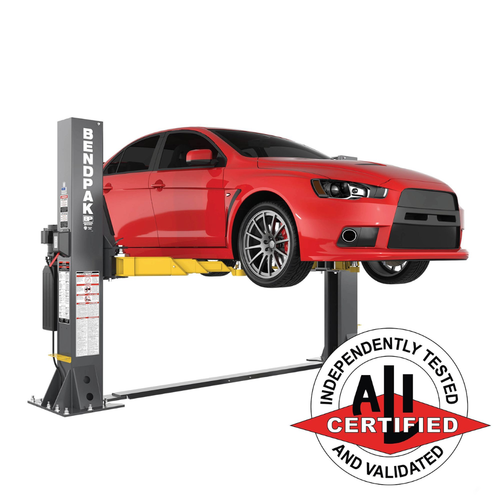

BendPak 12APX 12,000 Lbs Clearfloor 2-Post Lift

BendPak

SKU:
BP-5175556
Condition:
New
Availability:
Special price available for a limited time! Call 800-562-4791 for availability. Free Shipping is valid for commercial locations within the 48 Continental U.S. only.
Shipping:
Free Shipping
Total Price:
MSRP: $11,095.00
$10,520.00
(You save  $575.00 )
Adding to cart… The item has been added

BendPak 12APX 12,000 Lbs Clearfloor 2-Post Liftjmc-shipping-button.png

The BendPak 12APX has been designed to accommodate mechanics out there that are constantly in uncomfortable positions while on the job. This beast of a lift offers an overall height of 169”. This will give you plenty of room to work comfortably with the best equipment available. Much like the rest of the AP Series, this lift still has all of your favorite features, such as a 12,000-lb. lifting capacity, Low-Pro arms, Bi-Metric arms, and much more!

Features

  • 12K LBS. Lifting Capacity.
  • Bi-Metric Lifting.
  • Low-Pro Triple-Telescoping Arms.
  • Performance Guaranteed.
  • Adaptable Design: Symmetric or Asymmetric.
  • Automatic Swing Arm Restraint System (ASARS).
  • Durable Powder Coat Finish.
  • Expandable Top Beam.
  • Double-Telescoping Screw Pads.
  • Padded Overhead Safety Shutoff Bar.
  • Exclusive Bi-Metric Arm Design.
  • Single-Point Safety Release.
  • Drop-End Arms.
  • Dual Hydraulic Direct-Drive Cylinders.
  • Electric/Hydraulic HVLP Power System.
  • Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System.
  • Safety Locks in Each Column.
  • Heavy-Duty Aircraft-Quality Equalizer Cables.
  • Oversized Cable Sheave Diameter.
  • Four-Triple Telescoping Arms.
  • ALI Certified.

Specifications

 Model  12APX
 Max. Lifting capacity  12,000 lbs. (4,443 kg)

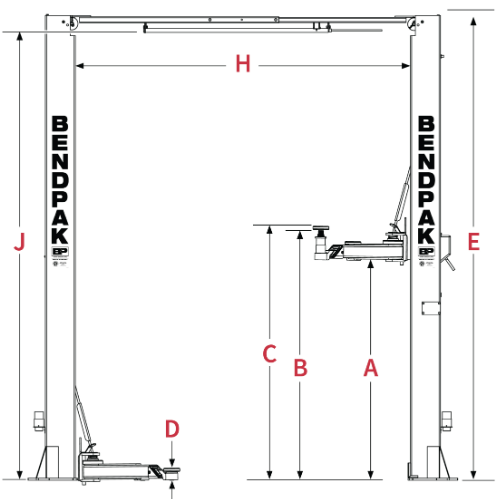

 A – Under Clearance (Top Lock)  75.75" / 1,922 mm
 B1 – Max. Lifting Height (Top Lock)  79 in. / 2,006 mm
 B2 - Max Rise  79.5 in. / 2,018 mm
 C – Max. Lifting Height w/ Adapters  86.5 in. / 2,210 mm
 D – Min. Height w/ Pad  4 in. / 101.2 mm
 E – Overall Height  169 in. / 4,294 mm

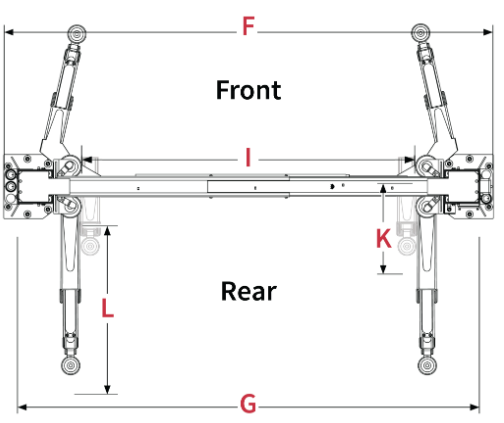

 F - Overall Width  156" / 3,959 mm
 G - Width, Outside Posts  143" / 3,238 mm
 H - Width, Inside Posts  120" / 3,047 mm
 I – Width, Drive-Thru  103" / 2,616 mm
 - Floor to Top Switch  162.50" / 4,128.1 mm
 K – Front Arm Reach (min)  26 in. / 660.4 mm (min)               55.25 in. / 1,404.2 mm (max)
 - Rear Arm Reach  29.50 in. / 745.3 mm (min)               60 in. / 1,524.4 mm (max)
 Max. load per Lift Arm  3,000 lbs. / 1,361 kg
 Pad Adapters Total Height  7.50" / 188 mm
 Time to Full Rise  ≈ 45 seconds
 Motor  220 VAC, 60 Hz, 1 Phase
 Noise  <70 dB

*Specifications subject to change without notice
