BendPak 12AP-SRT 12,000 Lbs Adaptable Clearfloor 2-Post Lift (Short Rise)

BendPak 12AP-SRT 12,000 Lbs Adaptable Clearfloor 2-Post Lift (Short Rise)

The 12AP-SRT from BendPak is a fantastic choice when you don’t need to work underneath vehicles. Whether you’re focusing on detailing or other non-undercarriage tasks, this innovative lift is your go-to choice for efficiency and safety. With its compact design, the 12AP-SRT easily fits into both professional shops and personal garages, maximizing space without compromising performance.

Features

• Durable Powder Coat Finish.
• Expandable Top Beam Accommodates Wide or Narrow Drive-Through Configurations.
• Power Side Post Supports the Power Unit, the Safety Lock Release Handle and the Lowering Handle.
• Double-Telescoping Screw Pads Offer Increased Versatility.
• Padded Overhead Safety Shutoff Bar.
• Exclusive Bi-Metric Arm Design for More Versatile Arm Positioning.
• Single-Point Safety Release.
• Drop-End Arms Provide a Lower Pad Height.
• Dual Hydraulic Direct-Drive Cylinders.
• Electric / Hydraulic HVLP Power System.
• Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System.
• Safety Locks in Each Column Spaced Every 3”.
• Automatic Arm Restraints Withstand Over 2000-Pounds of Side Force.
• Heavy-Duty 1/2” Aircraft-Quality Equalizer Cables.
• ALI Certified.

Specifications

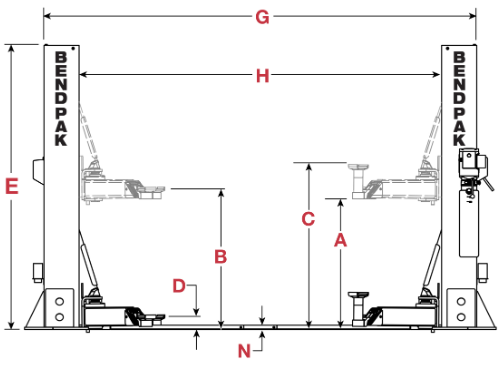

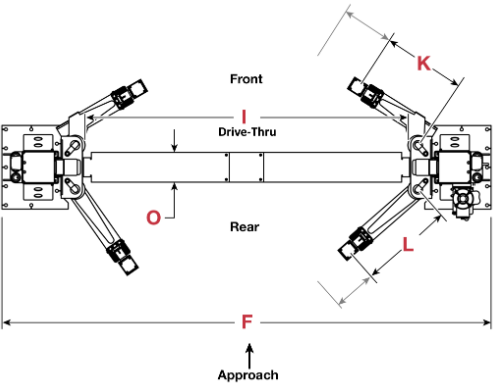

Model  12AP-SRT  Lifting Capacity  12,000 lbs. (5,443 kg)  Maximum Capacity – Front Axle  6,000 lbs. (2,721.5 kg)  Maximum Capacity – Rear Axle  6,000 lbs. (2,721.5 kg)  Maximum Capacity per Lift Arm  3,000 lbs. (1,360 kg) A  Width Overall  155 in. (3,937 mm) B  Base Plate Width  26.5 in. (674 mm) C  Post Height  93.5 in. (2,376 mm) D  Drive-Thru  102.25 in. (2,600 mm) E  Inside Posts  119.25 in. (3,026 mm) F  Outside Posts  142.25 in. (3,612 mm) G  Minimum Height w/Pad  5 in. (128 mm) H  Maximum Lifting Height w/Pad  46.25 in. (1,173.5 mm) I  Maximum Rise  43 in. (1,092 mm) J  Max. Pad Adjustment with Adapters  12 in. 306 mm K  Floor Plate Height  1.5 in. (36 mm) L  Floor Plate Width  9.5 in. (240 mm) M  Front Arm Reach (min. – max.)  26 in. to 55.25 in. (659 mm to 1,403 mm) N  Rear Arm Reach (min. – max.)  29.25 in. to 60 in. (745 mm to 1,525 mm)    Safety Lock Positions  8 Positions positioned every 3.75 in. (95 mm)  Operating Hydraulic Pressure under Max. Load  2,493 psi  Hydraulic Fluid Required  3.6 gallons (13.6 Liters)  Standard Motor  208-230 VAC, 50/60 Hz, 1 Phase, 5 HP, 23 Amps  Time to Full Rise  ≈ 68 seconds  Sound  <43dB

*Specifications subject to change without notice
