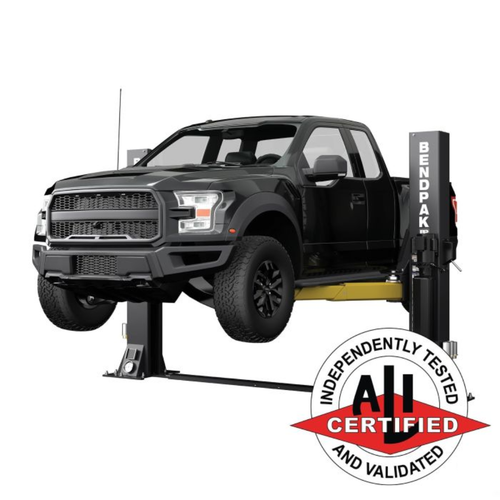

BendPak 10AP-SRT 10,000 Lbs Adaptable Clearfloor 2-Post Lift (Short Rise)

This short-rise, short-column lift is capable of safely handling up to 10,000 lbs. With a max rise of roughly 46 inches, this lift is ideal for tire service as well as detailing. The 10AP-SRT features a compact design which allows it to fit conveniently in shops as well as in low-ceiling garages.

Features

• Power Side Post – The power side post holds the power unit, the safety lock release handle, and the lowering handle (which is on the power unit).
• Offside Post – The opposite Post.
• Power Unit – Provides hydraulic fluid pressure to the lift and connects to an appropriate power source. Includes the Up button, the lowering handle, and the hydraulic fluid reservoir.
• Safety Lock Release Handle – Located on the power post above the power unit, it disengages the safety locks so you can lower the lift.
• Safety Covers – Cover the safety lock mechanism on the posts.
• Floor Plates – Cover the hydraulic hoses, equalizing cables, and safety cable routed between each post.
• Lift Heads – Sometimes called carriages. Lift heads move up and down in the posts. They connect to the lift arms, so when the lift heads rise, so do the lift arms.
• Lift Arms – Extendable steel arms that attach to the lift heads.
• Adapters – Pads that contact the lifting points on the underside of the vehicles you raise. Four cradle adapters are included with your lift and are well-suited for raising trucks and SUVs (body-on-frame style). Additional adapters are available separately and include height adapters, pinch weld pads and screw adapters.
• Height Adapter Trays – Attach to the bottom of the posts, used for holding the spare adapters when not in use.
• Safety Locks – Hold the lift heads up when engaged. Multiple safety lock heights let you select the best one for your needs. Once engaged on its safety locks, the lift heads stay up, even if the lift loses power. Only leave your lift fully lowered or engaged on safety locks.
• Durable powder coat finish.
• Expandable top beam accommodates wide or narrow drive-through configurations.
• Double-telescoping screw pads offer increased versatility.
• Padded overhead safety shutoff bar.
• Exclusive Bi-Metric arm design for more versatile arm positioning.
• Single-point safety release.
• Drop-end arms provide a lower pad height.
• Dual hydraulic direct-drive cylinders.
• Oversized 53” & 59” tall carriages for superior strength and durability.
• Electric / hydraulic HVLP power system.
• Self-lubricating dura-glide UHMW polyethylene bearing system.
• Safety locks in each column spaced every 3”.
• Automatic arm restraints withstand over 2000-pounds of side force
• Heavy-duty 1/2” aircraft-quality equalizer cables.
• Oversized cable sheave diameter reduces cable fatigue.
• Four triple-telescoping arms.
• ALI certified.

Specifications

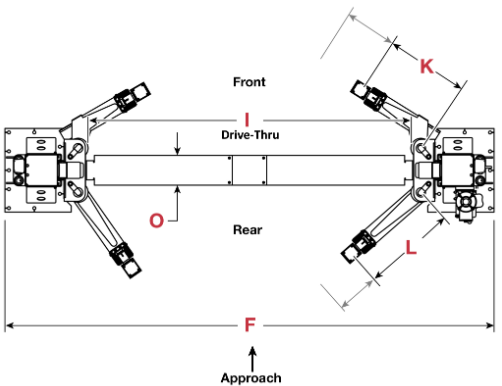

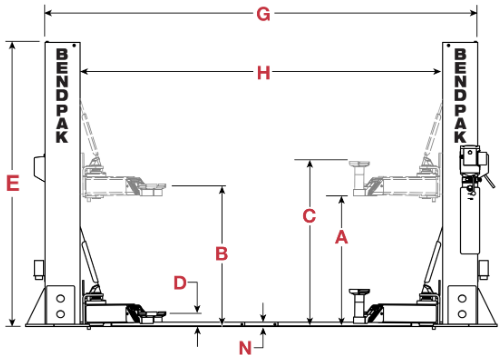

Model  10AP-SRT  Lifting Capacity  10,000 lbs. / 4,536 kg  Maximum Capacity – Front Axle  5,000 lbs. / 2,268 kg  Maximum Capacity – Rear Axle  5,000 lbs. / 2,268 kg  A – Width Overall (Narrow)  136 in. / 3,453 mm  A – Width Overall (Wide)  146 in. / 3,707 mm  B – Base Plate Width  25.25 in. / 642 mm  C – Post Height  93.5 in. / 2,377 mm  D – Drive-Thru (Narrow)  91 in. / 2,311.5 mm  D – Drive-Thru (Wide)  101 in. / 2,565 mm  E – Inside Posts (Narrow)  108.25 in. / 2,749 mm  E – Inside Posts (Wide)  118.25 in. / 3,003 mm  F – Outside Posts (Narrow)  129.5 in. / 3,289 mm  F – Outside Posts (Wide)  139.5 in. / 3,543 mm  G – Minimum Height with Pad  4.5 in. / 116 mm  H – Max. Lifting Height  46.25 in. / 1,174.75 mm  I – Max. Rise  42.5 in. / 1,081 mm  J – Max. Screw Pad Adjustment  2.25 in. / 55mm  K – Floor Plate Height  1.4 in. / 36 mm  L – Floor Plate Width  9.5 in. / 240 mm  M – Front Arm Reach   22.25 in. Min – 47.5 in. Max. /  562 mm Min. – 1,205 mm Max  N – Rear Arm Reach   29.5 in. Min. – 57 in. Max. /  747 mm – 1,446 mm Max.  Safety Lock Positions  8  Standard Motor  220 VAC, 60 Hz, 1 Phase  Sound  <43dB  Time to Full Rise  ≈45 seconds  Operating Hydraulic Pressure under Max. Load  2,170 psi

*Specifications subject to change without notice
