Corghi A9830 Swing Arm Tire Changer (Elect.)
New swing arm tire changer with 26" turntable - robust, reliable, versatile. A wide range of optional accessories are supplied on request, enabling a host of different machine configurations to be achieved.
Features
- Only Available with Electric motor.
- 2 speed turntable.
- Built-in table inflator with jets in the jaws.
- Locking handle locks head away from the rim.
- Powerful action bead-breaker blade follows bead to inside rim contour.
- Heavy-duty turntable rotates in either direction.
- Rebuildable stainless steel cylinders.
- Heavy-duty stainless steel turntable.
- Safe, fast, profitable and affordable.
- Bead-pressing lever.
- Upper arm assembly swings out-of-way.
Specifications
| Model | A9830 |
| Turntable | |
| Inside clamping capacity | 13” ÷ 29” |
| Outside clamping capacity | 10” ÷ 26” |
| Maximum tire diameter | 1200 mm (47") |
| Maximum tire width | 14" |
| Rotation torque | 1200 Nm |
| Rotation speed | 6-15 rpm |
| Height of the plate above the ground | 715 mm |
| Bead breaker | |
| Type | Showel wheel on the ground |
| Maximum opening | min 40 - max 420 mm |
| Shoe force | 2756 lbs |
| Support | Fixed rubber pad |
| Tool | |
| Working range | 8-29" |
| Column | Manual opening |
| Head clamping | Manual |
| Power supply | |
| Electrical 1ph | 115/1/60 Hz MI 2V |
| Pneumatic | on request |
| Operating pressure | 10 bar / 145 psi |
| Weight | 540 lbs |

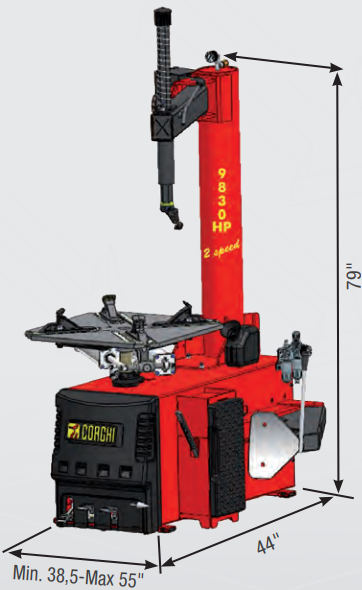

| Dimensions L x D x H | Min. 38,5-Max 55" x 44" x 79" |
Downloads
CORGHI USA Limited Warranty
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within 7 days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Co nsumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
Corghi machines are warranted to be free of defects as follows:
Tire Changers:
A2030, A2024TI, 2024TI LL, A9824TI, A9824 LLTI, A9830, A9222TI, Service Pro 124, Service Pro 324 - 2 year parts and 1 year labor. Transmission – 10 year part only (5 year part only on 9220TI).
AM50, AM500, AM5000, AM26, Master J, Master Code, Master28 – 2 year parts and 1 year labor.
HD700, AG52L, HD1200, Monster TT – 2 year parts and 1 year labor.
NOTE: Rubber Pads, air lines, gauges, mount/demount heads, and swabs - 90 day warranty
Tire Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9550, EM9980C, Eyelight – 2 year parts and 1 year labor.
ET66, ET88 – 2 year parts and 1 year labor.
Alignment Machines/Specialty Equipment:
2 year parts and 1 year labor.
Disclaimer & Limitation on Liability.
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner’s lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
