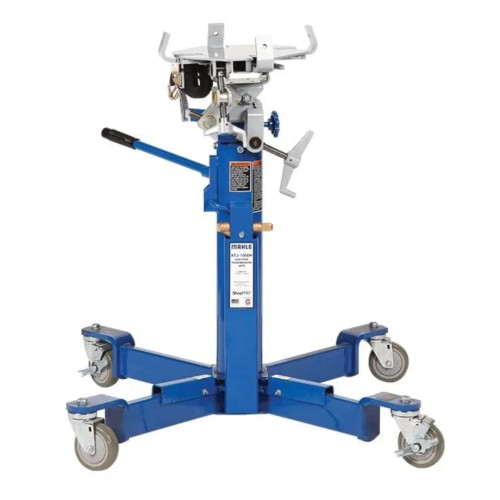

Mahle ATJ-1000H ATJ-1000H - 1,000 lb. Automotive Transmission Jack - High Rise
The ShopPRO ATJ-1000H high-rise automotive transmission jack features the most flexible, usable, and safe head-plate design to boost productivity.
Features
- Two-stage design: 1st stage 100% air operated for speed; 2nd stage hydraulic for precise control
- Swivel casters make for easy maneuverability
- Nylon Speed-Strap™ quickly and conveniently secures the load
- Heavy-duty acme threaded screws provide greater bearing surface for easier tilt adjustments
- Additional adapters available
Specifications
| Capacity | 1,000 lb (454 kg) |
| Minimum Start Height | 34.5 in (88 cm) |
| Maximum Lift Height | 72 in (183 cm) |
| Power | 1st Stage Air / 2nd Stage Hydraulic |
| Head Plate Dimensions | 11.5 in x 11.5 in (29 cm x 29 cm) |
| Dimensions (W x L) | 41 in x 41 in (104 cm x 104 cm) |
| Swivel Caster Diameter | 4 in (10 cm) |
| Required Air Pressure | 90 to 160 psi (6.2 to 11.0 bar) |
| Tilt (Forward / Rear / Side to Side) | 40° / 20° / 10° |
| Shipping | 125 lb (57 kg) |
Downloads
ATJ-1000H Operation ManualWarranty Policy
For Workshop units = It is 1 year for parts and labor.
For ShopPro (lifts and jacks) = lifetime warranty from defective materials and workmanship. Other than that 1 year as far as wearable parts go.
For Parts = It is 90 days.
It is important to always evaluate with Tech Support about every warranty issue. For that, call 800-562-4791 for getting help.
