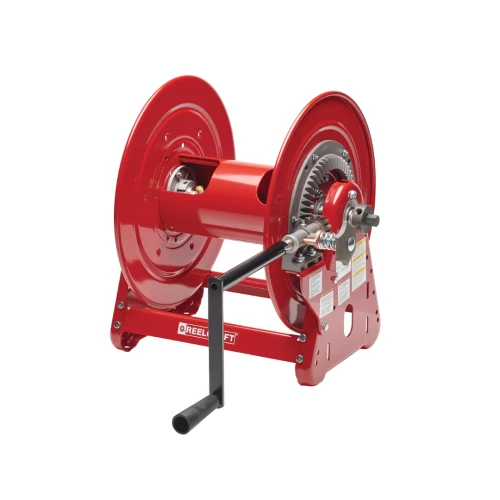

Reelcraft BA36112 LT 1/4 in. x 250 ft. Bevel Crank Twin Line Welding Hose Reel

Reelcraft

SKU:
BA36112 LT
Condition:
New
Availability:
Please conatct us at 800-562-4791 for pricing and availability.

Reelcraft BA36112 LT 1/4 in. x 250 ft. Bevel Crank Twin Line Welding Hose Reel

Reelcraft’s Series BA gas welding hose reels are designed to improve safety in the work area with an increase in productivity and efficiency. The durable baked-on red powder-coated finish provides maximum corrosion resistance. The reel frame, spool, and drum are fabricated of heavy-gauge steel.

  • Leak prevention – The double sealed, special molded o-rings prevent leakage. The swivel inlets are both permanently identified with machined grooves on the gas side to assure proper installation.
  • Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
  • T-grade capability – The seals and hoses are T-grade for use with a variety of welding gases including mapp, propane, natural, and fuel gases.

Reel Specifications and Dimensions

Weight 57 lbs
Series

30000

Hose I.D.

1/4"

Hose O.D.

0.53"

Hose Length

250'

Pressure

200 psi

Inlet

1/4" NPT(F)

Reel Outlet

9/16 – 18(M)

Hose Included

No

Max Temperature

210 °F

UPC

699567002475


A 20.5"
B 28.625"
C 9"
D 15.75"
E 21.625"
F 12"
G 12.6875"

Fluid Path Materials

Internal Fluid Path Steel / Brass
Swivel Assembly Aluminum
Swivel Seal Buna

Parts/Accessories Optional Sold Separately

Pivot Base
600801-12 - 340° Pivot Base
600801-12 - 340° Pivot Base
Swivel Assembly
600257-1 - Swivel Assembly
600257-1 - Swivel Assembly

Downloads



Warranty Information

Limited Warranty

For 2 years (1 year for Series LD, LG, LH cord reels, and reel covers; 6 months for hose and light bulbs) from the date of shipment, products manufactured and/or sold by Reelcraft Industries, Inc. (“Reelcraft”) shall, when properly installed, maintained and operated in accordance with the recommendation of Reelcraft and the manual of instructions, be free of defects in material and workmanship at the time of shipment. In no event shall Reelcraft be obligated under this warranty or otherwise in any way whatsoever for normal wear and tear or for any product which, in Reelcraft’s sole and exclusive determination, has been subjected to accident, abuse, misapplication, improper repair or alteration, improper installation or maintenance, excessive operating conditions or for defects or failures resulting from purchaser’s specifications or designs, or otherwise caused by purchaser, including without limitation defects or failures resulting from purchaser’s manufacture, distribution, sale or promotion of its own products. A failure to use circuit breakers on electric motors, filter, lubricators on air motors, and flexible inlet connections on live hose reels will void the express warranty stated above in this paragraph. EXCEPT FOR THE EXPRESS WARRANTY STATED ABOVE IN THIS PARAGRAPH, REELCRAFT MAKES NO OTHER WARRANTIES, INCLUDING, WITHOUT LIMITATION, ANY EXPRESS OR IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER WARRANTIES, WHICH ARE HEREBY DISCLAIMED, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE.

Equipment, products, components and hoses not manufactured by Reelcraft are subject to the original manufacturer´s guarantee and warranties. Hoses carry a 6 month warranty as listed by the manufacturer. Reelcraft will assist in filing claims, but does not have any additional responsibility if original manufacturer denies warranty claim.

Product built to customer specifications and requirements or products incorporating variation from cataloged items are considered special and are not subject to cancellation or returnable for credit under any conditions.

Reelcraft reserves the right to modify or alter product, dimensions, design and construction to improve performance.

Please refer to Reelcraft’s Terms and Conditions of Sale

In the event of any conflict between this Warranty Information statement and the Terms and Conditions of Sale, the Terms and Conditions of Sale shall control.
