EMAX Silent Air 20hp 1PH 120 Gallon Horizontal Duplex Mounted- W/ 115CFM air Dryer Package
*Note: image for reference only. Final product appearance may change
This package contains:
(1) EMAX Silent 20hp V4 1PH 120 gallon Horizontal Duplex mounted alternating Piston Compressor
(1) EMAX 115CFM 115V Refrigerated Air Dryer
EMAX Silent 20hp V4 1PH 120 gallon Horizontal Duplex mounted alternating Piston Compressor -With Pressure Lube Pump
EMAX Compressor has added our duplex Alternating line to the EMAX family. The benefits to these compressors are the alternating switch that will allow the units to alternate from one pump to another. The unit will pump up to set pressure, then under the next start-up sequence the opposing pump will start. This eliminates excessive running and allows the pumps to cool under heavy loads. These units also have a feature that if one pump will not maintain set pressure and not keeping up with demand, then both units will come on and run until the unit hits the pressure setting after which it will go back into normal alternating mode.
This unit as all the features to make using it a breeze from its automatic tank drain to the belt tensioners and the continuous run mode, this compressor has it all.
Equipped with our Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%.
Features
- Re-usable oil filter
- Dual Alternating motors
- Belt tension adjuster for fast, easy one-turn maintenance
- Design reduces vibration and extends belt life
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
- Alternating Switch allow the units to alternate from one pump to the other. Eliminates excessive running and allows pumps to cool under heavy loads.
- (2) Magnetic starter w/relay Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
- (2) Of our low RPM solid cast iron patented pressure lubricated pumps paired with (2) Industrial grade 1750 RPM motors, (2) Magnetic Starters ran with a relay switch all installed on our ASME certified 120 Gallon Horizontal tanks.
Specifications
Horsepower | 10 HP each pump |
Amps | 80 |
Volts | 230 |
Pump Drive | Belt |
Pump Material | Cast Iron |
Stage | 2 |
CFM at Max. PSI | 64 |
CFM at 40 PSI | 99 |
CFM at 90 PSI | 68 |
Max. PSI | 175 |
Working Pressure | 145 PSI |
Motor Phase | 1 |
Motor RPM | 1750 |
Tank Orientation | Horizontal |
Tank Fill Time | 4 min |
Air Tank Size | 120 Gal |
Air Outlet Size | 1 in |
Air Outlets (qty.) | 1 |
Drain Type | Automatic |
Electronic Drain Valve | Yes |
Engine Start Type | Electric |
After Cooler Included | No |
Air Compressor Type | Stationary |
Electric, Air Dryer | None |
Duty Cycle | 60 % |
Low Oil Shutdown | No |
Lubrication System | Pressure |
Oil Required | Yes |
Pressure Gauge | Yes |
Product Weight | 1850 lb |
Dimensions L x W x H (in.) | 96.0 x 42.0 x 64.0 in |

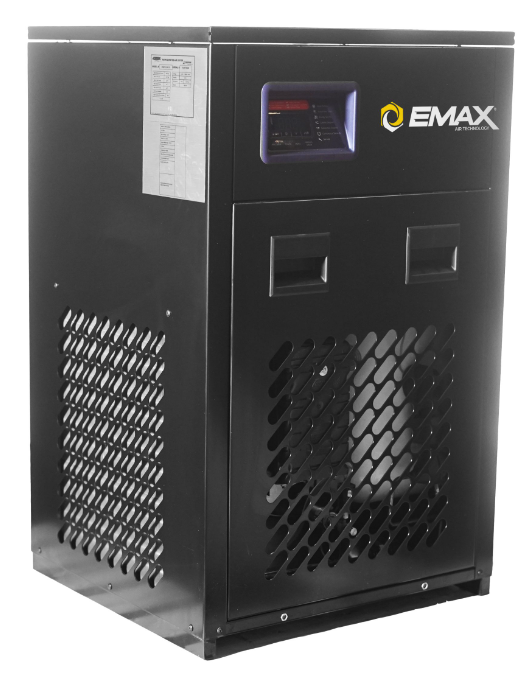

EMAX 115CFM 115V Refrigerated Air Dryer
Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler.
Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. EMAX Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.
Keep Water, Oil, And Dirt Out of Your Compressed Air, Less corrosion of pipes and tools. Avoid splotches & stains.
Energy Efficient Aluminum Refrigerated Air Cooling System, Designed for maximum performance and efficiency.
Rust Free, Stainless Steel Heat Exchanger, Maximum heat transfer, maximum dryer life & less maintenance
Refrigerated Air Inlet Inner Cooler, Provides trouble free operation for high temp cooling
Compact And Efficient, Great for 10HP systems, 115 CFM
Easy To Instal, Uses 120V single-phase power, no special wiring needed
Features
- Purifies compressed air by chilling to condense moisture
- Condensate is drained carrying oil & dirt partials away from the air
- Auto drain system – eliminates the need for daily maintenance
- Refrigerant pressure – gauge clearly monitors performance of dew point temp (models under 400 CFM)
- PLC Display (models 400 CFM & above)
- Outlet air baffle heater – prevents condensation on outlet air piping
- Heavy duty steel cabinet
- Trouble free operation refrigerated air inlet inner cooler for high temp cooling
- Top mounted condenser & fan motor
- Environmentally friendly 134A refrigerant
- Auto Drain System
- Refrigerant Pressure Gauge
- Outlet Air Baffle Heater
Specifications
CFM | 115 |
Dimensions LxWxH | 16" x 18" x 30" |
Product Weight | 150 |
Voltage 60HZ | 115 |
Amp Draw | 11 |
Dew Point (degrees F) | 37-50 |
Pipe Size:Inlet & Outlet (inch.) | 1 1/2" |
Max Ambient Temp.(degrees F) | 122 |
Refrigerant Type | R-134A |
Max Rated Inlet Temp (degrees F) | 140 |
Dryer Drain | Built in automatic |
Dryer Filtration | Built in coalescing Filter |
Downloads
EMAX Air Dryers Instructions Manual
Air Compressor Pumps Operating Instruction
