Katool KT-AM120SD 12000 lbs. Clear Floor 2 Post Lift with Direct Drive and Assym Arms
*Note: Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 12,000 lbs lifting capacity.
- Single point lock release.

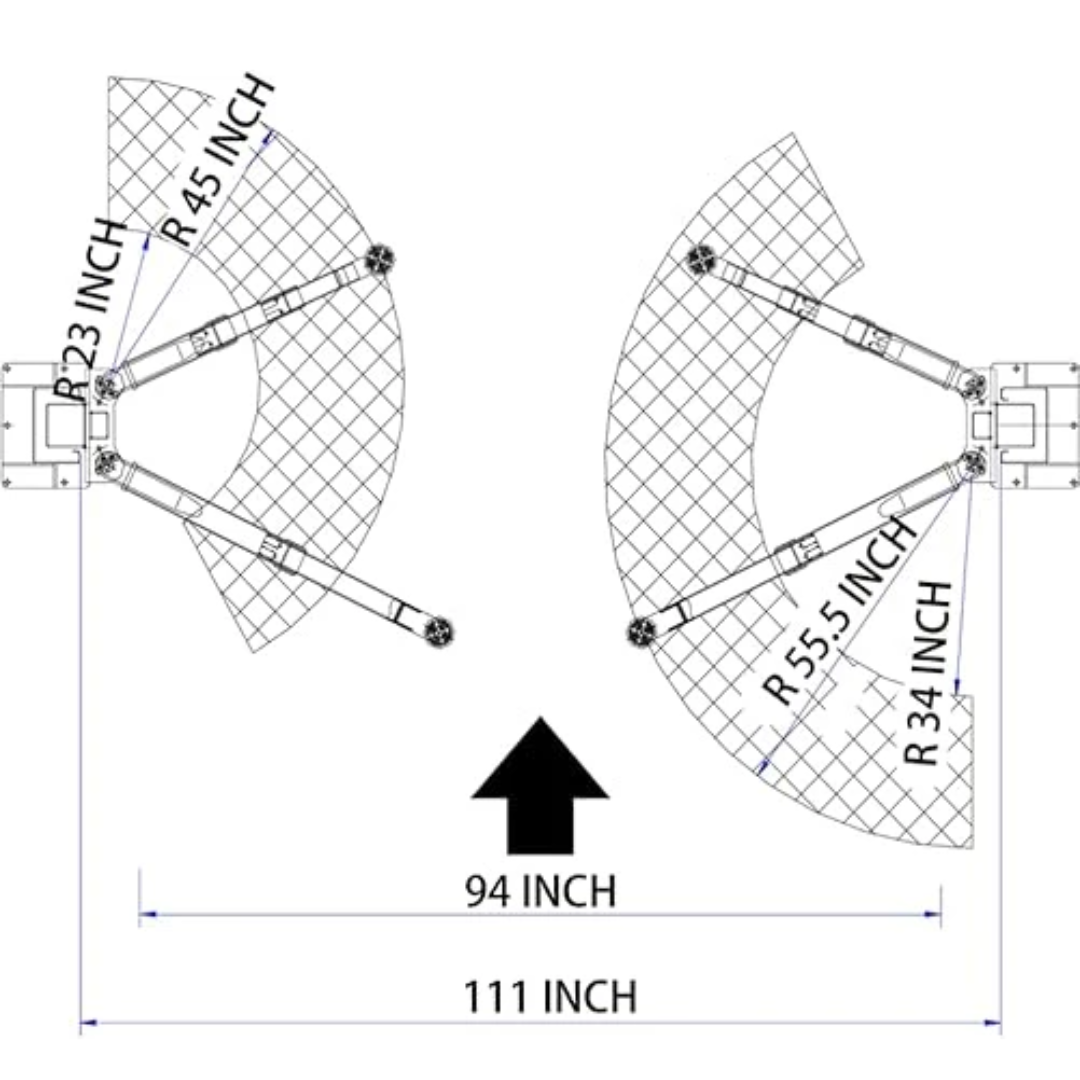

- Asymmetric arms.
- Top-level hydraulic system with 220V/60HZ/1PH.
Specifications
| Min. Height | 4.33" |
| Max Lifting Height | 70.86" |
| Lifting Capacity | 12,000 Lbs |
| Overall Height | 143.7" |
| Lifting Height | 70.8" |
| Lifting Time | 50 S |
| Power Supply | 2.2 KW |
| Rated Oil Pressure | 18 MPA |
| Overall Weight | 1234 Lbs |
 |  |
Downloads
Warranty Policy
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment (Contact us for more info)
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
