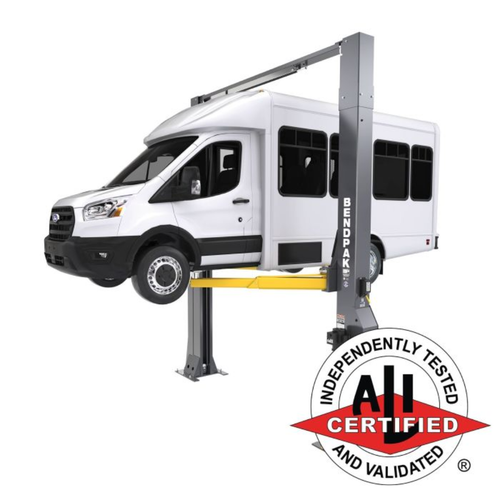

BendPak 16AP 16,000 Lbs Clearfloor 2-Post Lift

BendPak

SKU:
BP-5175608
Condition:
New
Availability:
Special price available for a limited time! Call 800-562-4791 for availability. Free Shipping is valid for commercial locations within the 48 Continental U.S. only.
Shipping:
Free Shipping
Total Price:
MSRP: $22,395.00
$21,270.00
(You save  $1,125.00 )
Adding to cart… The item has been added

BendPak 16AP 16,000 Lbs Clearfloor 2-Post Liftjmc-shipping-button.png

The 16AP two-post lift delivers exceptional direct-drive lifting performance. Equipped with cutting-edge technology, top-of-the-line materials, and a design that’s ahead of its time, the 16AP is what you’ll want when you’re working on vehicles weighing up to 16,000 lbs.

Features

  • Durable powder coat finish.
  • Expandable top beam accommodates wide or narrow drive-thru.
  • configurations.
  • Double-telescoping screw pads offer increased versatility.
  • Padded overhead safety shutoff bar.
  • Single-point safety release.
  • Drop-end arms provide a lower pad height.
  • Dual hydraulic direct-drive cylinders.
  • Electric / hydraulic HVLP power system.
  • Self-lubricating dura-glide UHMW polyethylene bearing system.
  • Automatic arm restraints withstand over 2000-pounds of side force.
  • Oversized cable sheave diameter reduces cable fatigue.
  • ALI Certified.

Specifications

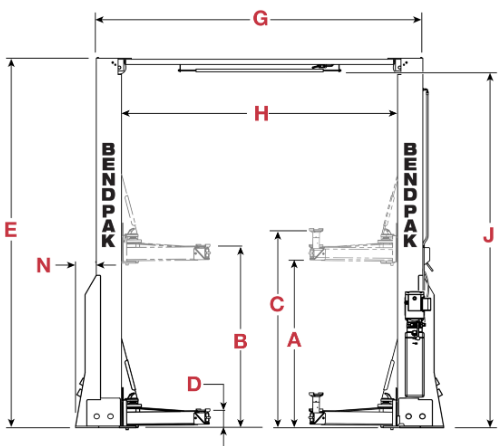

 Model  16AP
 Max. Lifting capacity  16,000 lbs. / 7,257 kg
 A – Underlock Clearance  76 in. / 1,930 mm
 B1 – Max. Lifting Height (Top Lock)  82.25 in. / 2,089 mm
 B2 – Max Rise  82.75 in. / 2,102 mm
 C – Max. Lifting Height w/ Adapters  89.75 in. / 2,280 mm
 D – Min. Height w/ Pad  7.75 in. / 195 mm
 E – Overall Height  169 in. / 4,294 mm
 F – Overall Width  168 in. / 4,267 mm
 G – Width, Outside Posts  149 in. / 3,785 mm
 H – Width, Inside Posts  126 in. / 3,199 mm

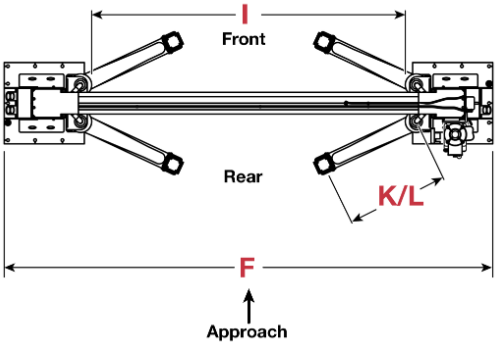

 I – Width, Drive-Thru  107.75 in. / 2,740 mm
 J – Floor to Top Switch  163 in. / 4,128 mm
 K – Lift Arm Reach  36 in. / 931 mm (min)
 65 in. / 1,651 mm (max)
 L – Base Plate Width  28 in. / 710 mm
 M – Post to Base Plate  9.5 in. / 241 mm
 Max. load per Lift Arm  4,000 lbs. / 2,268 kg
 Motor  220 VAC, 60 Hz, 1 Phase
 Sound  <70 dB

*Specifications subject to change without notice

WARNING: Cancer and Reproductive Harm


Downloads

pdf.jpg Manual

pdf.jpg Brochure



**Bendpak charges sales tax in California**
***It is the buyer's responsibility to unload the freight at their location.
