BendPak 12APX-192 12,000 Lbs Clearfloor 2-Post Lift (High Rise)

The BendPak 12APX-192 has been designed to accommodate mechanics who often find themselves in uncomfortable positions while on the job. With an impressive overall height of 193 inches, this lift provides plenty of room to work comfortably with the best equipment available. Like the rest of the AP Series, this lift retains all your favorite features, including a 12,000-lb. lifting capacity, Low-Pro arms, Bi-Metric arms, and much more!

Features

• 12K LBS. Lifting Capacity.
• Bi-Metric Lifting.
• Low-Pro Triple-Telescoping Arms.
• Performance Guaranteed.
• Adaptable Design: Symmetric or Asymmetric.
• Automatic Swing Arm Restraint System (ASARS).
• Durable Powder Coat Finish.
• Expandable Top Beam.
• Double-Telescoping Screw Pads.
• Padded Overhead Safety Shutoff Bar.
• Exclusive Bi-Metric Arm Design.
• Single-Point Safety Release.
• Drop-End Arms.
• Dual Hydraulic Direct-Drive Cylinders.
• Electric/Hydraulic HVLP Power System.
• Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System.
• Safety Locks in Each Column.
• Heavy-Duty Aircraft-Quality Equalizer Cables.
• Oversized Cable Sheave Diameter.
• Four-Triple Telescoping Arms.
• ALI Certified.

Specifications

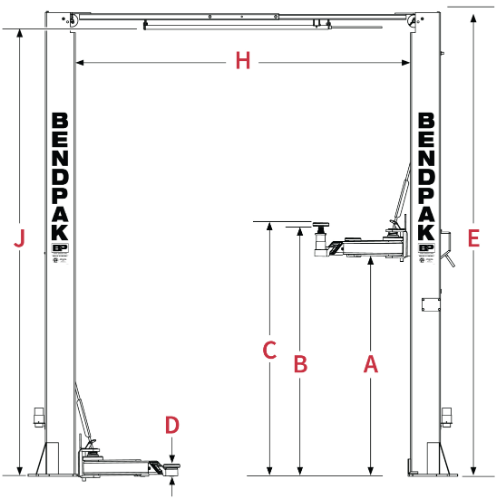

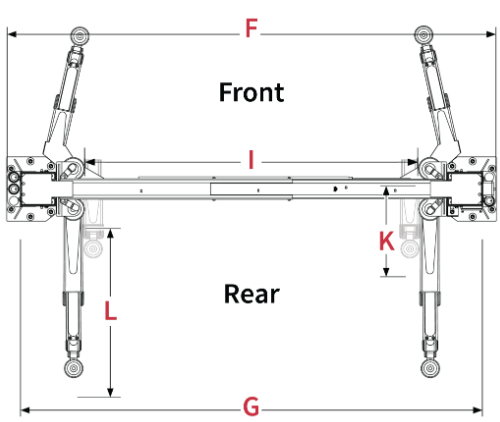

Model  12APX-192  Max. Lifting capacity  12,000 lbs. (4,443 kg)  A – Under Clearance (Top Lock)  75.75" / 1,922 mm  B1 – Max. Lifting Height (Top Lock)  79 in. / 2,006 mm  B2 - Max Rise  79.5 in. / 2,018 mm  C – Max. Lifting Height w/ Adapters  86.5 in. / 2,210 mm  D – Min. Height w/ Pad  4 in. / 101.2 mm  E – Overall Height  193 in. / 4,904 mm  F - Overall Width  156" / 3,959 mm  G - Width, Outside Posts  143" / 3,238 mm  H - Width, Inside Posts  120" / 3,047 mm  I – Width, Drive-Thru  103" / 2,616 mm  J - Floor to Top Switch  186.50 in. / 4,738.5 mm  K – Front Arm Reach (min)  26 in. / 660.4 mm (min)               55.25 in. / 1,404.2 mm (max)  L - Rear Arm Reach  29.50 in. / 745.3 mm (min)               60 in. / 1,524.4 mm (max)  Max. load per Lift Arm  3,000 lbs. / 1,361 kg  Pad Adapters Total Height  7.50" / 188 mm  Time to Full Rise  ≈ 45 seconds  Motor  220 VAC, 60 Hz, 1 Phase  Noise  <70 dB

*Specifications subject to change without notice
