Katool KT-AS110D 11000 lbs. Clear Floor 2 Post Lift with Direct Drive and Assym Arms
Features
- 11,000 lbs (4990 KG) lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Single Point Lock Release.
- Asymmetric arms.
- Direct Drive Cylinders.
- Rubber pad door opening protection.
- Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.
- Overhead safety shutoff bar.
Specifications
| Lifting Capacity | 11000 lbs. (4990 KG ) |
| Max. Lifting Height | 70.75" / 1800 mm |
| Min. Height | 3.74" / 95 mm |

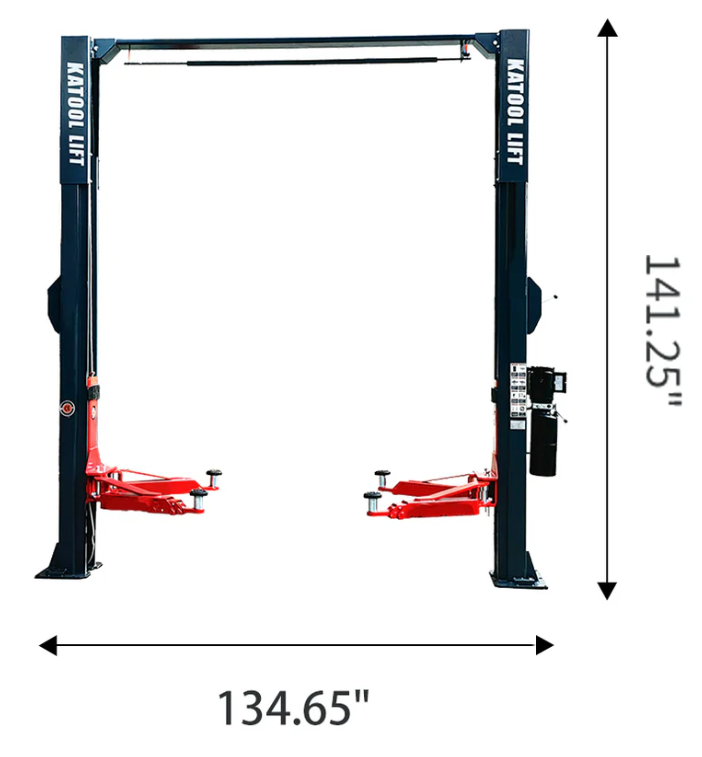

| Height Overall | 141.25" / 3587 mm |
| Width Overall | 134.65" / 3420 mm |
| Outside Columns | 120.4" / 3058 mm |
| Inside Columns | 109.37" / 2778 mm |
| Drive Thru Clearance | 99.61" / 2530 mm |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 1323 lbs / 600 KG |
Warranty Policy
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment (Contact us for more info)
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
