Stratus SAE-C14X Overhead Clear Floor Direct Drive 14,000 lbs Capacity
Limited Access Zones
Features
- Extra wide drive through: 115 11/16”.
- Overhead / Clear floor design.
- Single point manual release.
- Direct Drive.
- 2 Top limiter switch.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004).

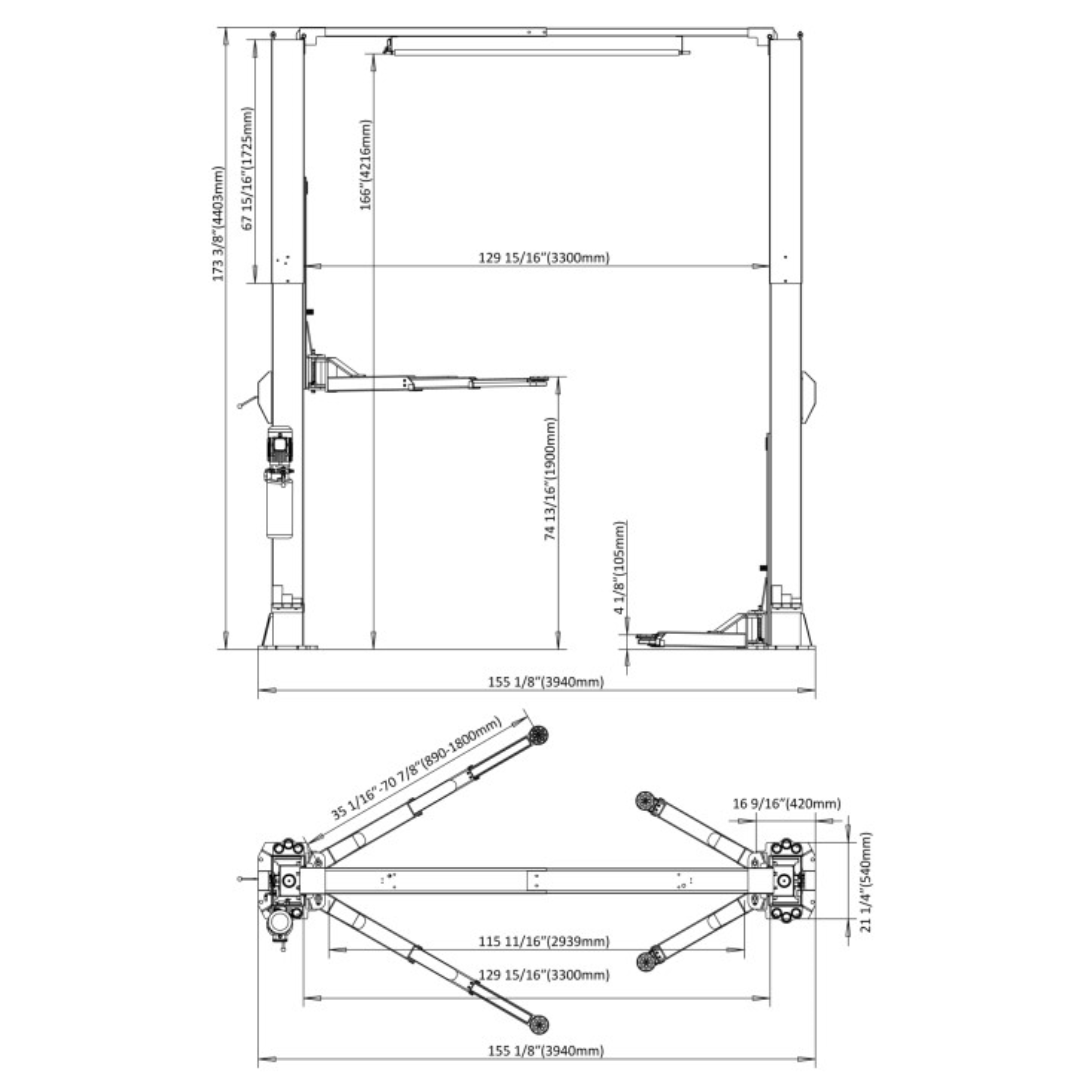

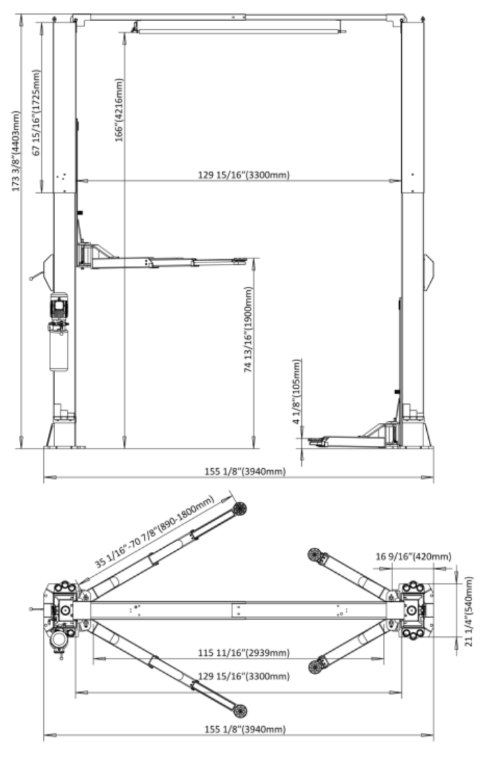

Technical Specification
| Model | SAE-C14X |
| Capacity | 14,000 LBS |
| Rise | |
| Max Lifting Height with Adaptors | 78 13/16” (2001 MM) |
| Min Lifting Height with Adaptors | 8 1/8” (206 MM) |
| Max Lifting without Adaptors | 74 13/16” (1900 MM) |
| Min Lifting without Adaptors | 4 1/8” (105 MM) |
| Rise Time | ~60SEC |
| Outside Dimensions | |
| Overall Height | 173 3/8” (4403 MM) |
| Overall Width | 21 1/4” (540 MM) |
| Overall Length | 155 1/8” (3940 MM) |
| Inside Dimensions | |
| Inside Columns | 129 15/16” (3300 MM) |
| Drive Thru | 115 11/16” (2939 MM) |
| Arms | |
| Front Arm Reach Max | 61 1/4” (1555 MM) |
| Front Arm Reach Min | 39 3/8” (1000 MM) |
| Rear Arm Reach Max | 42 5/16” (1075 MM) |
| Rear Arm Reach Min | 23 13/16” (605 MM) |
| Power Unit | |
| Motor | 4 HP, 220V, 60 HZ, 1ph |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Shipping | |
| Weight | 2,360 LBS |
| Dimension | 111” L * 43” W * 32” H |
| Concrete | |
| Requirements | 6” – 3000 PSI |
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
