Katool KT-H100 10000 lbs. Floor Plate 2 Post Lift
*Note: Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 10,000lbs lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Manual safety release from two sides.
- Symmetric arm.
- Base plate design.
- Dual Hydraulic Chain-Drive Cylinders.
- Rubber pad door opening protection.
- Comes with extension support adaptor sets of +30 mm and +120 mm.
- Feet-protection safety guardrails with tools box.

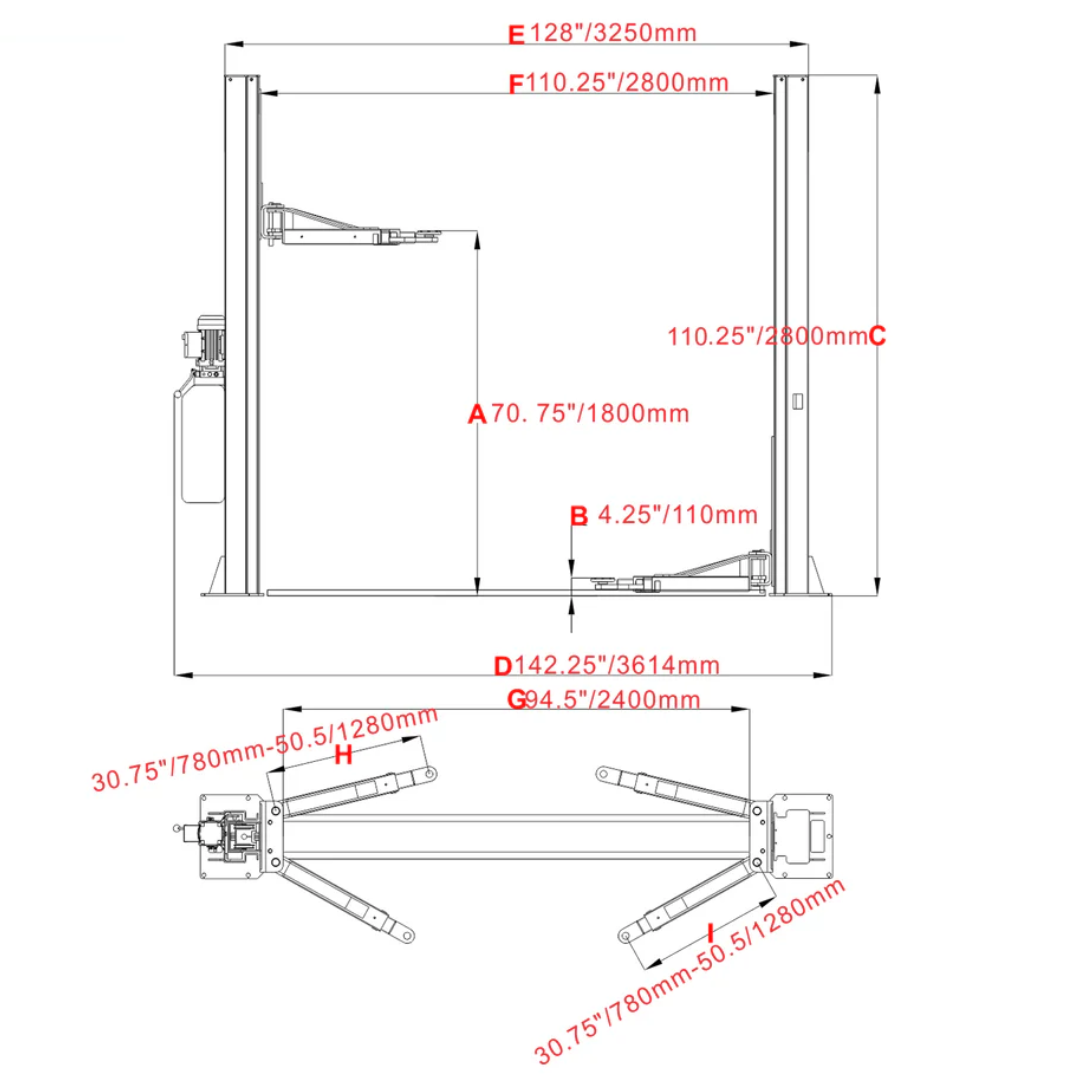

Specifications
| Lifting Capacity | 10,000 lbs / 4,500 KG | |
| A | Max. Lifting Height | 70.75" / 1800 mm |
| B | Min. Height | 4.25" / 110 mm |
| C | Height Overall | 110.25" / 2800 mm |
| D | Width Overall | 142.25" / 3614 mm |
| E | Outside Column | 128" / 3250 mm |
| F | Inside Column | 110.25" / 2800 mm |
| G | Drive-Thru Clearance | 94.5" / 2400 mm |
| H | Front Arm Reach (Min) | 30.75" / 780 mm (2 stages) |
| Front Arm Reach (Max) | 50.5" / 1280 mm (2 stages) | |
| I | Rear Arm Reach (Min) | 30.75" / 780 mm (2 stages) |
| Rear Arm Reach (Max) | 50.5" / 1280 mm (2 stages) | |
| Motor | 220VAC/60HZ/1PH/2.2KW | |
| Net Weight | 1256 lbs / 570 KG |
Warranty Policy
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment (Contact us for more info)
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
