Stratus SAE-P49D Stratus 4 Post 9,000 lbs Capacity Manual Release Double Parking Lift With Optional Castors

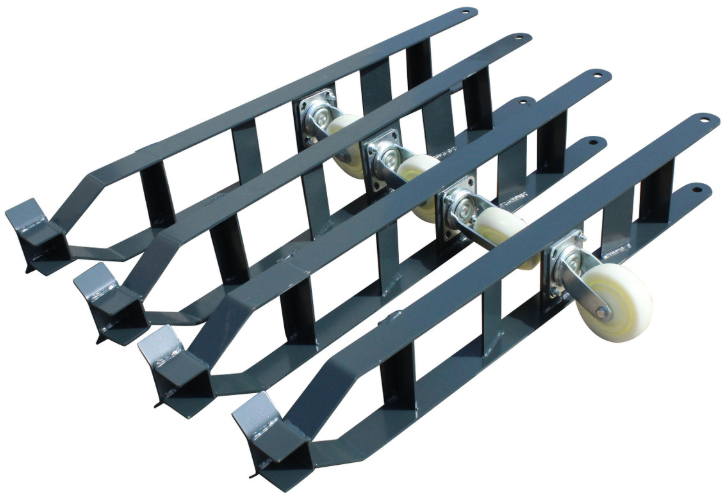

Stratus 4 Post 9,000 Lbs Capacity Manual Release Double Parking Car Lift Sae-P49D (*Castor Kit Sold Separately)

pdf.jpgLimited Access Zones

Features

  • Single point manual safety lock release.
  • Mechanic locks automatically engaged to lock position in ascending processing.
  • Imbalance protection, safe and reliable.
  • Self-lubricating pulleys and pre-tensioned cable.
  • Skid-proof diamond platform.
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
  • Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004).

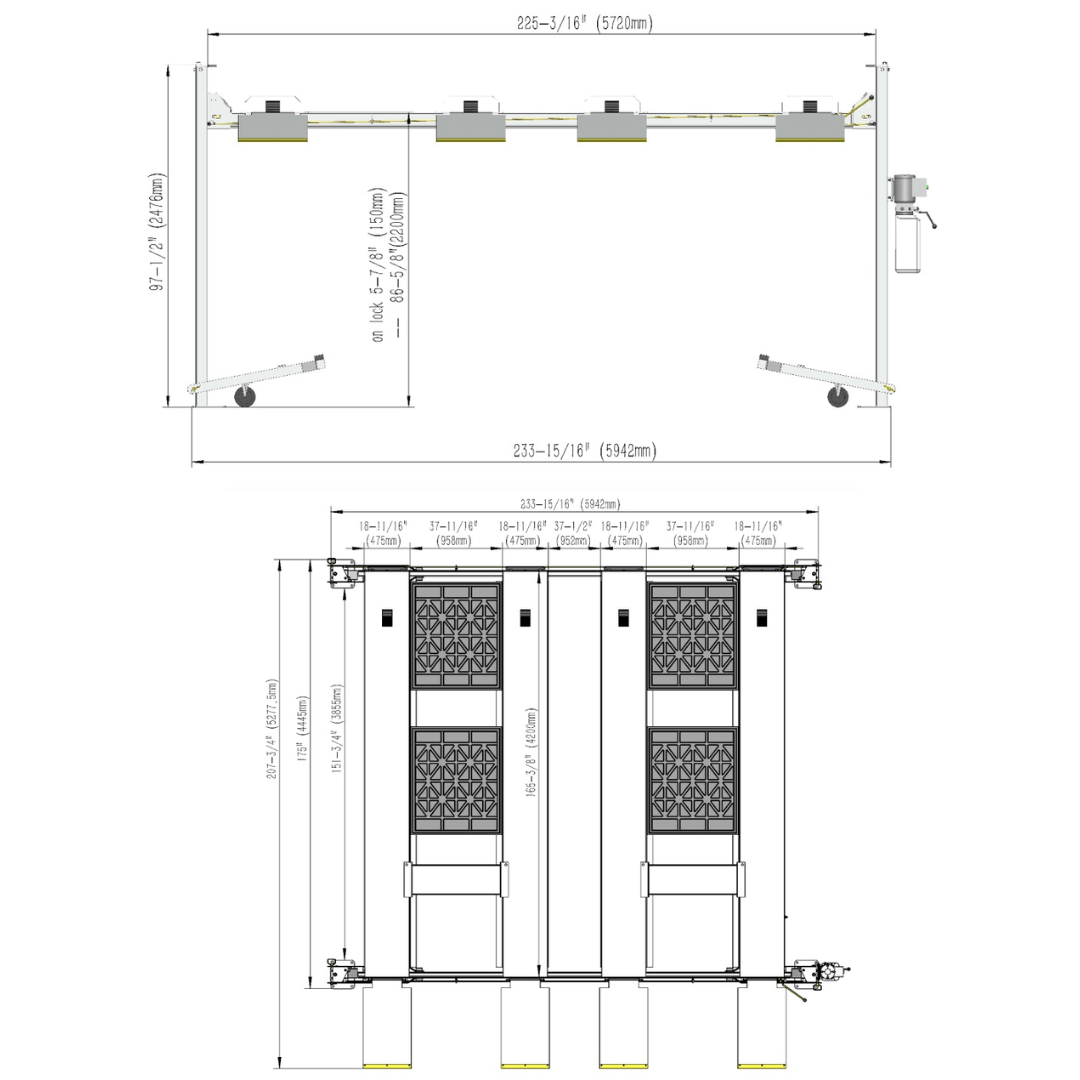

Technical Specification

 Model  P49D
 Capacity  9,000 LBS
Rise
 Min lifting height  5 7/8” (150 MM)
 Max lifting height  86 5/8” (2200 MM)
 Lifting Time  ~ 55SEC
 Clearance Height  80 3/4” (2052 MM)
Outside Dimensions
 Overall Height  97 ½” (2476 MM)
 Overall Width  233 15/16” (5942 MM)
 Overall Length w/ ramps  207 3/4” (5277.5 MM)
 Overall Length w/o ramps  175” (4445 MM)
Inside Dimensions
 Width columns  225 3/16” (5720 MM)
 Drive Thru  75 1/16” (1906 MM) (per side)
Runways
 Runway width  18 11/16” (475 MM)
 Runway Length  165 3/8” (4200 MM)
 Between Runways  37 11/16” (958 MM)
Power Unit
 Motor  4 HP,110V, 60 HZ, 1ph
 Oil  AW32 or AW46
 Breaker  20A
Shipping
 Weight  3931 LBS
 Dimension  232” L * 22” W * 50” H






Optional Accessories (*Sold separately)

SAE-BJ5 Sliding Bridge Jack




*Important Notes

1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.

Downloads

pdf.jpg Manual

pdf.jpg Brochure

Warranty Information

  • 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
  • Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
