Stratus SAE-P48 4 Post 8,000 lbs Capacity Manual Release Storage Lift With Castors
*Shown with Sliding Bridge Jack (Sold separately)
Limited Access Zones
Features
- Hassle-free lock mechanism release system.
- Relocatable Power Unit.
- Cable Failure Protection -Second safety device will be automatically locked while primary safety locks are out of operation.
- Skid proof diamond platform.
- Multi-level locking positions (13 locking positions).
- Manual Safety Lock Release.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004).

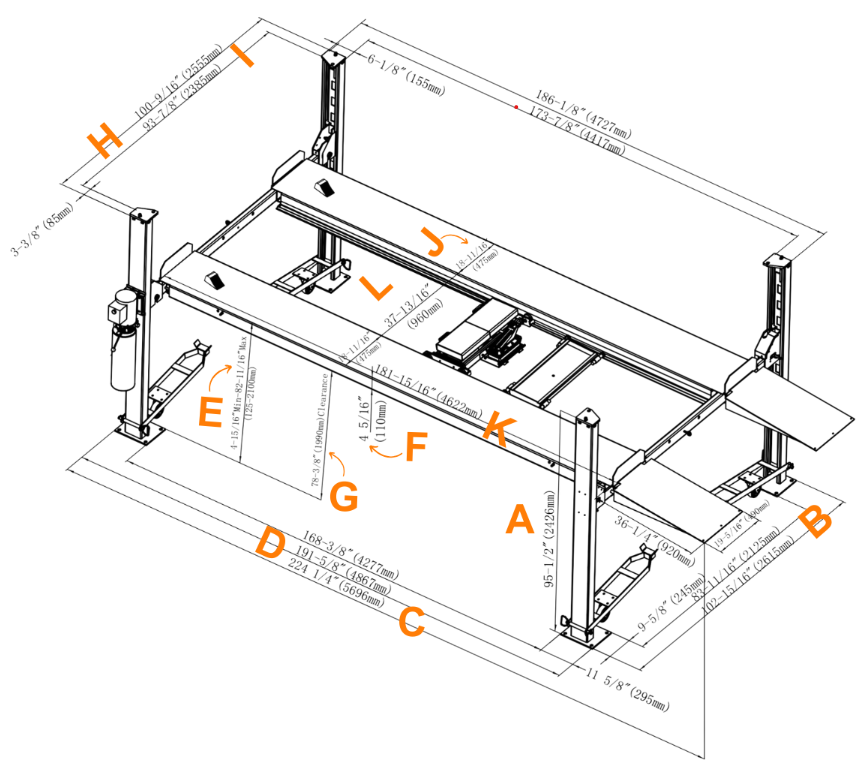

Technical Specification
| Capacity | 8,000 LBS |
| Rise | |
| Min lifting height | 4 5/16” (125 MM) |
| Max lifting height | 82 11/16” (2100 MM) |
| Lifting Time | ~ 45SEC |
| Clearance Height | 78 3/8” (1991 MM) |
| Outside Dimensions | |
| Overall Height | 95 1/2” (2426 MM) |
| Overall Width | 102 15/16” (2615 MM) |
| Overall Length w/ ramps | 218 3/16” (5542 MM) |
| Overall Length w/o ramps | 191 5/8” (4867 MM) |
| Inside Dimensions | |
| Width columns | 93 7/8” (2385 MM) |
| Drive Thru | 74 15/16” (1904 MM) |
| Runways | |
| Runway width | 18 11/16” (475 MM) |
| Runway Length | 181 15/16” (4622 MM) |
| Between Runways | 37 13/16” (960 MM) |
| Power Unit | |
| Motor | 3 HP, 110V, 60 HZ, 1ph |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Shipping | |
| Weight | 1,770 LBS |
| Dimension | 182” L * 22” W * 29” H |
Optional Accessories (*Sold separately)
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
