Stratus SAE-P166M Single Post 6600 lbs Capacity Manual Safety Lock Release Parking Lift

Stratus Auto Equipment

SKU:
SAE-P166M
Condition:
New
Availability:
Please contact us at 800-562-4791 for pricing and availability.

Stratus SAE-P166M  Single Post 6600 lbs Capacity Manual Safety Lock Release Parking Lift

pdf.jpgLimited Access Zones

Features

  • Manual safety lock release.
  • 220V (Recommend 20A breaker) power unit.
  • Anti-surge hydraulic valve.
  • Door protection pads.
  • Anti-surge hydraulic valve.
  • CE certified.
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
  • Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004.

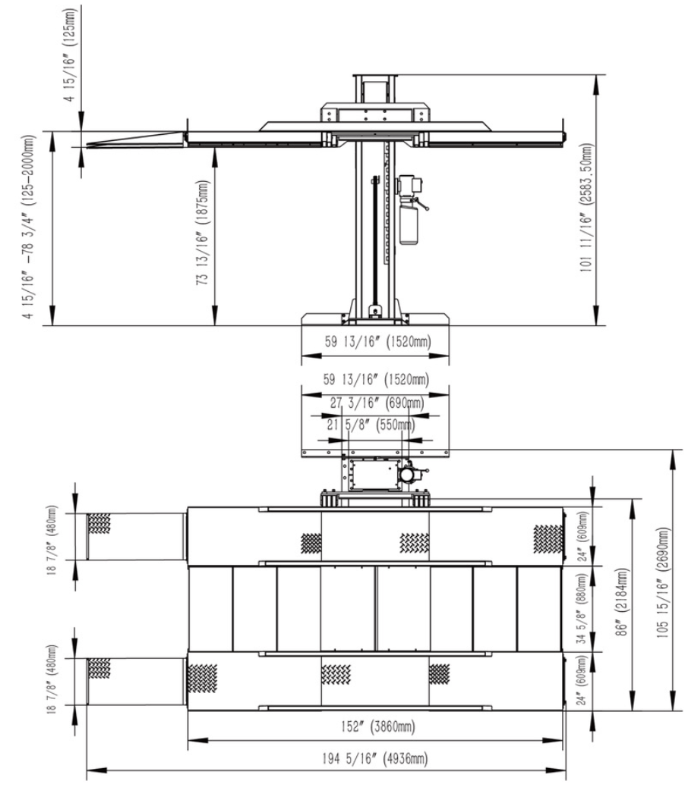

Specifications

 Model  P166M
 Capacity  6,600 LBS
 Max Height  78 13/16" without truck adaptor
 Min Height  4 15/16"
 Lifting Time  ~60S
 Lowering Time  ~50S
 Motor Power  3HP, 2.2Kw
 Platform Length  152"/3860mm
 Platform Width  24"/609mm
 Rated Frequency  60 HZ
 Column Thickness Steel  5.5MM
 Carriage Thickness Steel  5.5MM
 Shipping Weight  2753 LBS
 Shipping Size  154" L x 30" W x 39" H




*Important Notes

1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.

Downloads

pdf.jpg Manual

pdf.jpgBrochure

Warranty Information

  • 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
  • Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
