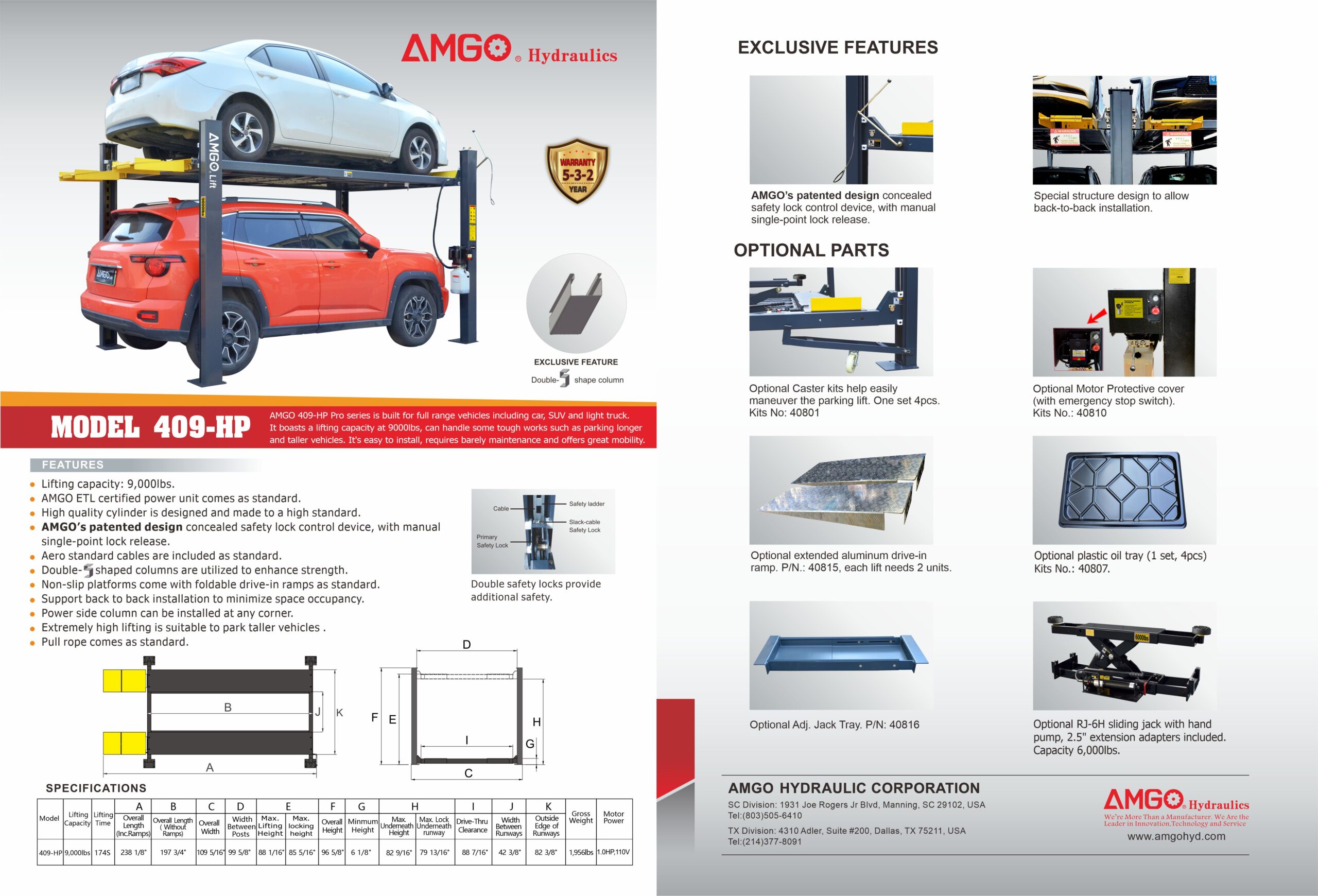

AMGO Hydraulics 409-HP 9000 Lbs 4-Post Lift
AMGO 409-HP Pro series is built for full range vehicles including car, SUV and light truck. It boasts a lifting capacity at 9000lbs, can handle some tough works such as parking longer and taller vehicles. It’s easy to install, requires barely maintenance and offers great mobility.
Features
- AMGO ETL certified power unit comes as standard.
- High quality cylinder is designed and made to a high standard.
- AMGO’s patented design concealed safety lock control device, with manual single-point lock release.
- Aero standard cables are included as standard.
- Double shaped columns are utilized to enhance strength.
- Non-slip platforms come with foldable drive-in ramps as standard.
- Support back to back installation to minimize space occupancy.
- Power side column can be installed at any corner.
- Extremely high lifting is suitable to park taller vehicles.
- Pull rope comes as standard.

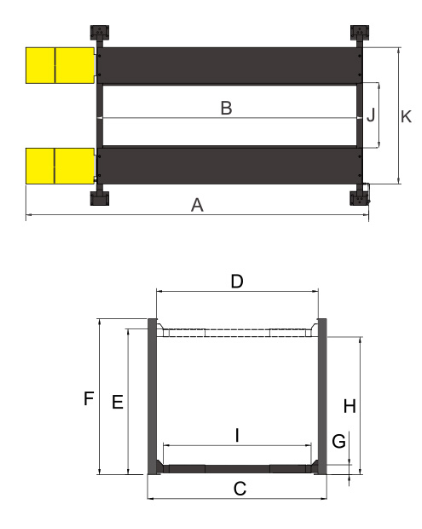

Specifications
| Model | 409-HP | |
| Lifting Capacity | 9,000 lbs | |
| Lifting Time | 143s(110V) / 57s(220V) | |
| Overall Length (Inc Ramps) | A | 238 1/8" |
| Outside edge of crossbeams | B | 197 3/4" |
| Overall Width | C | 119 1/8" |
| Width Between Posts | D | 109 7/16" |
| Max.Lifting Height | E | 87 11/16" |
| Max locking height | 84 1/2" | |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 6 1/16" |
| Max.Underneath Height | H | 82 15/16" |
| Max. Lock Underneath runway | 79 13/16" | |
| Drive-Thru Clearance | I | 98 1/4" |
| Width Between Runways | J | 42 3/8" |
| Outside Edge of Runways | K | 82 3/8" |
| Gross Weight | 1,984lbs | |
| Motor | 1.0HP 110V/60Hz; 2.HP 220V/60Hz | |
Downloads
General Warranty
Any items received that fall into the warranty category, (inoperable, or manufacturer’s defect) should be handled under manufacturer’s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
- Steel Structure Components (including columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five(5) Years
- Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three(3) Years.
- Other Parts(not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two(2) Years.
Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer’s responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
It is the customer’s responsibility to inspect shipment at time of delivery and refuse shipment if damaged. You have the right to inspect package regardless of what the truck driver says. If item appears to not be damaged, but looks as if there is a possibility of damage, customer should make a note of it on the acceptance slip when signing for shipment. If an item has been damaged during shipment and customer has already accepted / received shipment, it is customer’s responsibility to file a claim with the shipping company. Customer must notify freight carrier and AMGO Hydraulic Corporation within 48 hours of any hidden freight damage. Customer must open all packages within 48 hours of receiving and inventory equipment to verify product was received complete and notify us within 48 hours if there are any problems or missing parts.
We incur many costs when processing and shipping orders. If the order is cancelled before the item has shipped, but after payment has been processed, we will credit customer minus a 3% merchant processing fee. This is a fee that merchant accounts charge on every transaction and is non-refundable. Customers will be charged for shipping costs for any orders that are canceled after item has already shipped, but not yet received by customer. They may also be responsible for a restocking fee.
Warranty procedure:
In order to start a warranty claim, you need fill out completely (including date of purchase) the warranty card attached below, and then send it to technical.support@amgohyd.com. If this information is not provided, the factory will not support the claim.
Click here to download the warranty card
If you have any questions about warranty information, please contact us at 800-562-4791.
