BendPak 20AP 20,000 Lbs Clearfloor Heavy Duty 2-Post Lift

The 20AP offers unmatched versatility with the convenience of wide or narrow installation options, all packaged into one compact package. This dependable car lift features an expandable top beam and Bi-Metric swing arms to accommodate a wide variety of vehicle lifting requirements, whether you need to lift symmetrically or asymmetrically. With its simple yet sophisticated design, it minimizes service and maintenance costs, delivering lower operating expenses and heightened productivity.

Features

• 20,000-lb. lifting capacity.
• Durable powder coat finish.
• Expandable top beam accommodates wide or narrow drive-thru configurations.
• Double-telescoping screw pads offer increased versatility.
• Padded overhead safety shutoff bar.
• Single-point safety release.
• Drop-end arms provide a lower pad height.
• Dual hydraulic direct-drive cylinders.
• Electric / hydraulic HVLP power system.
• Self-lubricating dura-glide UHMW polyethylene bearing system.
• Automatic arm restraints withstand over 2000-pounds of side force.
• Oversized cable sheave diameter reduces cable fatigue.
• ALI Certified.

Specifications

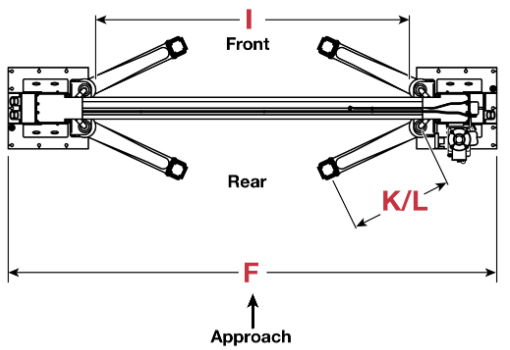

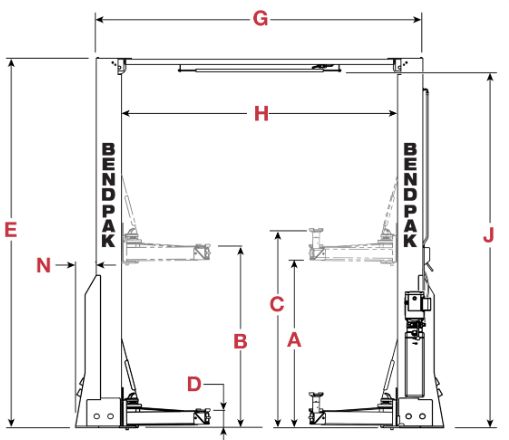

Model   20AP  Lifting Capacity  20,000 lbs. / 9,072 kg  A - Max. Rise (no Safety Lock engaged)  76.5 in. (1,943 mm)  B1 - Max. Lifting Height w/ Pad (Top Lock)  82.75 in. (2,103 mm)  B2 - Max. Lifting Height w/Pad (no Lock)  83.25 in. (2,114 mm)  C - Max. Lifting Height w/Adapters (Top Lock)  90.25 in. (2,292 mm)  D - Min. Height w/ Pad  8 in. (206 mm)  E - Overall Height  169 in. (4,294 mm)  F - Width Overall  168 in. (4,267 mm)  G - Outside Posts  149 in. (3,785 mm)  H - Inside Posts  126 in. (3,199 mm)  I - Drive-Thru Width  107.75 in. (2,742 mm)  J - Floor to Top Switch  162.5 in.(4,128 mm)  K - Lift Arm Reach (min. - max.)  35 in. to 62 in.  (893 mm to 1,575 mm)  L - Base Plate Width  28 in. (710 mm)  M - Post to Base Plate  9.5 in. (241 mm)  Time to Full Rise  ≈ 79 seconds  Operating Pressure at Maximum Load  2,647 psi  Max. load per Lift Arm  5,000 lbs. / 2,268 kg  Motor / Sound   220 VAC, 60 Hz, 1 Phase / <70 dB

*Specifications subject to change without notice
