iDEAL PSB-AFCF23B Cross Flow Paint Booth

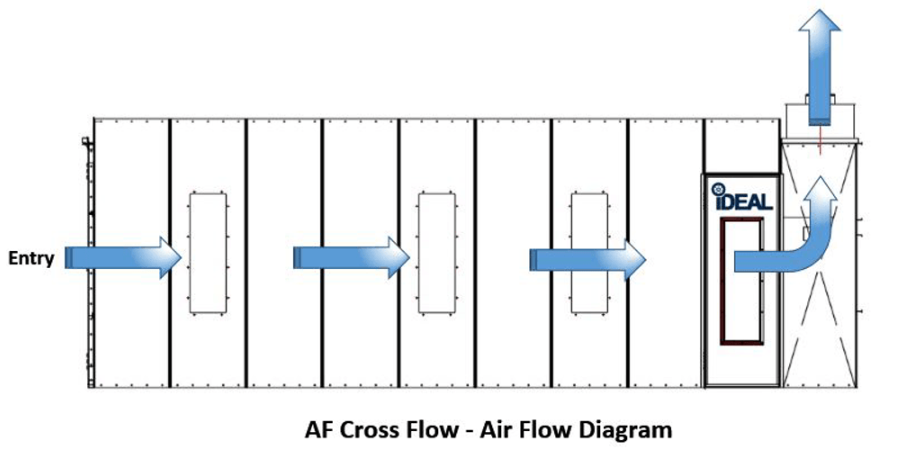

The iDEAL ‘A-Frame’ Cross Flow Paint Spray Booth is an economic, commercial grade paint spray booth designed to provide superior lighting with optimal ‘cross draft’ air flow to produce a high-quality paint finish in a safe & controlled ventilated work area. The iDEAL Cross Flow Paint Booth is great for small to mid-sized Automobiles, along with being an ideal solution for Industrial or Wood finishing applications. The exhaust fan draws clean filtered air through the front entry door’s intake filters and flows towards the rear of the booth into the filtered exhaust chamber, and then discharged upwards through exhaust fan & ducting. The included bright white powder-coat finish, deluxe control panel, premium filters & high-quality tube-axial exhaust fan complete the package for a premium, high quality Paint Spray Booth, all at a great value!


  • iDeal stocks booths and typically ship within 48 hours.
  • Heavy duty precision punched 18 Gauge panel construction.
  • Optimal Cross Draft air flow W/ CFM 9,500 @.5 Static Pressure
  • Tilt panel design for optimal lightinh coverage
  • Inside Dimensions: 22′ 6″ L X 12′ W X 8′ 6″ H
  • Convenient 5/16″  Bolt & Nut Assembly
  • Deluxe Control Panel – Included
  • Bright White Powder Coat Panel  Finish – (Inside & Outside)
  • Manometer, Solenoid Valve, Hardware and Sealant Included.
  • Ul Listed dayton 24″ Tube-Axial Exhaust fan W/ Spark resistant fan blades
  • NEMA rated 3HP – 3 Phase – 230/460VAC-60Hz motors standard
  • Premium AFC intake and exhaust filters
  • (6ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
  • (24ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length
  • Double Entry Doors w/ shutoff switches
  • Personnel Door w/ viewing window & shutoff switch
  • Meets And/Or Exceeds all applicable osha & NFPA 33 Regulations
  • Easy to install, Operate & Maintain


Inside Dimensions 22′-6″L X 13’W X 8′-6″H
Outside Dimensions 25′-4″L X 13′-4″W X 8′-10″H
Fan / Motor 24″ Tube Axial Fan
Non-Spark, NEMA Rated
CFM 9,500 @ .5 Static Pressure
Lighting 6 Each T-8 / 4 Bulb Light Fixtures

1 Phase Electrical Configuration

8′ Exhaust Duck Kit (25" Diameter)

LED Lighting Upgrade Kit
