JMC Equipment 2P9BP 2-Post Lift

JMC Equipment 2P9BP 2-Post Lift

Features

• Screw type lifting pads with 50 mm Dia adaptors for standard configuration.
• Updated new arm lock is equipped with precise gears and self-release design which is reliable and stable.
• Sliding adaptors as standard configuration, good for various vehicles.
• Maintenance window for easy check and maintenance of carriage lock.
• Equipped with door protectors.
• Professional-class hydraulic cylinder and pump are supplied by USA United Hydraulics company.
• Stiffened low profile floor plate with slots inside for fixing and separating cables and oil hoses.
• Ultra low min height for easy accessing to vehicles.
• Electrical control box for optional.

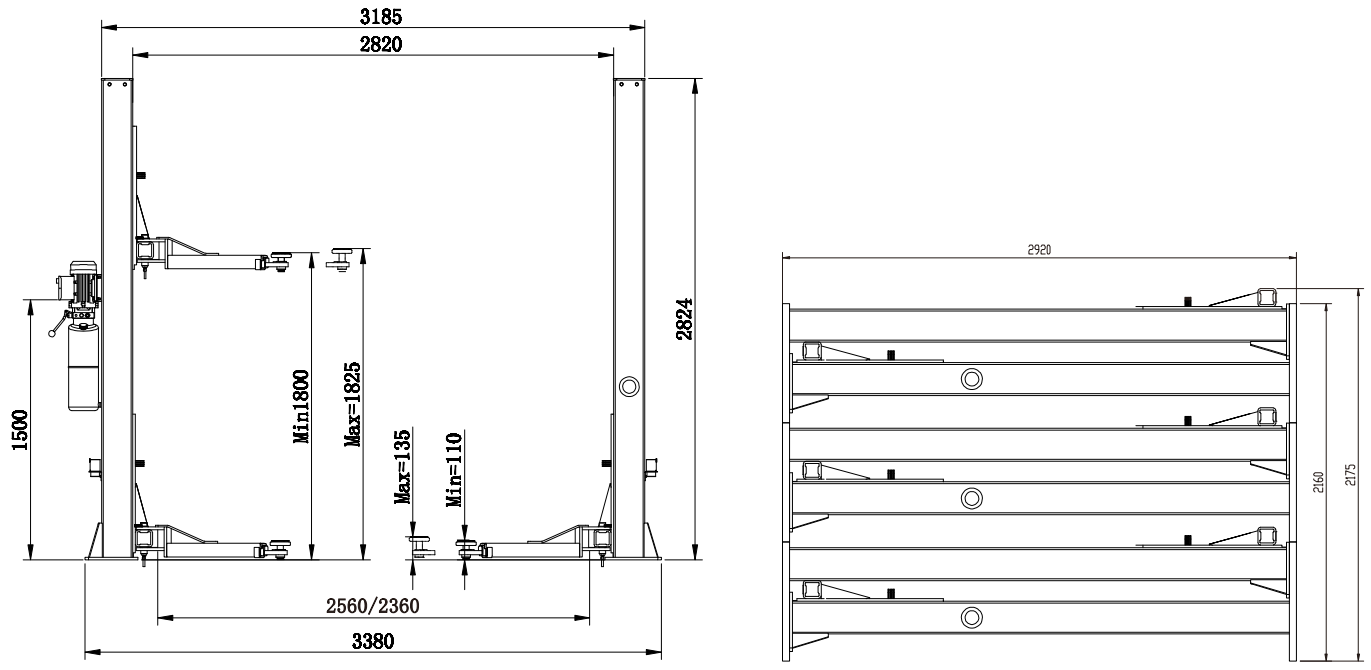

Specifications

Model  2P9BP  Lifting Height  71.85 in (1825 mm)  Overall Height  111.18 in (2824 mm)  Overall Width  133.07 in (3380 mm)  Arm Size  27.79 - 41.18 in (706 – 1046 mm)  Arm Size  32.59 – 48.34 in (828 – 1228 mm)  Pad Height  4.33 in (110 mm)  Width Between Posts  111.02 in (2820 mm)  Lifting Capacity  4.0 Ton
