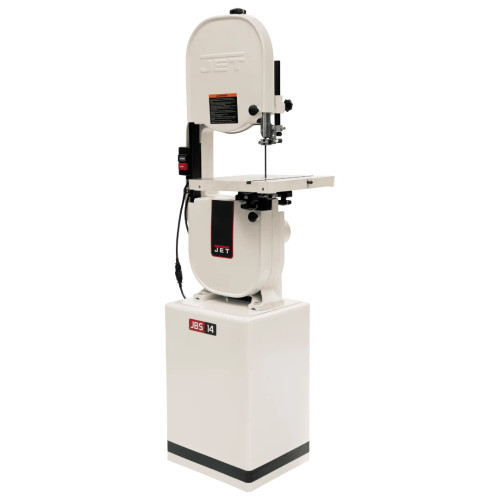

JET Tools 1791216K PWBS-14CS, 14" Bandsaw, 1.5HP 1PH 115/230V
Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
Features
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included).
- Carter quick tension lever speeds blade changes and the detention setting extends blade life during non-use.
- Chip blower ensures a clean, visible cut line.
- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction.
- Easy to read tensioning gauge settings indicated in "blade width" increments.
- Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment.
- Includes 6" riser block.
- Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel.
- Rigid one-piece welded stand requires no assembly.
- Upper and lower dual ball bearing guides for accurate cuts.
Specifications
| Stock Number | JT-1791216K |
| Band Saw Size/Wheel Diameter (In.) | 14 |
| Blade Length (In.) | 93-1/2 |
| Blade Speed (SFPM) | 3000 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Model Number | PWBS-14CS |
| Motor Power (HP) | 1.5 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | None |
| Recommended Circuit Size (Amps.) | 30/20 |
| Table Height from Floor (In.) | 44 |
| Table Tilt (Deg.) | 45 Right / 10 Left |
WARNING: Cancer and Reproductive Harm
WARRANTY INFORMATION
JET RED ASSURANCE 2-YEAR WARRANTY
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET Tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
