Stratus SAE-F14X Extra Wide Floor Plate 14000 lbs Capacity Single Point Manual Release Lift

SKU: SAE-F14X
$7,699.00
$9,239.00
(You save $1,540.00 )

Adding to cart… The item has been added
SKU:
SAE-F14X
Condition:
New
Availability:
Call us up for details!
Width:
30.00 (in)
Height:
36.00 (in)
Depth:
44.00 (in)
Shipping:
Free Shipping
Capacity:
14,000 Lbs
Free Shipping:
Yes

Stratus SAE-F14X Extra Wide Floor Plate 14000 lbs Capacity Single Point Manual Release Lift

Features

  • Base plate / Open top.
  • Single point manual release.
  • Top limiter switch.
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity.
  • Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004).

Standard Accessories (Included)

  • 4pcs Screw-up rubber pads - Peg 60mm (2 5/16").
  • 4pcs 4" Truck Adaptors - Peg 60mm (2 5/16").

Optional accessories (Sold Separately)

  • Cradle pads (Peg 60mm).
  • Tripod jack stand.

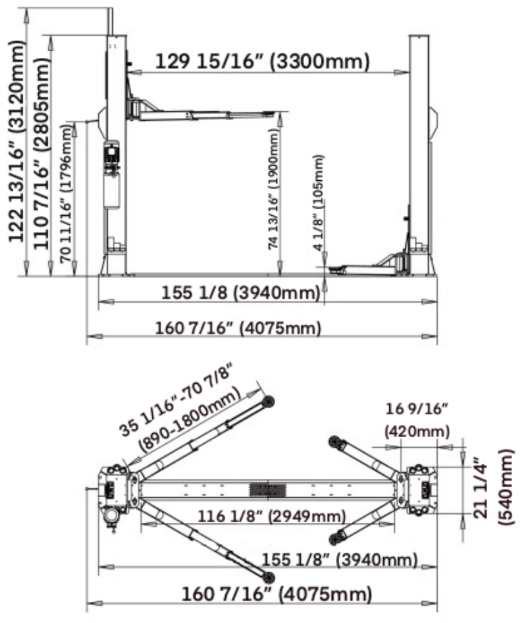

Technical Specification

 Model  F14X
 Capacity  14,000 LBS
 Max Lifting Height with Adaptors  78  13/16" (2002 MM)
 Min Lifting Height with Adaptors  8  1/8" (207 MM)
 Max Lifting without Adaptors  74  13 /16" ( 1900 MM)
 Min Lifting without Adaptors  4  1/8" (105 MM)
 Rise Time  -55 SEC
 Overall Height  122  13/16" (3120 MM)
 Overall Width  21  1/4" (540 MM)
 Overall Length  160  7/16" (4075 MM)
 Inside Columns  129  15 /16" (3300 MM)
 Drive Thru  116  1/8" (2949 MM)
 Front Arm Reach Max  70  7/8" (1800 MM)
 Front Arm Reach Min  35  1/16" (890 MM)
 Rear Arm Reach Max  70  7/8" (1800 MM)
 Rear Arm Reach Min  35  1/16" (890 MM)
 Motor  4 HP, 220V, 60 HZ, 1PH
 Oil  AW32 or AW46
 Breaker  30A
 Weight  2,125 LBS
 Dimension  111" L * 42" W * 27" H
 Requirements  6" - 3000 PSI



*Important Notes

1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.

Downloads

pdf.jpg Manual

pdf.jpg Flyer

Warranty Information

  • 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
  • Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
