BendPak HDS-27X 27,000-lb. Capacity Extended Length 4 Post Lift
Some vehicles at the 27,000-lb. lift capacity begin to develop monstrous proportions. Garage trucks, for instance, are wide, tall and feature wide wheelbases. You need a truck lift that can handle all those dimensions, plus the weight, without fail. The super-long HDS-27X may be the better option for your shop. Just be sure to discuss your service needs with a trained BendPak service representative if you need help deciding which 27K four-post lift is right for you.
Features
- 27,000-lb. lifting capacity.
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493.
- Supersized 12" diameter cable sheaves.
- Galvanized lifting cables.
- Grease nipples.
- Single hydraulic under-runway cylinder.
- Integrated flow restrictor.
- Durable powder coat.
- Spring-loaded safety locks.
- Second lock system on constant guard.
- Fully enclosed lifting cables.
- Multiple adjustable height locking positions.
- Maintenance-free electric hydraulic power system.
- Conveniently positioned operator controls.
- 12" x 12" base plates.
- Optional rolling jacks.
Specifications

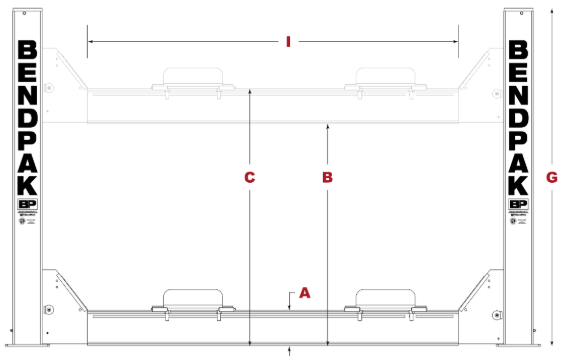

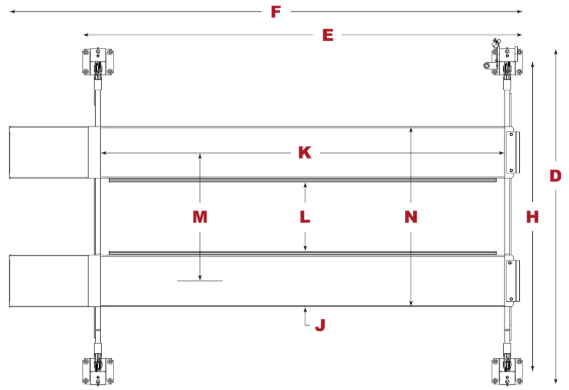

| MODEL | HDS-27X |
| Lifting Capacity | 27,000 lbs. / 12,247 Kg |
| Max Capacity / Front Axle | 13,500 lbs. / 6,124 Kg. |
| Max Capacity / Rear Axle | 13,500 lbs. / 6,124 Kg. |
| A -Overall Width | 153-1/2” / 3899 mm |
| B -Outside Length | 317” / 8052 mm |
| C -Overall Length | 376-3/4” / 9569 mm |
| D -Height of Columns | 91-1/4” / 2318 mm |
| E -Min. Runway Height | 9-1/2” / 240 mm |
| F -Max. Rise | 60” / 1524 mm |
| G -Max. Lifting Height | 69-1/2” / 1764 mm |
| H -Width Between Columns | 133-1/2” / 3391 mm |
| I -Runway Width | 22” / 559 mm |
| J -Width Between Runways MIN | 40” / 1016 mm |
| J -Width Between Runways MAX | 45-1/4” / 1149 mm |
| K -Runway Centerline MIN | 67” / 1702 mm |
| K -Runway Centerline MAX | 72-1/4” / 1835 mm |
| L -Outside Edge of Runways MIN | 89” / 2261 mm |
| L -Outside Edge of Runways MAX | 94-1/4” / 2394 mm |
| M -Drive-Thru-Clearance | 109” / 2769 mm |
| N -Length of Runways | 318-3/4” / 8098 mm |
| Min. Wheelbase @ Rated Capacity | 230” / 5842 mm |
| Min. Wheelbase @ 75% Capacity | 195” / 4953 mm |
| Min. Wheelbase @ 50% Capacity | 165” / 4191 mm |
| Min. Wheelbase @ 25% Capacity | 130” / 3302 mm |
| Locking Positions | 13 |
| Lock Spacing | Every 4” / 100 mm |
| Lifting Time | 75 Seconds |
| Standard Motor | 220 VAC / 60 Hz. 1Ph |
*The design, material, and specifications are subject to change without notice.
