BendPak PL6000DCX 2 Post Lift 6000 Lb

BendPak PL6000DCX 2 Post Lift 6,000 Lb

The PL-6000DCX is a game-changing two-post parking lift sporting an impressive 6,000-lb. lifting capacity. This innovative lift is designed for seamless integration, featuring shared columns that maximize your space efficiency, allowing you to fit more units in a smaller area. Whether you need to install it indoors or outdoors, the PL-6000DCX delivers unmatched versatility and convenience. This lift is your ultimate solution for efficient and secure vehicle storage.

Features

• Ganged column design allows multiple installations in a minimum space.
• Commercial grade design and construction.
• Galvanized and corrugated anti-slip platform.
• Freestanding design.
• Overhead power unit provides smooth quiet hydraulic operation.
• Designed for installation on concrete surfaces.
• Platform can be stopped at different heights to fit various vehicles and ceiling heights.
• Full width channel-locked center panels protect lower vehicle.
• Wide deck platform accommodates pickups, vans, and cars.
• Single dual telescoping direct-drive cylinder.
• Manual safety lock holds platforms securely in place.
• Maintenance free composite carriage bearings.
• Electric key switch for security and safety.
• Automatic shut-off when operator releases key switch.
• Manual safety lock release.
• Hydraulic overloading protection.

Specifications

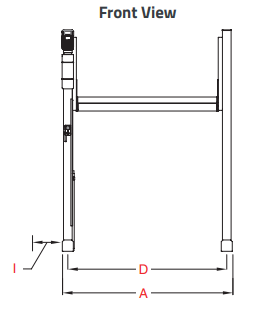

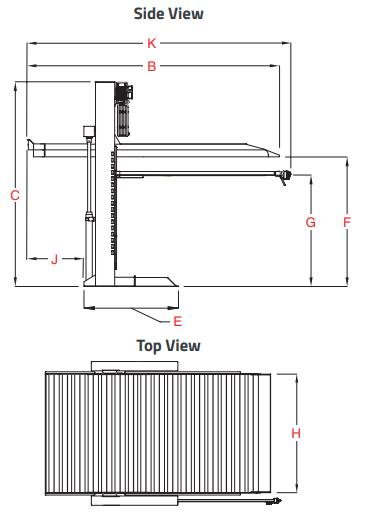

Model  PL6000DCX  Lifting Capacity  6,000 lbs. (2,700 kg) A  Total Width  112 in. (2,847 mm) B  Lift Platform Length  157 in. (3,990 mm) C  Post Height  131 in. (3,320 mm) D  Post, Center to Center Width  105.5 in. (2,682 mm) E  Post Support Length  60.25 in. (1,532 mm) F  Lifting Height  82.5 in. (2,100 mm) G  Control Column Height  71 in. (1,805 mm) H  Lift Platform (Usable Width)  94.5 in. (2,400 mm) I  Side Clearance Min.  2 in. (50.75 mm) J  Platform to Support  36.25 in. (918.25 mm) K  Length Overall  163.5 in. (4,152.5 mm)  Lifting Time  <50 Seconds  Motor  208-240V, 50/60Hz, 1 Phase, 4 HP, 22 Amps

*Specifications subject to change without notice
