BendPak PL-12000DPS Double Parking Lift 12000 Lb Standard Rise & Short Runways

BendPak PL-12000DPS Double Parking Lift 12000 Lb Standard Rise & Short Runways

BendPak’s PL-12000DPS parking lift offers revolutionary vehicle storage solutions for those challenged with owning more cars and trucks than parking spaces to store them. This lift can greatly expand the number of cars in a facility without expanding building space. As the costs of commercial and residential development increase, gaining additional parking spaces in the same usable space provides instant value. These mechanical parking systems are designed to increase parking density and cut costs over traditional parking methods.

Features

• Dual hydraulic cylinders with heavy-duty galvanized lifting cables.
• Multiple locks for multi-height parked settings.
• Wide baseplates for maximum stability.
• Dual electric-hydraulic power units.
• Heavy-duty steel construction.
• Front and rear wheel chocks.
• 6,000 lb. capacity per side.
• Built-in wheel stops.
• High-speed lifting.
• Standard rise, standard length model - PL-12000DPS.
• Perfect for cars, light trucks, motorcycles, and ATVs.
• Superstructure features durable powder-coat finish.
• Full-width platforms to keep bottom vehicles protected.
• Lightweight, extended aluminum approach ramps can be easily stowed.

Specifications

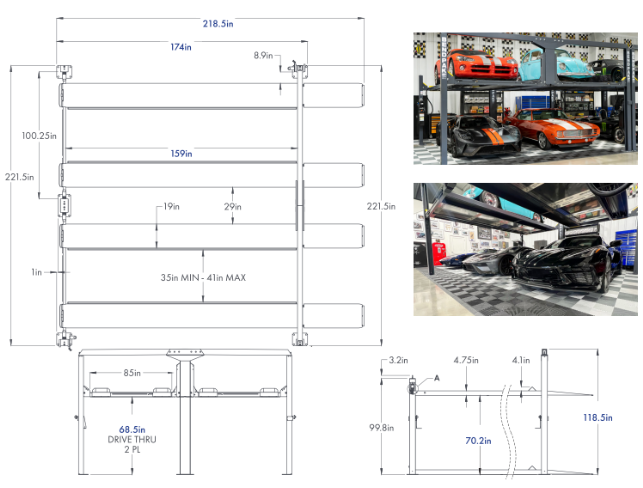

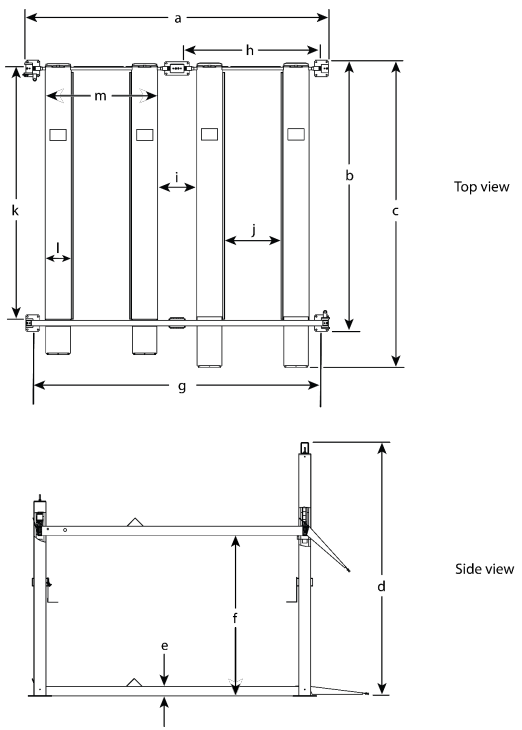

Model  PL-12000DPS  Number of Platforms  2  Load capacity per Platform  6,000 / 2,722 kg A  Total width  221.25 (± 0.125) in. 5,620 (± 3.2) mm B  Outside length  174 in. / 4,418 mm C  Total length  218.5 in. / 5,550.5 mm D  Total height  118.5 in. / 3,009 mm E  Min. runway height  5.00 in. / 127 mm F  Maximum rise  70.2 in. / 1,784 mm G  Width between Posts  211 in. / 5,362 mm H  Width between the short and double posts  100.25 (± 0.125) in. 2,546.5 (± 3.2) mm I  Width between Platforms  29 in. Min. – 41.5 in. Max. 739 mm Min.– 1,055 mm Max J  Width between Runways  35 in. Min. or 41.0 in. Max. 887 mm Min. or 1,045 mm Max. K  Runway length  159.00 in. / 4,039 mm I  Runway Width  19 in. / 482 mm M  Outside edge of Runways  75.75 in. Min. or 82 in. Max. 1,927 mm Min. or 2,085 mm    Max. Load Operating Pressure  2,460 psi  Safety Lock Positions  6  Lifting time  ≈45 seconds  Motor  220 VAC, 50/60 Hz, 1 Ph

*Specifications subject to change without notice

WARNING: California Prop 65

Downloads

 Manual

 Flyer

**Bendpak charges sales tax in California**
***It is the buyer's responsibility to unload the freight at their location.
