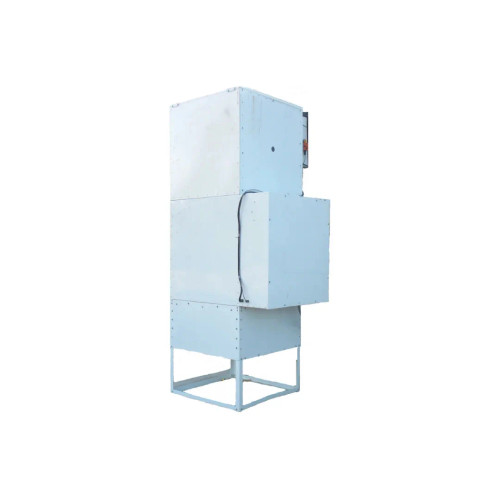

iDEAL RS-1001 Rammstein Booth Heater w/ Filter Stand - 230V - 1 Phase
Direct fired amu heating system. This heater is NOT a carryover from the HVAC industry. The Rammstein Air heaer is designed to perfectly fit the needs of the finishing industry.
Features:
- Easy To Operate & Maintain
- High Quality, Professional Grade Paint Booth Heating
- Operates W/ Natural Gas Or Propane
- Deluxe Control Panel With Hour Meter & Status Messages
- Time Displays For Cycle Time & Elapsed Time
- Variflow Technology
- Exhaust Vfd Fused & Wired
- Vertical/Side Discharge Configuration
- Durable White Powder Coat Panel Finish - (Inside & Outside)
- Vertical Stand, Filter Box & Filters Included
- Single Point Connection With 30' Umbilical Cord
- Interlock Status Indicator Lights
- Standard: 3 Ph Electrical
- Optional: 1 Ph Electrical
- Etl Listed
Specifications:
| AMU Heater Model | RS-1001 – 1 Phase |
| Fuel | NG or LP |
| BTUH | 1.2M |
| Gas Train | 1″ |
| CFM | 13,000 |
| Intake Motor | 230V – 10HP – 3 PH |
| Exhaust VFD | 230V – 10HP – 3PH |
| Blower Motor | NA |
| Heating Element | NA |
| Temperature Rise | NA |
| Ship Weight | 1,395 lbs. |
| PSB Model Usage | Side Down & Semi Down Draft
(Plenum / Canopy Required) |
Downloads
*Tuxedo collects Sales Tax on all orders shipped to California
TUXEDO DISTRIBUTORS LIMITED WARRANTY
Structural Warranty:
The following parts and structural components carry a five year warranty:
Columns, Arms, Uprights, Swivel Pins
Legs, Carriages, Overhead Beam
Tracks, Cross Rails, Top Rail Beam
Limited One-Year Warranty:
Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials orworkmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not beenoperated or maintained according to specifications.
Other Limitations:
This warranty does not cover:
1. Parts needed for normal maintenance
2. Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
3. Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter.
4. On-site labor
Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.
The customer is required to notify Tuxedo of any missing parts within 72 hours. Timely notification must be received to becovered under warranty.
Tuxedo will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.
Tuxedo reserves the right to make improvements and/or design changes to its lifts without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties,expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Tuxedo shall not be liable for loss of use, cost of cover, lost profits, inconvenience,lost time, commercial loss or other incidental or consequential damages.
This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.
Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state.
