AMGO Hydraulics SML-7 7000 Lbs Portable Single Post Lift
Designed for commercial shops and home garages, the AMGO SML-7 delivers high-performance lifting with a 7,000 lbs capacity.Featuring our patented single-handle arm lock release, this fully mobile unit is the ultimate solution for space-saving efficiency.
Features
- Mobile design with a 7,000-lb. lifting capacity.
- AMGO’s patented arm-lock release system provides a seamless, single-handed release operation.
- Patented, easily adjustable AMGO bionic arms for precise positioning at lifting points.
- Drop-in screw-type rubber pad with 2” pin diameter.
- Self-lubricating UHMW polyethylene sliders and bronze bushings.
- AMGO ETL certified power unit.
Specifications

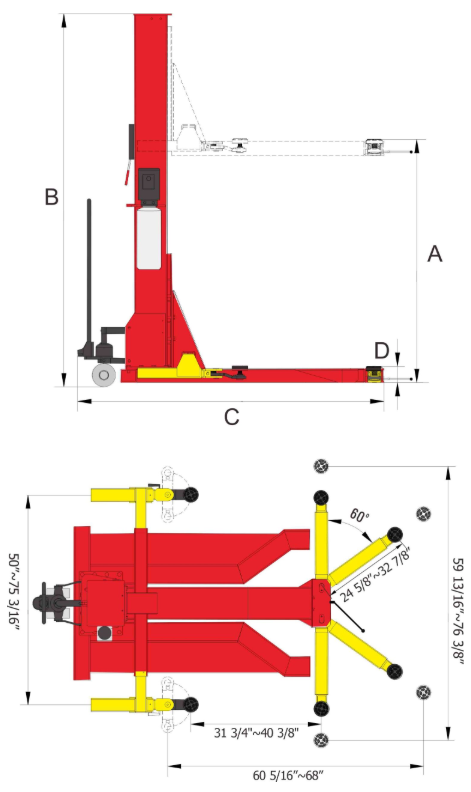

| Model | SML-7 | |
| Lifting Capacity | 7,000 lbs | |
| Lifting Time | 84s | |
| Max. Lifting Height: (w/o extension adapter) | A | 70 13/16" ~ 72 3/4" |
| Max. Lifting Height: (w/ extension adapter) | 72 3/4" ~ 75 11/16" | |
| Max. Lock Height: (w/o extension adapter) | 67 7/16" ~ 69 3/8" | |
| Max. Lock Height: (w/ extension adapter) | 70 7/16” ~ 72 3/8“ | |
| Overall Height | B | 109 7/16" |
| Overall Width | C | 90 3/8 “ |
| Minimum Pad Height | D | 3 5/16" |
| Gross Weight | 1,942 lbs | |
| Motor | 1.0HP, 110V/60Hz | |
Downloads
Warranty information.
AMGO offers one of the best product warranties in the industry from the original factory commercial invoice date in the industry as follows:
1.Steel structure components(including Columns,Carriage,,Lifting Arms, Top Beam, Floor Cover,Platform,Cross Beam,Car Drive-in Ramp, Scissor,baseframe etc.) warranty for five years.
2.Hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.)warranty for two years.
3.Other parts(no including consumption parts such as rubber pad),electrical components, power unit warranty for one year.
Warranty procedure:
In order to start a warranty claim, you need fill out completely (including date of purchase) the warranty card attached below, and then send it to technical.support@amgohyd.com. If this information is not provided, the factory will not support the claim.
Click here to download the warranty card
