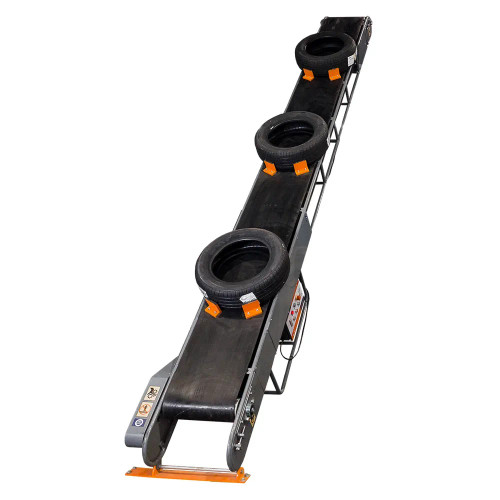

Martins Industries TC-24 24' Tire Conveyor With Two Controls & Motor Brake
Increase your tire handling productivity with the plug & play tire conveyor. Its raised base, firmly anchored to the ground, provides ergonomic working height and therefore prevents injuries from handling tires, wheels and tire/wheel assemblies. Two control boxes are at arms reach at the bottom and top of the conveyor; the latter is supplied with a power cable which allows it to be installed anywhere in your tire warehouse or shop within a radius of 10’. Powered by a 2 HP motor with magnetic brakes, the floor-to-floor 24’ Tire conveyor will maintain your passenger car, SUV & light truck tires perfectly still when stopped.
Features
- Speed up tire handling up to and down from your mezzanine at a rhythm as fast as 12 tires per minute.
- Tough enough for all your tire/wheel assemblies—Heavy duty rubber belt that can support up to 500 lb.
- Angled PVC cleats for a maximum stability of your passenger car, SUV & light truck tires on the conveyor.
- Control box at both ends of the tire conveyor — On, Off, Reverse & Emergency stop.
- Requires no maintenance with its sealed precision ball bearing.
Included
- Rubber belt - 2 ply (3/8”)
- PVC cleats.
- Main control box.
- Secondary control box with 10’ power cable.
- 2 HP motor with magnetic brakes.
- User manual.
Specifications
| Controls | On / Off / Reverse / Emergency stop at each end |
| Certifications | CE, cETLus, UKCA, CSA Z432-16 |
| Product dimensions - L x W x H (inches) | 288 x 29 1/2 x 11 |
| Load capacity (lb) | 500 |
| Net weight (lb) | 957 |
| Speed (m/min) | 17.7 |
| Distance between cleats center-to-center (inches) | 60 |
| Belt material | Rubber |
| Belt width (inches) | 18 |
| Belt thickness (inches) | 3/8 |
| Bearing type | Sealed precision ball bearing (no maintenance) |
| Energy type | Electricity |
| Motor (HP) | 2.0000 |
| Amp | 12 |
| Hertz | 60 |
| Phase | 1.0000 |
| Volt | 230 |
| Watts | 1500 |
| Materials | Steel |
| Finish | Powder coated paint UV resistant - Never loses is luster |
| Color | Grey and orange |
| Gross weight (lb) | 1323 |
| Package dimensions - L x W x H (inches) | 305 x 38 x 40 |
Downloads
LIMITED PRODUCT WARRANTY
Martins Industries warrants to the original purchaser that its products are free from defects in material and workmanship. This coverage is valid for a period of 6 months to 3 years, depending on the product, starting from the billing date. The warranty will be voided if the product has sustained damage due to misuse, improper assembly, poor maintenance, any accident or any non-authorized modifications / repairs.
If you any other doubts please contact us at 800-562-4791.
