Stratus SAE-MS9000X Extra Wide Commercial Grade Open Center Portable Mid Rise Electric Safety Lock Release Scissor
Features
- Available in 110V or 220V control unit.
- Including 9 lock positions.
- Dual cylinder structure with anti-surge valves.
- Power unit with built-in 24V low voltage control system.
- Self-lubricated bushing and bearing.
- Safety Lock Fail Protection.
Technical Specification
Model |
MS9000X |
Capacity |
9,000 LBS |

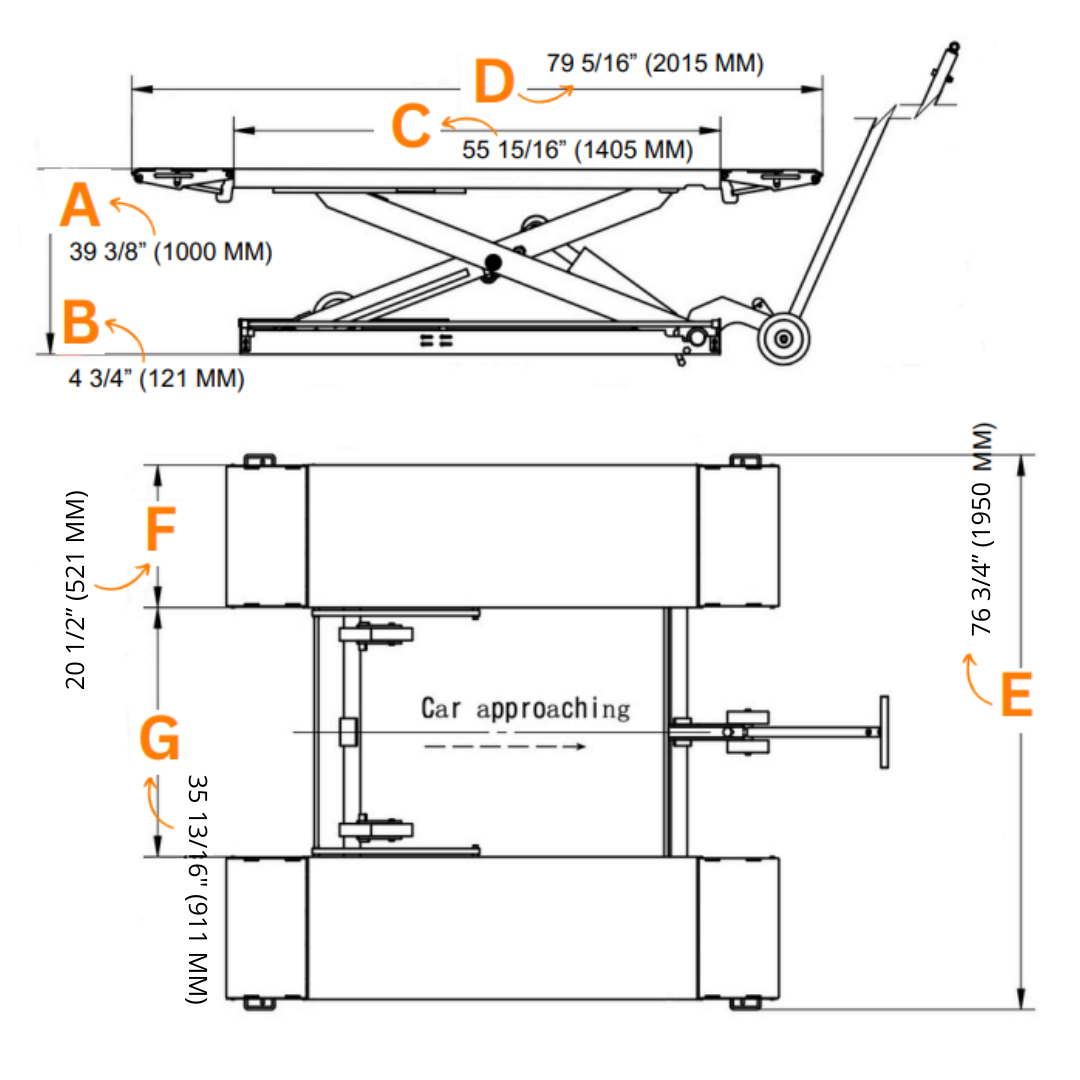

Max Height - A |
39 3/8” (1000 MM) |
Min Height - B |
4 3/4” (121 MM) |
Platform Length without Ramps - C |
55 15/16” (1405 MM) |
Platform Length with Ramps - D |
79 5/16” (2015 MM) |
Overall Width - E |
84 11/16” (2151 MM) |
Platform Width - F |
20 7/16” (519 MM) |
Width Between Platform - G |
35 7/8” (911 MM) |
Motor |
3 HP, 110v / 220V, 60 HZ, 1ph |
Oil |
AW32 or AW46 |
Breaker |
30A |
Platform Shipping Weight |
1,318 LBS |
Platform Shipping Dimension |
79” L * 63” W * 11” H |
Control Panel Weight |
132 LBS |
Control Panel Dimension |
38” L * 16” W * 20” H |
|
|
 |
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
