Stratus SAE-LT2600E Lifting Table, 2,600 lbs capacity, Remote controlled
Limited Access Zones
Features
- Reinforced scissor arms.
- 220V control unit.
- Remote control to operation.
- Middle self-locking safety.
- The cable can be side slid in all directions, which is convenient for screw alignment during disassembly and assembly.
- The table is equipped with 6 rubber pads, which is convenient for battery transfer.
- Including 5 lock positions, platform raise 9" - 11 7/16" (230mm-290mm) when raising each lock position.
- Platform is 30 11/16" (780mm) from ground when lift raises to the 1st lock position.
- Powder coating finish: Granite Grey (RAL 7026) + Reinorange (RAL 2004)
Specifications
| Model | LT2600 |
| Lifting Capacity | 2,600 LBS |
| Lifting Time | 50 SEC |

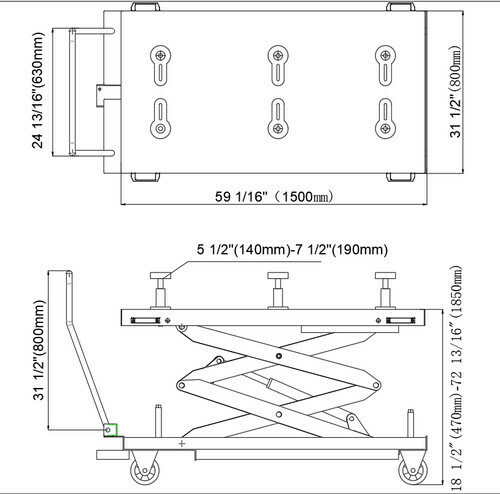

| Lifting height | 72 13/16” |
| Overall Length | 59 1/16” (1500 mm) |
| Overall Width | 31 ½” (800 mm) |
| Minimum Height | 18 ½” (470 mm) |
| Shipping Weight | 1,676 LBS |
| Motor | 3 HP, 220V, 60 HZ, 1ph |
| Shipping Dimension | 101" L * 41" W * 36" H |
*Important Notes
1. A $250 surcharge apply to shipping in the following states: OR, WA, ID, MT, ND, SD, ME.
2. The buyer is always responsible for unloading the product from the truck, a forklift or similar equipment is required for unloading.
3. Discounts provided for pickups in College Station, Texas Warehouse.
Downloads
Warranty Information
- 5 years lifting structure, 3 years hydraulic, and 2 years electrical.
- Note: Parts only and labor costs for someone to install the replacement part are NOT covered. The hydraulic cylinders come with a 30-day full warranty and after 30 days we will provide a seal kit.
